Wastewater/Activity/PacpInspection/1.0Jun 6, 2019, 06:13 AM
9_1_1_05062019_232026.mp4
- Date
- 06/05/2019
- W/O
- 766504
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00578
- PipeID
- P18507
- Time
- 11:13 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6552
- Sewer Name
- 14 TRUNK "B"
- City
- LANCASTER
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_766504_TV14019_MAY2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 0423
- Downstream MH
- 14 0422
- Dir. of Survey
- Downstream
- Length Surveyed
- 150.1 ft.
- Total Length
- 150.1 ft.
- Structural Index
- 3
- Structural Quick
- 3E2E
- Structural Rating
- 145
- O&M Index
- 2
- O&M Quick
- 412E
- O&M Rating
- 62
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 207
Observation photos (3)

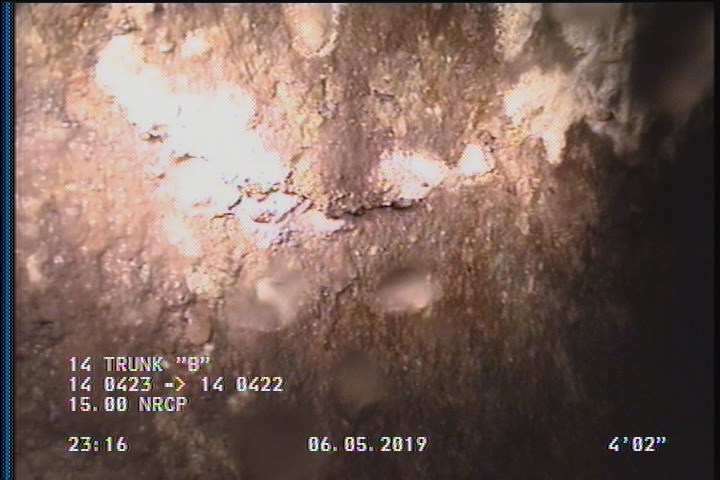

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

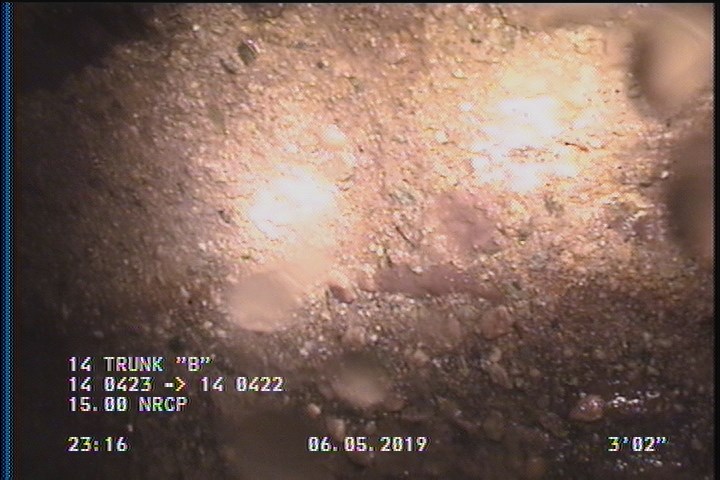

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

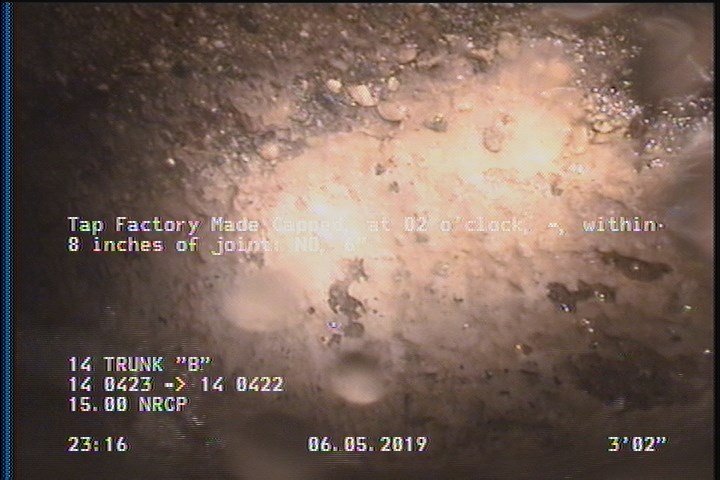

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 76.5 | TFC | — |
| 2 | SSS | — |
| 0 | MWM | — |
| 0 | AMH | 14 0423 |
| 3.2 | TFC | — |
| 150.1 | AMH | 14 0422 |
| 52.4 | TFC | — |
| 100.6 | TFC | — |
| 148.7 | SSS | — |
| 148.7 | DAGS | — |
| 148.7 | SAP | — |
| 0 | MWL | — |
| 2 | SAP | — |
| 2 | DAGS | — |
| 27.6 | TFC | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 129 | TFC | — |
Properties (6)
- additional_info
- SC378167
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-06-05T23:13:11-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
