Wastewater/Activity/PacpInspection/1.0Jun 5, 2019, 05:26 AM
22_1_1_04062019_223208.mp4
- Date
- 06/04/2019
- W/O
- 766504
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00578
- PipeID
- P18519
- Time
- 10:26 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6551
- Sewer Name
- 14 TRUNK "B"
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_766504_TV14019_MAY2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 0433A
- Downstream MH
- 14 0433
- Dir. of Survey
- Downstream
- Length Surveyed
- 94.2 ft.
- Total Length
- 94.2 ft.
- Structural Index
- 3
- Structural Quick
- 3C2C
- Structural Rating
- 90
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 36
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 126
Observation photos (3)

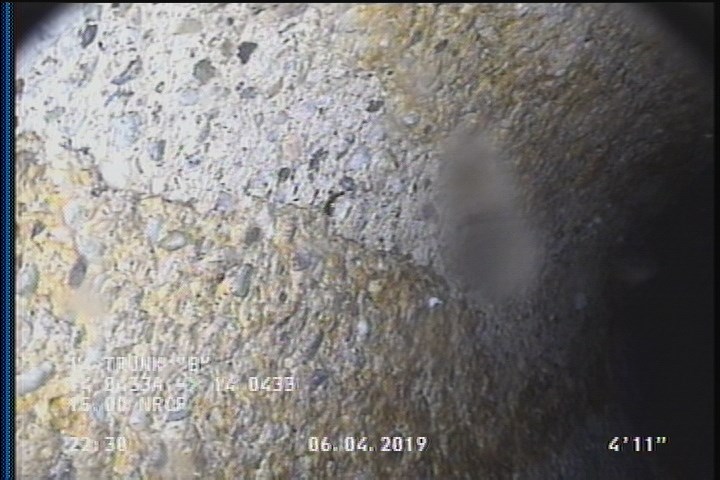

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

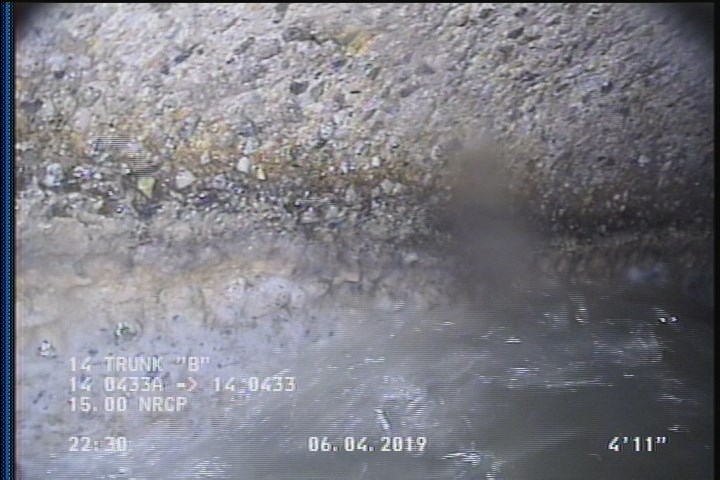

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

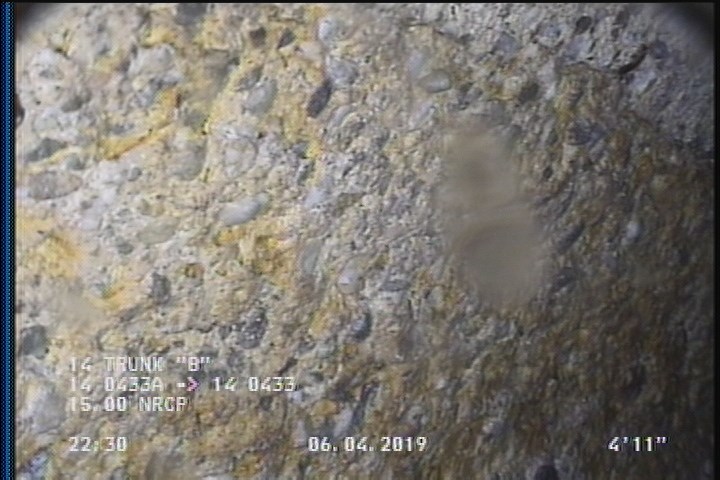

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 33.2 | TFC | — |
| 58 | TFC | — |
| 9.3 | TFC | — |
| 94.2 | AMH | 14 0433 |
| 91.5 | SAP | — |
| 80.6 | TFC | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | AMH | 14 0433A |
| 2 | SSS | — |
| 0 | MWM | — |
| 2 | DAGS | — |
| 91.5 | DAGS | — |
| 91.5 | SSS | — |
| 0 | MWL | — |
| 2 | SAP | — |
Properties (6)
- additional_info
- SC378166
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-06-04T22:26:59-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
