Wastewater/Activity/PacpInspection/1.0May 16, 2019, 06:14 AM
1_1_1_15052019_231720.mp4
- Date
- 05/15/2019
- W/O
- 761347
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00627
- PipeID
- P12152
- Time
- 11:14 PM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6550
- Sewer Name
- 15 SAN JOSE CREEK TRUNK
- City
- INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_761347_TV15207_APR2019
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- 15 0230
- Downstream MH
- 15 0229
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 4
- O&M Quick
- 5121
- O&M Rating
- 7
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (2)

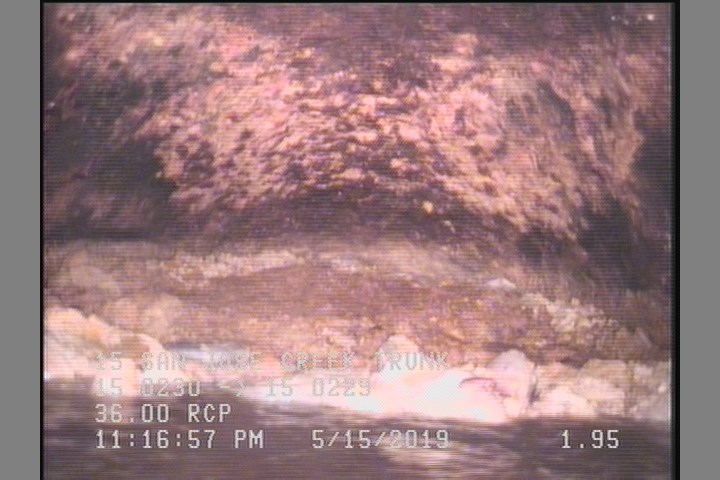

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

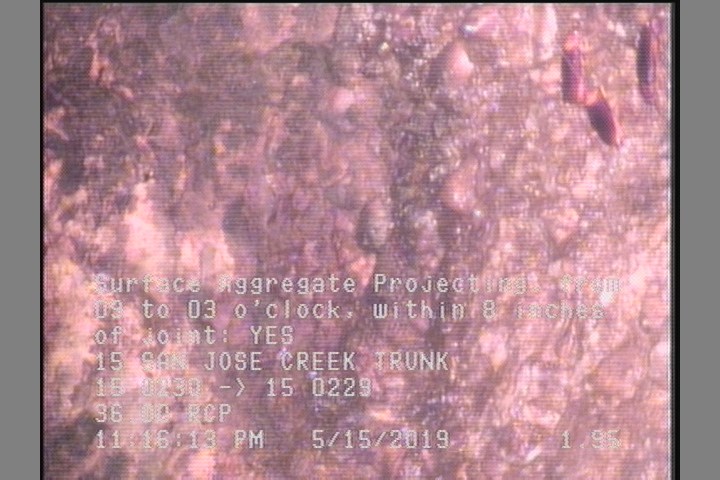

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | VIEW OF THE DOWNLEG PIPE FROM THE U/S SIDE OF THE |
| 2 | DAGS | — |
| 0 | AMH | 15 0230 |
| 2 | SAP | — |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-05-15T23:14:02-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
