Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 22, 2019, 04:35 AM

  • 7_1_1_21052019_214800.mp4

Date
05/21/2019
W/O
761332
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00209
PipeID
P00769
Time
9:35 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6534
Sewer Name
01 HOOPER AVENUE-COMPTON CREEK TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
WO_761332_TV01245_APR2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
01 0019A
Downstream MH
01 0019
Dir. of Survey
Downstream
Length Surveyed
375.1 ft.
Total Length
375.1 ft.
Structural Index
4
Structural Quick
4N00
Structural Rating
296
O&M Index
2
O&M Quick
2N00
O&M Rating
148
Overall Index
3
Overall Quick
—
Overall Rating
444
Pipe schematic from manhole 01 0019A to 01 0019
MH: 01 0019AMH: 01 0019downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 0019A0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 5 %of cross sectional area2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start369.6 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish371.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish371.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE375.1 ft. AMH - Downstream Manhole, Survey Ends - 01 0019375.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK375.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK

Observation photos (4)

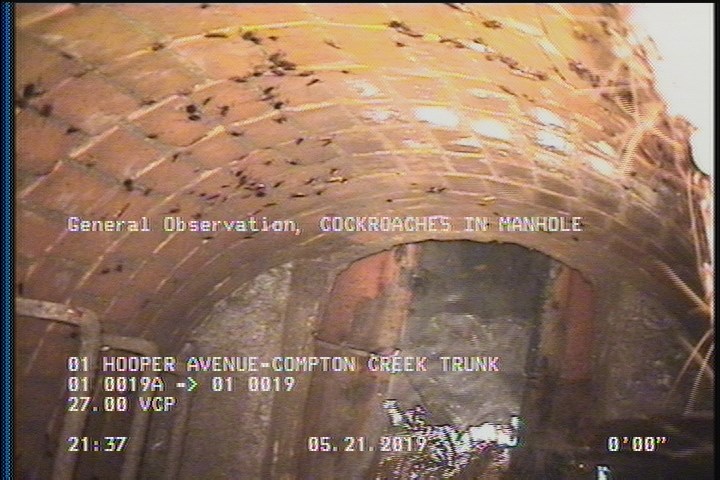

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

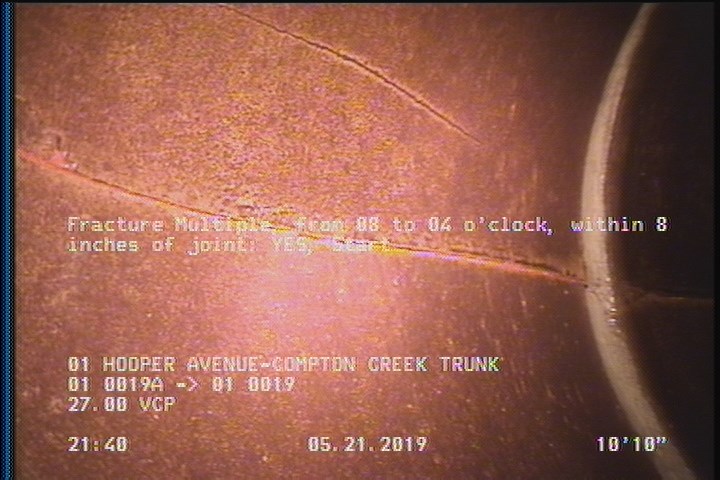

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

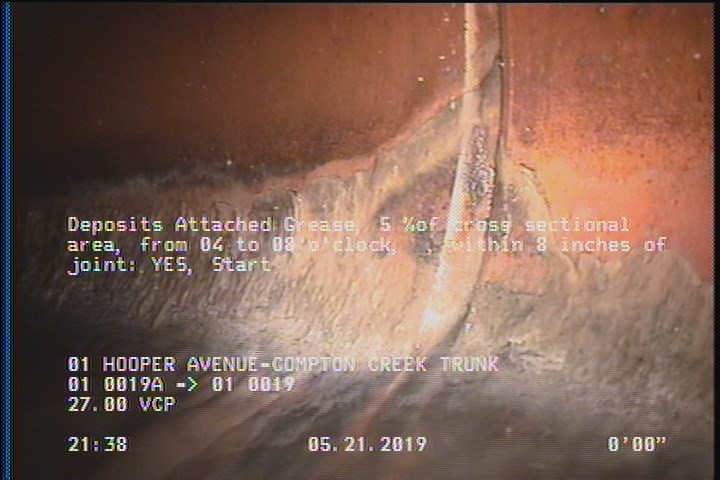

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

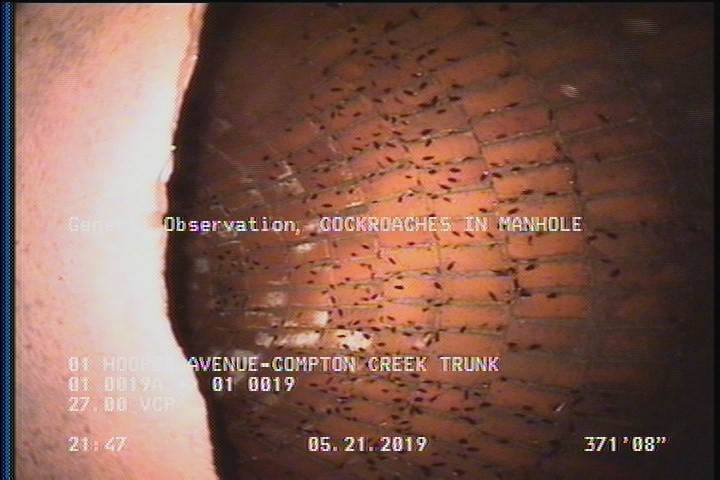

  • General Observation - COCKROACHES IN MANHOLE

    371.7 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P00769Work order 761332

Observations (13)

DistanceCodeObservation
375.1AMH01 0019
2FM—
369.6FM—
0AMH01 0019A
0MWM—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
371.7DAGS—
2DAGS—
371.7MGOCOCKROACHES IN MANHOLE
0MGOCOCKROACHES IN MANHOLE
0MWL—
375.1MGOACTIVE CONNECTION AT MH 3 O'CLOCK
375.1MGOACTIVE CONNECTION AT MH 9 O'CLOCK

Properties (6)

additional_info
SC378151
custom_field_two
2
customer
LACSD
datetime
2019-05-21T21:35:20-07:00
documentation
PRO PIPE
is_lateral_inspection
false
