Wastewater/Activity/PacpInspection/1.0May 22, 2019, 08:01 AM
3_1_1_22052019_010623.mp4
- Date
- 05/22/2019
- W/O
- 761332
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00209
- PipeID
- P00685
- Time
- 1:01 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6534
- Sewer Name
- 01 HOOPER AVENUE-COMPTON CREEK TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_761332_TV01245_APR2019
- Sewer Type
- Siphon
- Material
- CIP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 01 0029 NM
- Downstream MH
- 01 0028
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 5131
- O&M Rating
- 8
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

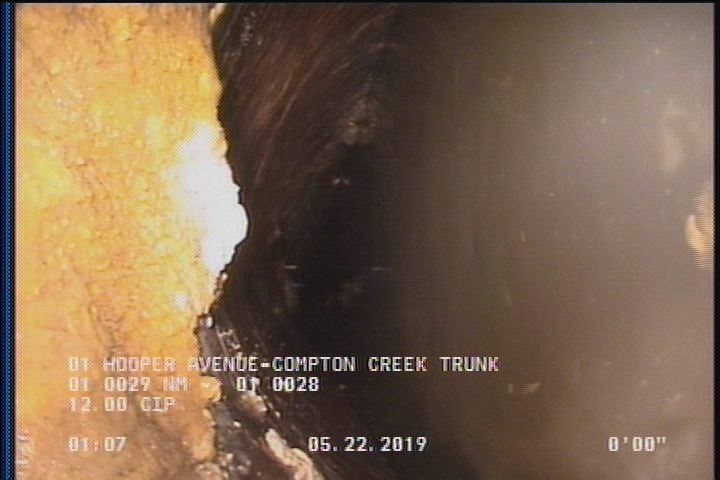

2 ft. - Survey Abandoned - VIEW OF DOWNLEG OF U/S NORTH MIDDLE SIPHON.

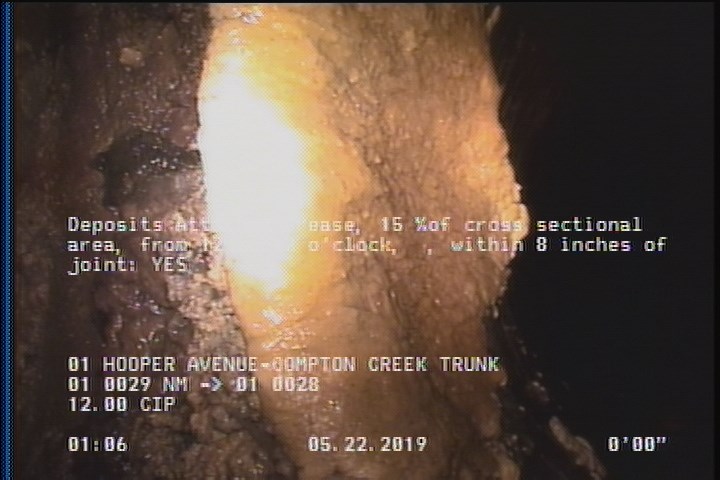

2 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 12 to 12 o'clock, , within 8 inches of joint: YES
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 01 0029 NORTH MIDDLE SIPHON. |
| 2 | MSA | VIEW OF DOWNLEG OF U/S NORTH MIDDLE SIPHON. |
| 2 | DAGS | — |
Properties (8)
- additional_info
- SC378151
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-05-22T01:01:11-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- lining
- CIPP
- year_laid
- 40524
