Wastewater/Activity/PacpInspection/1.0Apr 12, 2019, 05:36 AM
3_1_1_11042019_225309.mp4
- Date
- 04/11/2019
- W/O
- 761615
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00689
- PipeID
- P13855
- Time
- 10:36 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5854
- Sewer Name
- 18 MILLS AVENUE TRUNK
- City
- WHITTIER CA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- RFIR_WO_761615_TV18176_APR2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 0040
- Downstream MH
- 18 0039
- Dir. of Survey
- Downstream
- Length Surveyed
- 232.8 ft.
- Total Length
- 232.8 ft.
- Structural Index
- 3
- Structural Quick
- 3H2F
- Structural Rating
- 201
- O&M Index
- 2
- O&M Quick
- 2H00
- O&M Rating
- 90
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 291
Observation photos (2)

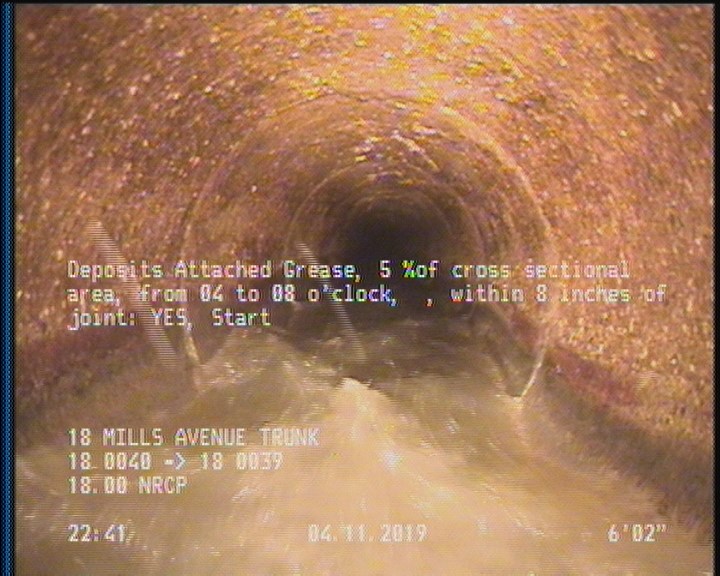

6.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

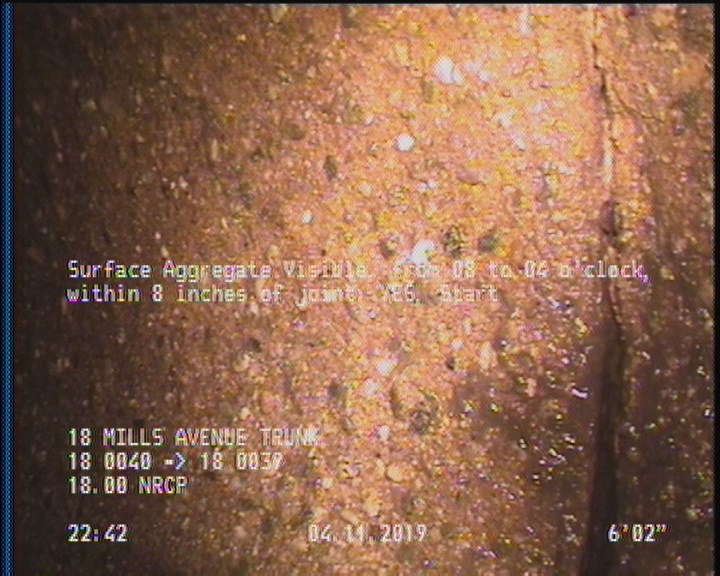

6.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (20)
| Distance | Code | Observation |
|---|---|---|
| 231.4 | SAV | — |
| 83.3 | TFC | — |
| 6.2 | DAGS | — |
| 0 | MGO | CONNECTION AT THE MH 3 O'CLOCK |
| 74.8 | TFC | — |
| 147.8 | TFC | — |
| 232.8 | MGO | CONNECTION AT THE MH 3 O'CLOCK |
| 141.7 | TFC | — |
| 0 | MWL | — |
| 65.3 | SSS | — |
| 6.2 | SAV | — |
| 231.4 | SSS | — |
| 23.9 | TFC | — |
| 198.9 | TFC | — |
| 0 | MGO | CONNECTION AT THE MH 9 O'CLOCK |
| 232.8 | AMH | 18 0039 |
| 0 | AMH | 18 0040 |
| 0 | MWM | — |
| 194.1 | TFC | — |
| 231.4 | DAGS | — |
Properties (6)
- additional_info
- SC36609*6
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-04-11T22:36:47-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
