Wastewater/Activity/PacpInspection/1.0Apr 12, 2019, 06:22 AM
1_1_1_11042019_234236.mp4
- Date
- 04/11/2019
- W/O
- 761615
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00689
- PipeID
- P13852
- Time
- 11:22 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5854
- Sewer Name
- 18 MILLS AVENUE TRUNK
- City
- WHITTIER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- RFIR_WO_761615_TV18176_APR2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 0037
- Downstream MH
- 18 0036
- Dir. of Survey
- Downstream
- Length Surveyed
- 306.5 ft.
- Total Length
- 306.5 ft.
- Structural Index
- 3
- Structural Quick
- 3K2G
- Structural Rating
- 256
- O&M Index
- 2
- O&M Quick
- 2W00
- O&M Rating
- 240
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 496
Observation photos (4)

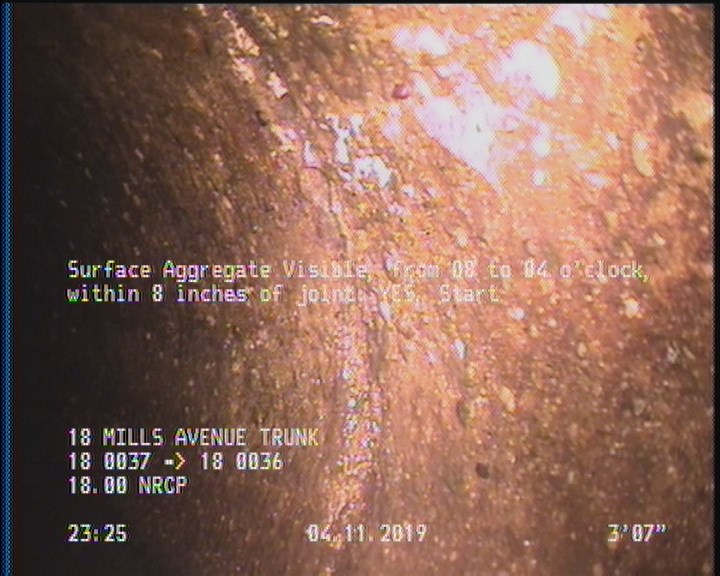

3.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

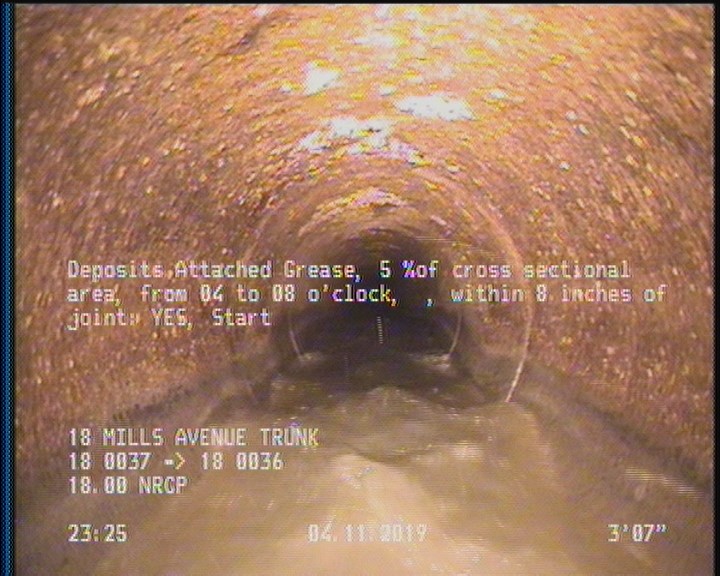

3.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

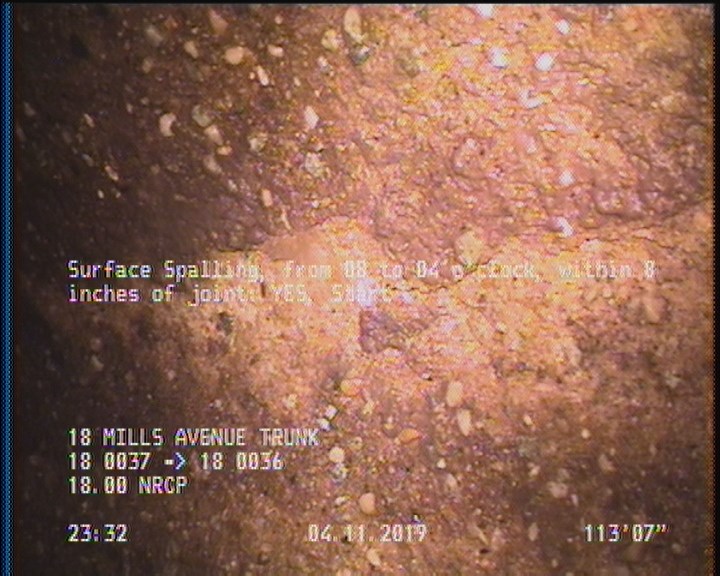

113.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

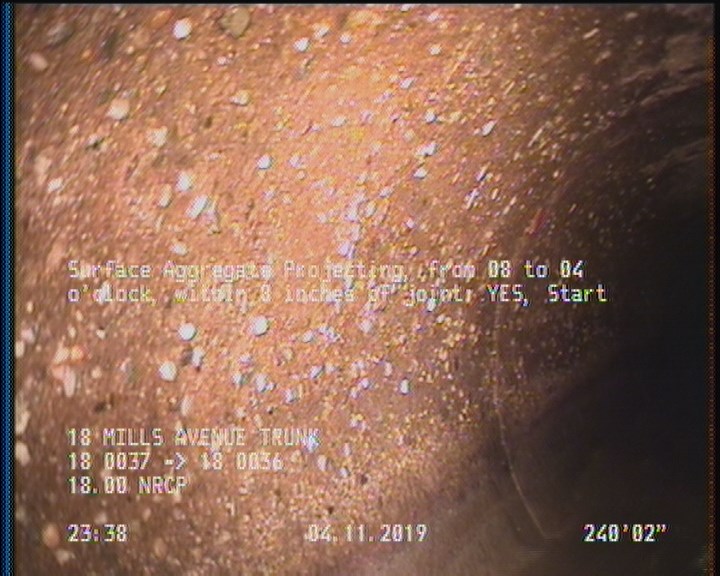

240.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (26)
| Distance | Code | Observation |
|---|---|---|
| 7.3 | DAZ | MAG COATING |
| 240.1 | SAP | — |
| 305.7 | DAGS | — |
| 306.5 | AMH | 18 0036 |
| 305.7 | SSS | — |
| 105 | TFC | — |
| 3.6 | SAV | — |
| 305.7 | DAZ | — |
| 276.4 | TFC | — |
| 113.6 | SSS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 306.4 | MGO | CONNECTIONS IN MH AT BOTH 3 AND 9 O' CLOCK |
| 305.7 | SAP | — |
| 162.9 | TFC | — |
| 240.1 | SAV | — |
| 0 | AMH | 18 0037 |
| 207.1 | TFC | — |
| 3.6 | DAGS | — |
| 111.1 | TFC | — |
| 213.2 | TF | — |
| 156.9 | TFC | — |
| 39.4 | TBA | — |
| 270.8 | TFC | — |
| 56 | TFC | — |
| 51.2 | TFC | — |
Properties (6)
- additional_info
- SC366096
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-04-11T23:22:11-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
