Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 19, 2019, 05:44 AM

  • 11_1_1_18042019_230248.mp4

Date
04/18/2019
W/O
761615
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00689
PipeID
P13873
Time
10:44 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6521
Sewer Name
18 MILLS AVENUE TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
RFIR_WO_761615_TV18176_APR2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
18 0059
Downstream MH
18 0058
Dir. of Survey
Downstream
Length Surveyed
322 ft.
Total Length
322 ft.
Structural Index
3
Structural Quick
4231
Structural Rating
13
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 18 0059 to 18 0058
MH: 18 0059MH: 18 0058downstream0 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 00590 ft. MGO - General Observation - CAPPED CONNECTION AT 9 O' CLOCK AT MH0 ft. MWL - Water Level, 20 %of cross sectional area3.8 ft. FM - Fracture Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES3.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start29.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"79.9 ft. FM - Fracture Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES114.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"120.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"142.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"206.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"211.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"233.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"278.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"281.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"306.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"310.8 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES319.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish322 ft. AMH - Downstream Manhole, Survey Ends - 18 0058

Observation photos (4)

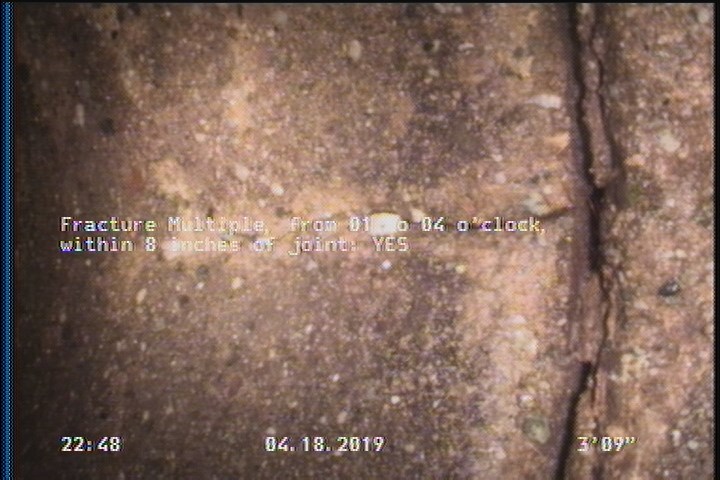

  • Fracture Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

    3.8 ft. - Fracture Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Fracture Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

    79.9 ft. - Fracture Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    310.8 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

All inspections of P13873Work order 761615

Observations (21)

DistanceCodeObservation
206.1TFA—
3.8FM—
319.5SAP—
0MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
0MWM—
0AMH18 0059
306.2TFA—
281.8TFA—
0MGOCAPPED CONNECTION AT 9 O' CLOCK AT MH
322AMH18 0058
310.8CL—
233.1TFA—
0MWL—
79.9FM—
29.4TFA—
142.1TFA—
114.7TFA—
211.9TFA—
3.8SAP—
120.8TFA—
278.7TFA—

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2019-04-18T22:44:38-07:00
documentation
PROPIPE
is_lateral_inspection
false
