Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 2, 2019, 09:50 AM

  • 05 1158_05 1157 _05022019_030743.mp4

Date
05/02/2019
W/O
761459
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00437
PipeID
P06396
Time
2:50 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6529
Sewer Name
05 EAST ROSECRANS AVENUE TRUNK, SECTION 2
City
GARDENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
18
Purpose
Routine Assessment
Project
RFIR_WO_761459_TV05354_APR2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 1158
Downstream MH
05 1157
Dir. of Survey
Downstream
Length Surveyed
311.7 ft.
Total Length
311.7 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 05 1158 to 05 1157
MH: 05 1158MH: 05 1157downstream0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. MGO - General Observation - CONNECTION IN MH 9 OCLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 05 11580 ft. MWM - Water Mark, 45 %of cross sectional area13.5 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start35.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 8"95.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"143.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 8"194.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 8"228.4 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 8", 8" - 95% ROOT BLOCKAGE228.4 ft. RBL - Roots Ball Lateral, at 10 o'clock, 75 %273.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"309.2 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish311.7 ft. AMH - Downstream Manhole, Survey Ends - 05 1157311.7 ft. MGO - General Observation - CONNECTION IN MH 9 OCLOCK

Observation photos (2)

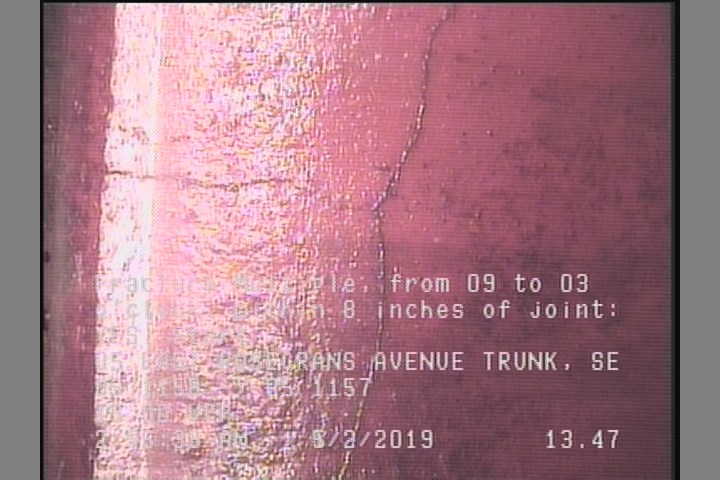

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    13.5 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

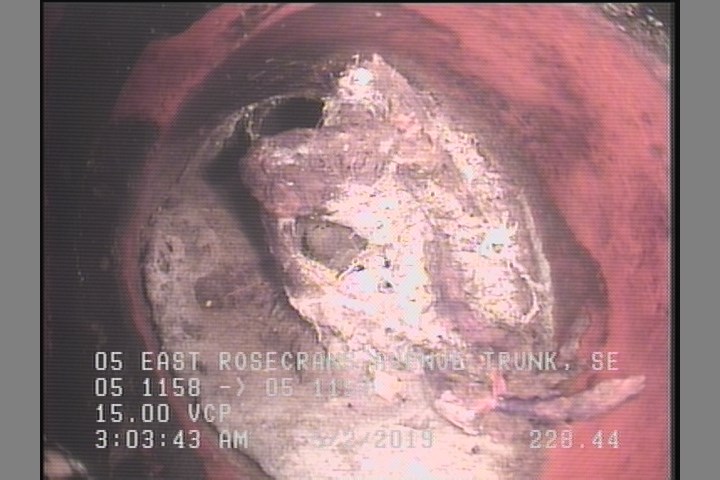

  • Roots Ball Lateral, at 10 o'clock, 75 %

    228.4 ft. - Roots Ball Lateral, at 10 o'clock, 75 %

All inspections of P06396Work order 761459

Observations (15)

DistanceCodeObservation
95.6TFC—
0MWL—
311.7AMH05 1157
0MGOCONNECTION IN MH 9 OCLOCK
194.7TFA—
309.2FM—
143.9TF—
228.4TFD95% ROOT BLOCKAGE
228.4RBL—
311.7MGOCONNECTION IN MH 9 OCLOCK
0AMH05 1158
13.5FM—
35.6TF—
0MWM—
273.6TFC—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-05-02T02:50:48-07:00
documentation
PROPIPE
is_lateral_inspection
false
