Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 6, 2016, 07:16 AM

  • A 0572_A 0571_20160406_004931.mp4

Date
04/06/2016
W/O
563407
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00327
PipeID
P08353
Time
12:16 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3245
Sewer Name
A JOA-1A SOUTH HAWTHORNE-WARFIELD AV EXTENSION
City
LAWNDALE, CA 90260
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
19
Purpose
Routine Assessment
Project
WO_563407_TV05154_APRIL2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
A 0571
Downstream MH
A 0572
Dir. of Survey
Upstream
Length Surveyed
260.8 ft.
Total Length
260.8 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole A 0571 to A 0572
MH: A 0571MH: A 0572upstream0 ft. AMH - Upstream Manhole, Survey Ends - A 05720 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK2.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Finish31.2 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"49.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"68 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"101.4 ft. H - Hole, at 02 o'clock, within 8 inches of joint: NO102.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"105.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"128.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"150.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"164.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"201.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"209.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"248 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"250.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"258.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start260.8 ft. MWL - Water Level, 15 %of cross sectional area260.8 ft. AMH - Downstream Manhole, Survey Begins - A 0571260.8 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (4)

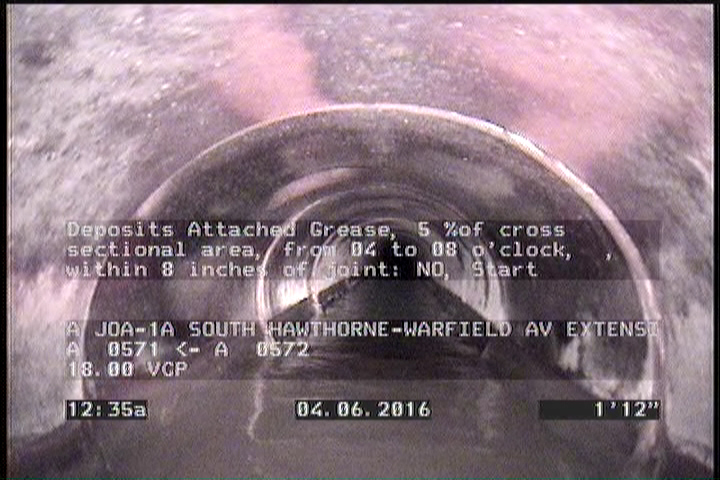

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

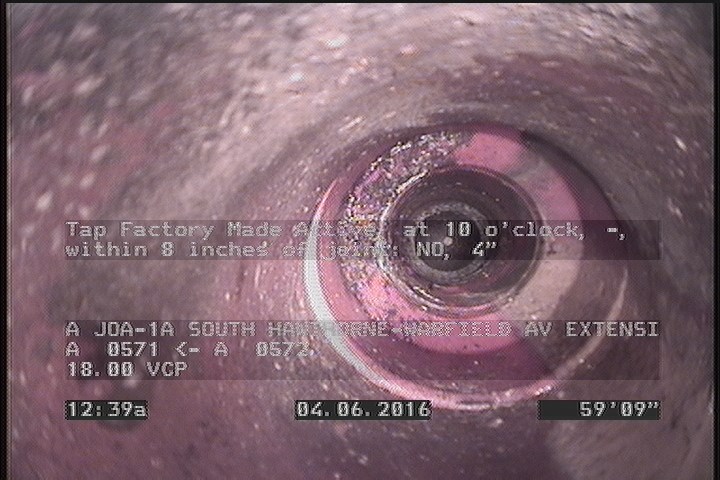

  • Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"

    59.7 ft. - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"

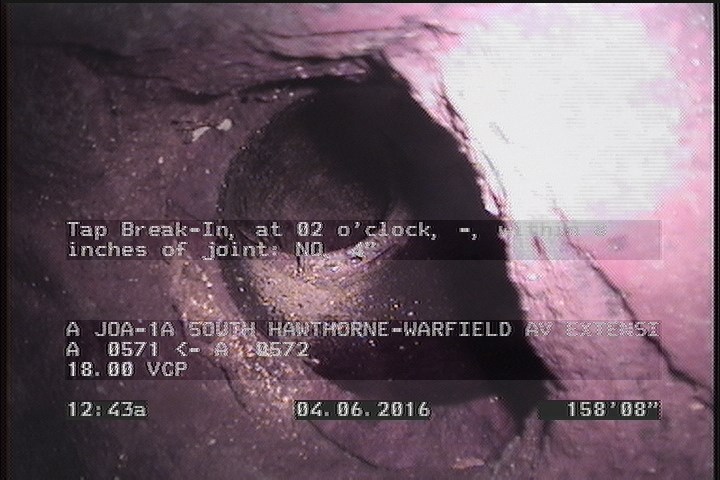

  • Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"

    158.7 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"

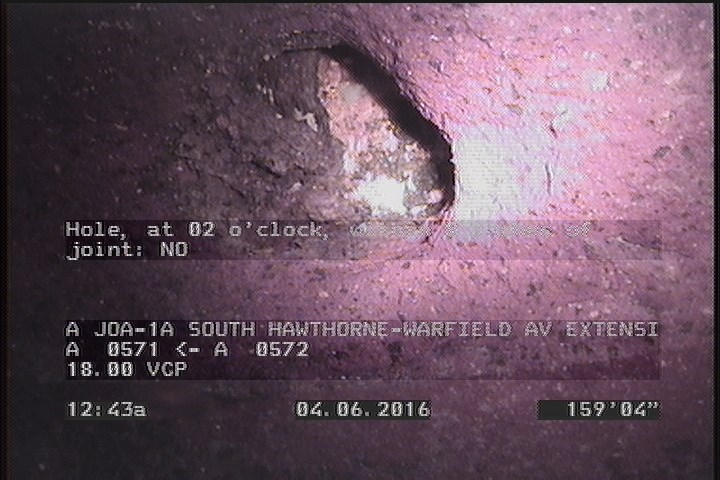

  • Hole, at 02 o'clock, within 8 inches of joint: NO

    159.4 ft. - Hole, at 02 o'clock, within 8 inches of joint: NO

All inspections of P08353Work order 563407

Observations (20)

DistanceCodeObservation
0MWL—
155.3TFA—
0AMHA 0571
229.6TBC—
260.8AMHA 0572
51.6TFC—
159.4H—
12.8TFC—
192.8TFA—
96.5TFA—
109.9TFC—
0MWM—
211TFC—
9.9TF—
2DAGS—
59.7TFA—
258.3DAGS—
260.8MGOLATERAL AT MH 3 OCLOCK
132.5TFC—
158.7TB—

Properties (6)

additional_info
SC305337
custom_field_two
4
customer
LACSD
datetime
2016-04-06T00:16:19-07:00
documentation
PRO-PIPE
is_lateral_inspection
false
