Wastewater/Activity/PacpInspection/1.0Apr 19, 2016, 07:59 AM
A 0555_A 0554_20160419_011533.mp4
- Date
- 04/19/2016
- W/O
- 563407
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00327
- PipeID
- P08335
- Time
- 12:59 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3320
- Sewer Name
- A JOA-1A SOUTH HAWTHORNE-WARFIELD AV EXTENSION
- City
- LAWNDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_563407_TV05154_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- A 0554
- Downstream MH
- A 0555
- Dir. of Survey
- Upstream
- Length Surveyed
- 298.8 ft.
- Total Length
- 298.8 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 42
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 118
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 160
Observation photos (4)

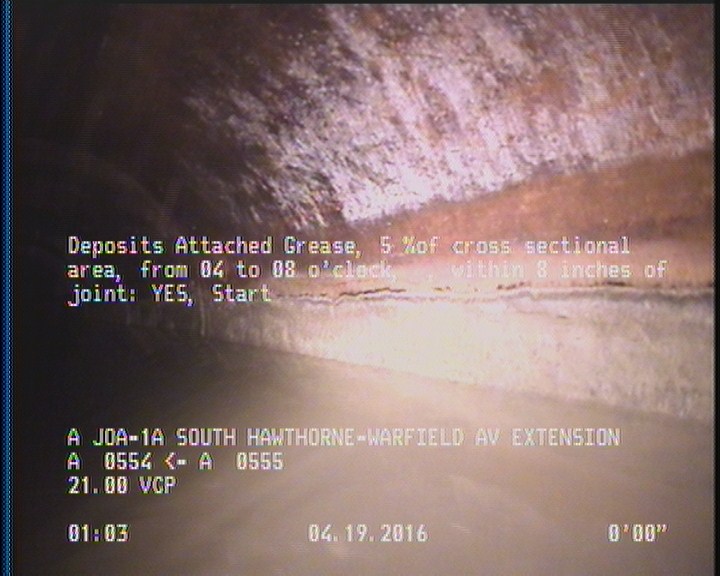

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

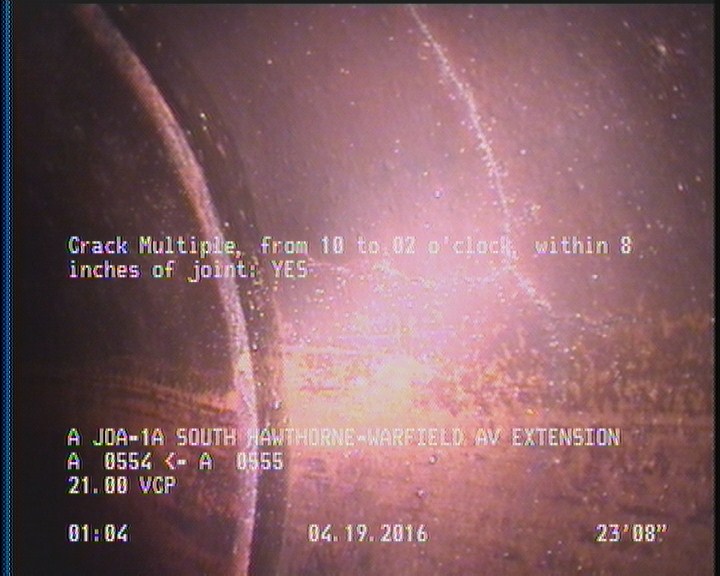

23.7 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

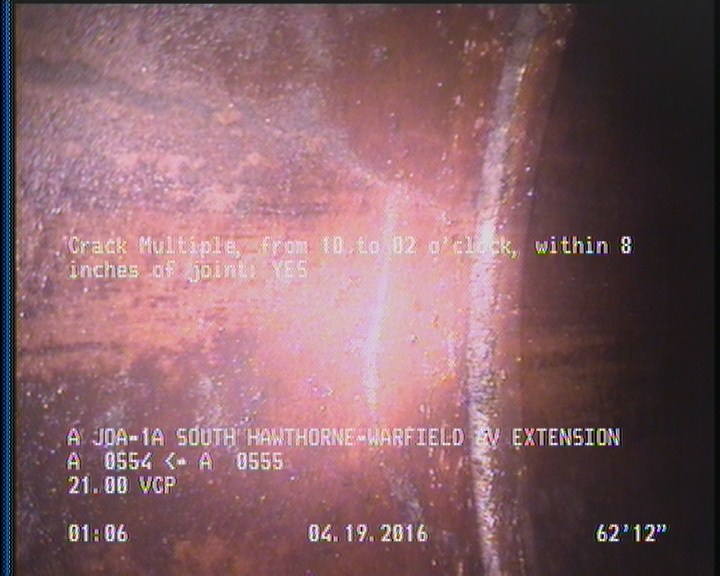

63 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

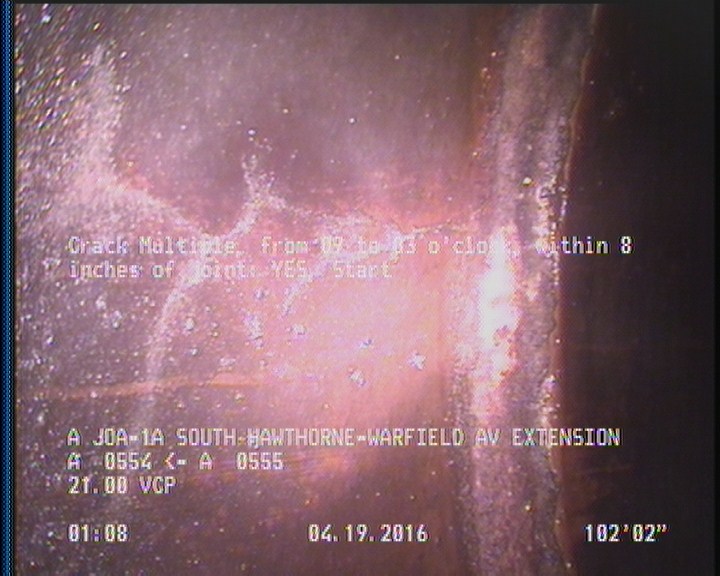

102.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 159.9 | CM | — |
| 279.7 | TF | — |
| 297.2 | DAGS | — |
| 0 | AMH | A 0554 |
| 37.8 | TFA | — |
| 57.7 | TFA | — |
| 23.7 | CM | — |
| 81 | TFA | — |
| 2 | DAGS | — |
| 102.2 | CM | — |
| 231.8 | TF | — |
| 116.2 | TFA | — |
| 0 | MWM | — |
| 159.9 | TFA | — |
| 298.8 | AMH | A 0555 |
| 7.8 | TFA | — |
| 0 | MWL | — |
| 63 | CM | — |
Properties (6)
- additional_info
- SC305447
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-04-19T00:59:29-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
