Wastewater/Activity/PacpInspection/1.0Feb 8, 2016, 09:56 AM
05 0098_05 0097_20160208_021045.mp4
- Date
- 02/08/2016
- W/O
- 541742
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00431
- PipeID
- P05388
- Time
- 1:56 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3138
- Sewer Name
- 05 DISTRICT #5 MAIN TRUNK
- City
- HAWTHORNE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_541742_TV05147_DEC2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Upstream MH
- 05 0098
- Downstream MH
- 05 0097
- Dir. of Survey
- Downstream
- Length Surveyed
- 332.5 ft.
- Total Length
- 332.5 ft.
- Structural Index
- 1
- Structural Quick
- 1K00
- Structural Rating
- 59
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 130
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 189
Observation photos (4)

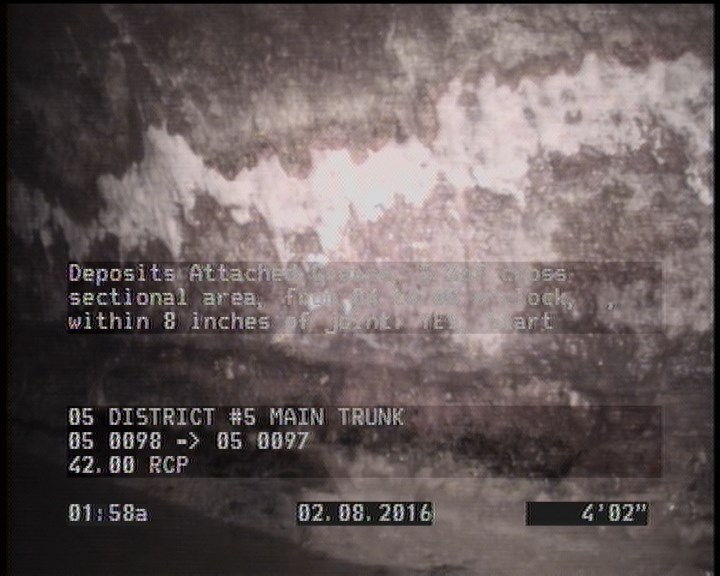

4.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

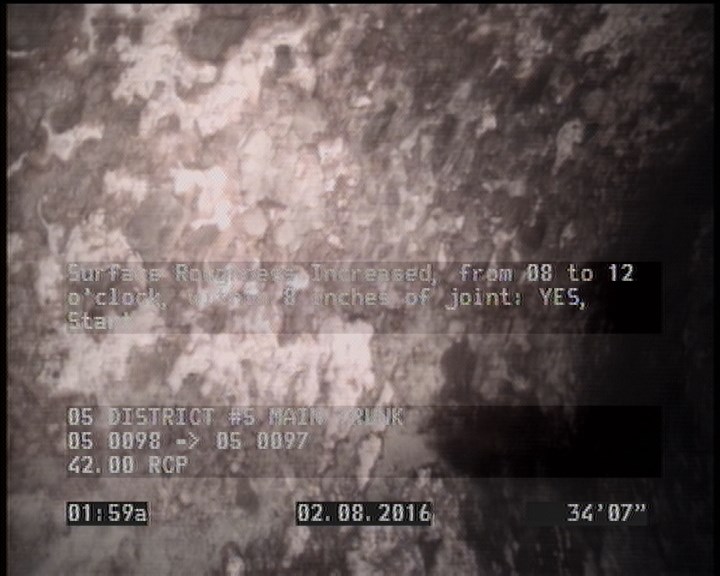

34.6 ft. - Surface Roughness Increased, from 08 to 12 o'clock, within 8 inches of joint: YES, Start

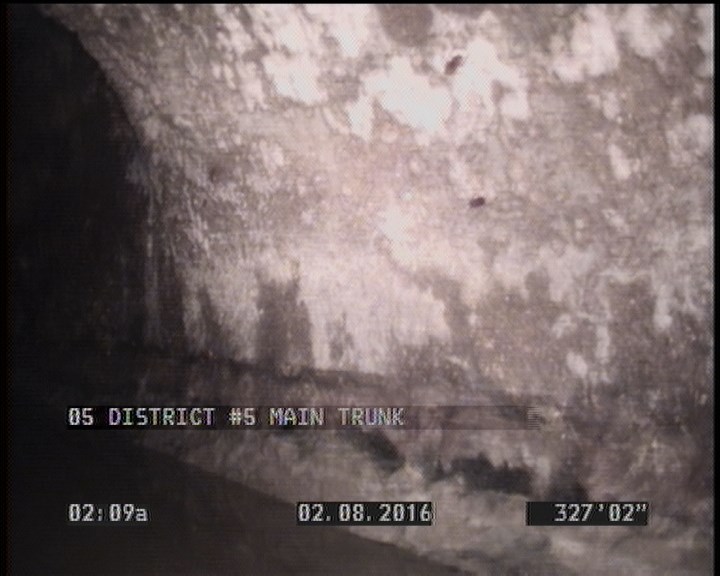

327.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

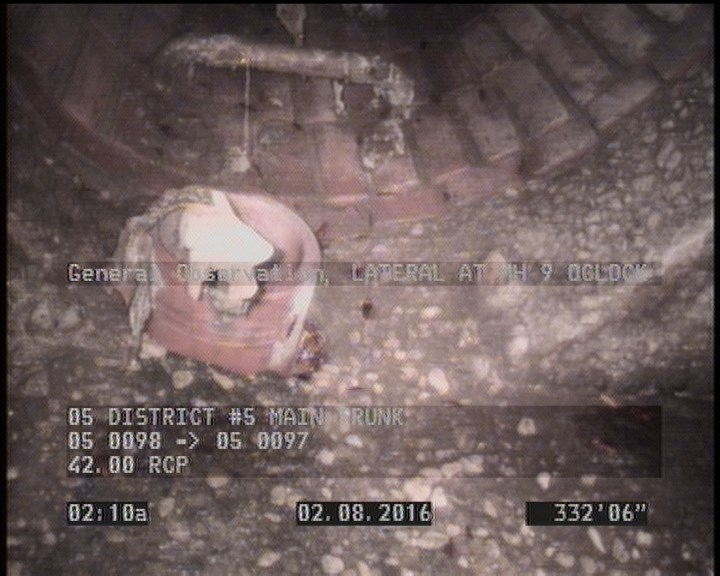

332.5 ft. - General Observation - LATERAL AT MH 9 OCLOCK
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 327.1 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | 05 0098 |
| 327.1 | SRI | — |
| 2 | MGO | MAGNESIUM H.O. START |
| 332.5 | AMH | 05 0097 |
| 0 | MGO | LATERAL AT MH 9 OCLOCK |
| 0 | MGO | LATERAL AT MH 3 OCLOCK |
| 4.2 | DAGS | — |
| 34.6 | SRI | — |
| 332.5 | MGO | LATERAL AT MH 9 OCLOCK |
Properties (6)
- additional_info
- SC225525
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-08T01:56:00-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
