Wastewater/Activity/PacpInspection/1.0Jan 25, 2016, 10:09 AM
05 1713_05 1712A_20160125_022725.mp4
- Date
- 01/25/2016
- W/O
- 541735
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00471
- PipeID
- P26495
- Time
- 2:09 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K2780
- Sewer Name
- 05 LOMITA TRUNK
- City
- LOMITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_541735_TV05197_DEC2015
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 05 1713
- Downstream MH
- 05 1712A
- Dir. of Survey
- Downstream
- Length Surveyed
- 259.5 ft.
- Total Length
- 259.5 ft.
- Structural Index
- 3
- Structural Quick
- 4231
- Structural Rating
- 13
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (4)

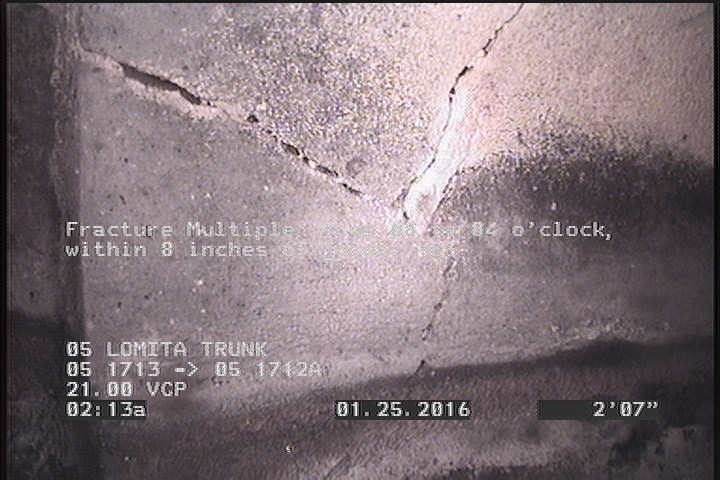

2.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

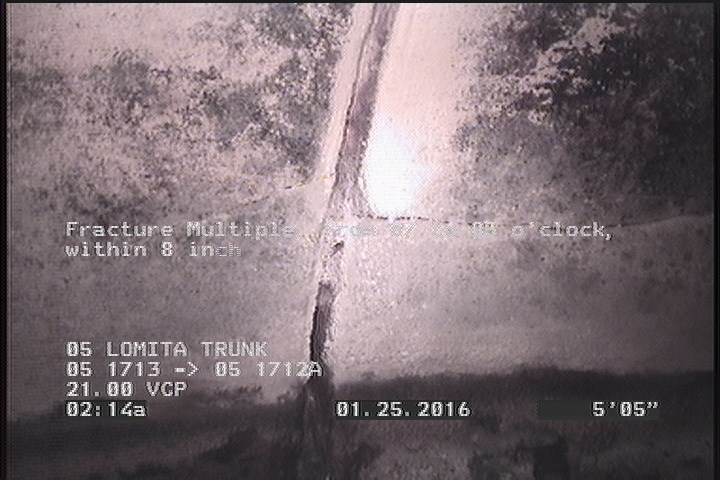

5.4 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

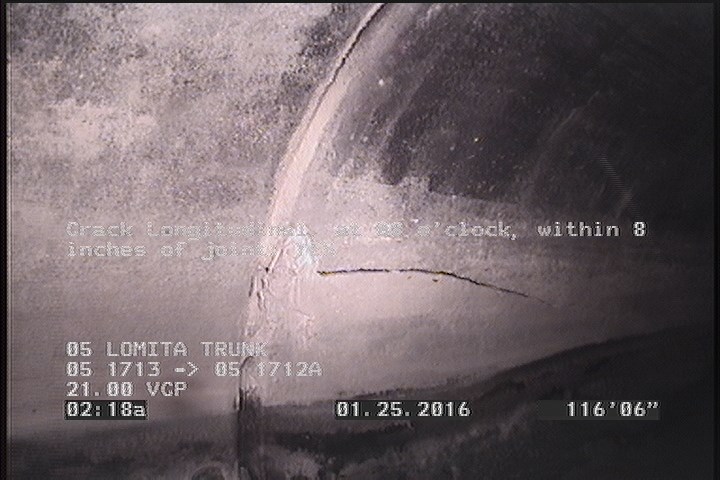

116.5 ft. - Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES

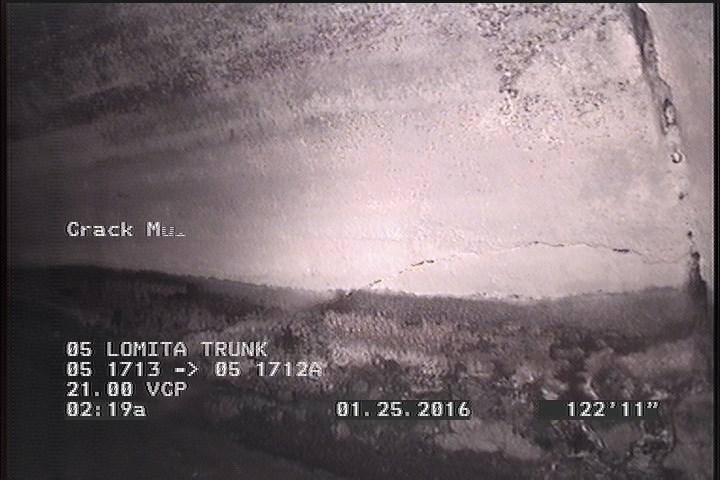

122.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 259.5 | AMH | 05 1712A |
| 5.4 | FM | — |
| 116.5 | CL | — |
| 259.5 | MGO | LATERAL AT MH 3 OCLOCK |
| 259.5 | CM | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | MGO | LATERAL AT MH 3 OCLOCK |
| 122.9 | CM | — |
| 83.2 | FM | — |
| 2.6 | FM | — |
| 0 | AMH | 05 1713 |
Properties (7)
- additional_info
- SC207092
- custom_field_three
- FRACTURES
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-01-25T02:09:57-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
