Wastewater/Activity/PacpInspection/1.0Jan 26, 2016, 06:00 AM
05 1725_05 1724_20160125_221604.mp4
- Date
- 01/25/2016
- W/O
- 541735
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00471
- PipeID
- P06952
- Time
- 10:00 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K2781
- Sewer Name
- 05 LOMITA TRUNK
- City
- LOMITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_541735_TV05197_DEC2015
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 05 1725
- Downstream MH
- 05 1724
- Dir. of Survey
- Downstream
- Length Surveyed
- 230.8 ft.
- Total Length
- 230.8 ft.
- Structural Index
- 3
- Structural Quick
- 4221
- Structural Rating
- 10
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (4)

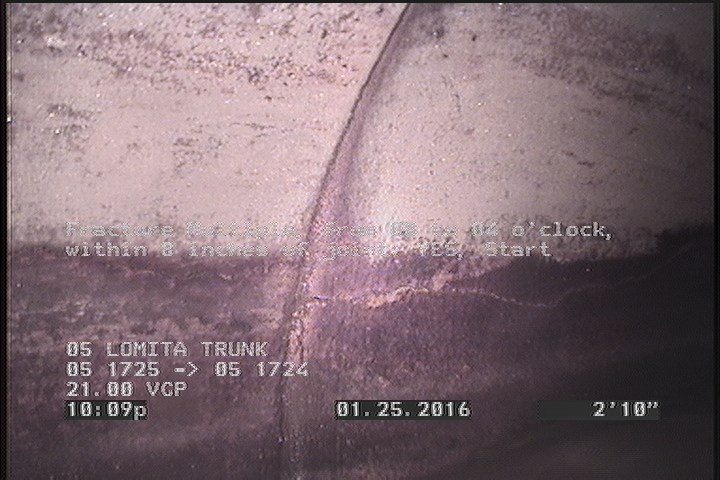

2.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

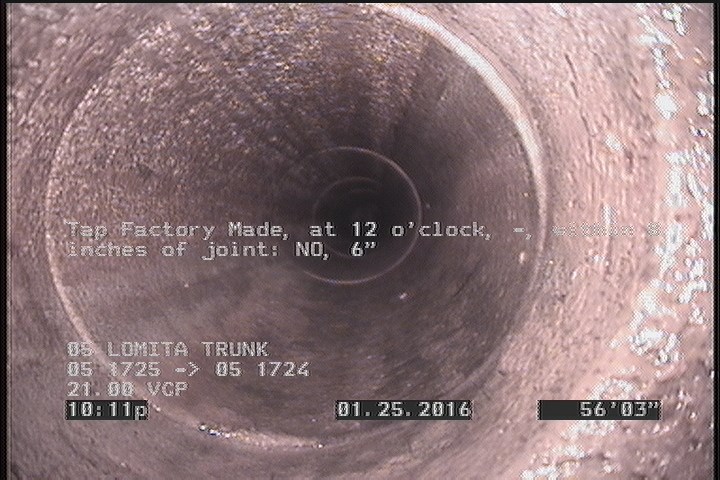

56.3 ft. - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"

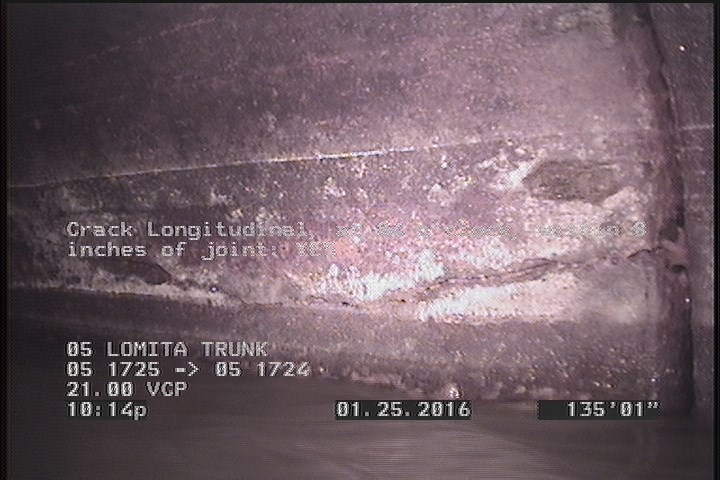

135.1 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

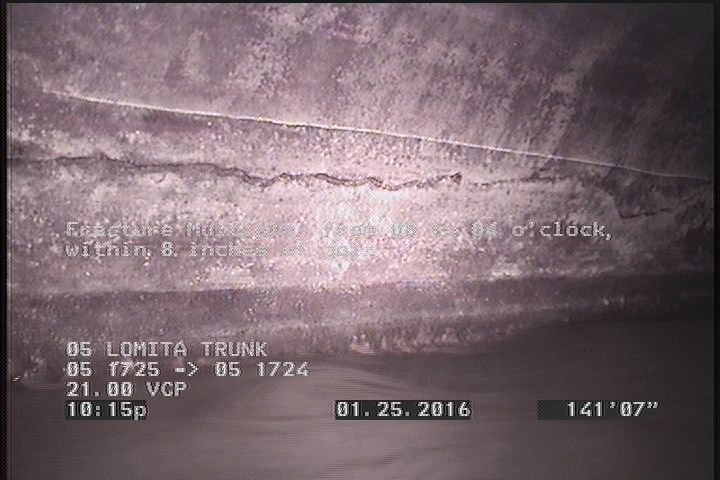

141.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 56.3 | TF | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 227.5 | FM | — |
| 0 | AMH | 05 1725 |
| 180.1 | TF | — |
| 61.3 | FM | — |
| 118.2 | TF | — |
| 230.8 | AMH | 05 1724 |
| 141.6 | FM | — |
| 135.1 | CL | — |
| 2.8 | FM | — |
Properties (7)
- additional_info
- SC207093
- custom_field_three
- FRACTURES
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-01-25T22:00:51-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
