Wastewater/Activity/PacpInspection/1.0Jun 29, 2016, 11:46 PM
H 0673_H 0672_20160713_033755.mp4
- Date
- 06/29/2016
- W/O
- 574527
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00941
- PipeID
- P11080
- Time
- 4:46 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3612
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- PICO RIVERA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_574527_TV18074_JULY2016
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 25 in.
- Width
- 25 in.
- Upstream MH
- H 0672
- Downstream MH
- H 0673
- Dir. of Survey
- Upstream
- Length Surveyed
- 595.8 ft.
- Total Length
- 595.8 ft.
- Structural Index
- 3
- Structural Quick
- 3W2W
- Structural Rating
- 595
- O&M Index
- 3
- O&M Quick
- 413A
- O&M Rating
- 34
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 629
Observation photos (4)

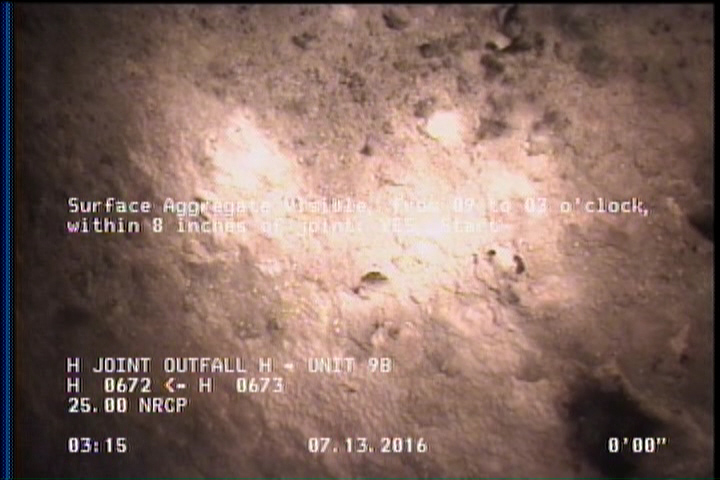

0 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

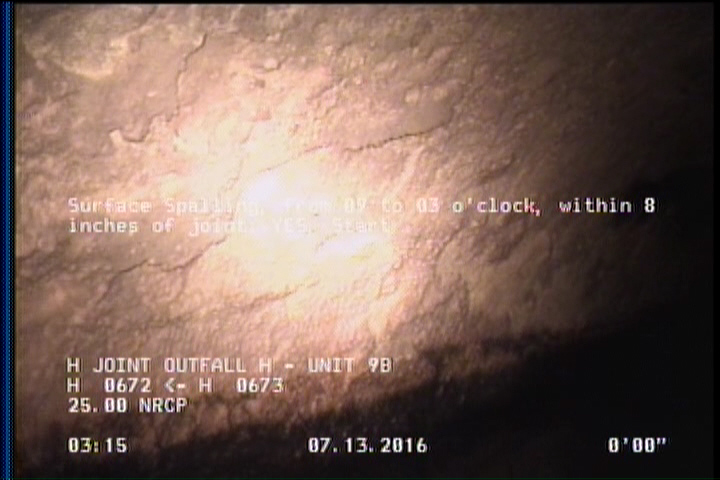

0 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

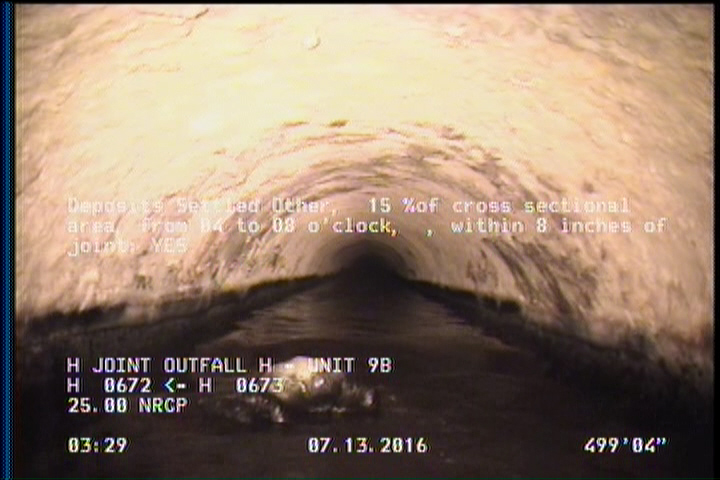

499 ft. - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - OTHER

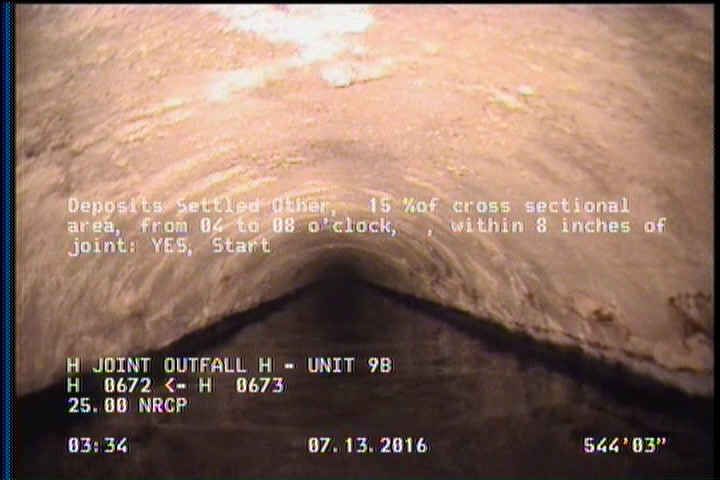

544.1 ft. - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - OTHER
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | H 0672 |
| 0 | SAV | — |
| 0 | SSS | — |
| 594.1 | SSS | — |
| 499 | DSZ | OTHER |
| 594.1 | SAV | — |
| 595.8 | AMH | H 0673 |
| 0 | MWL | — |
| 591.1 | DSZ | OTHER |
| 544.1 | DSZ | OTHER |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC305791
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-06-29T16:46:42-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
