Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 9, 2015, 11:02 AM

  • 05 0082_05 0081_20150209_040509.mp4

Date
02/09/2015
W/O
B140721
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00431
PipeID
P05370
Time
3:02 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K2326
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
LAWNDALE
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
20
Purpose
Routine Assessment
Project
WO_0474988_TV05017_2015JANUARY
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
05 0082
Downstream MH
05 0081
Dir. of Survey
Downstream
Length Surveyed
209.8 ft.
Total Length
209.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 05 0082 to 05 0081
MH: 05 0082MH: 05 0081downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 00820 ft. MWL - Water Level, 35 %of cross sectional area209.8 ft. AMH - Downstream Manhole, Survey Ends - 05 0081

Observation photos (4)

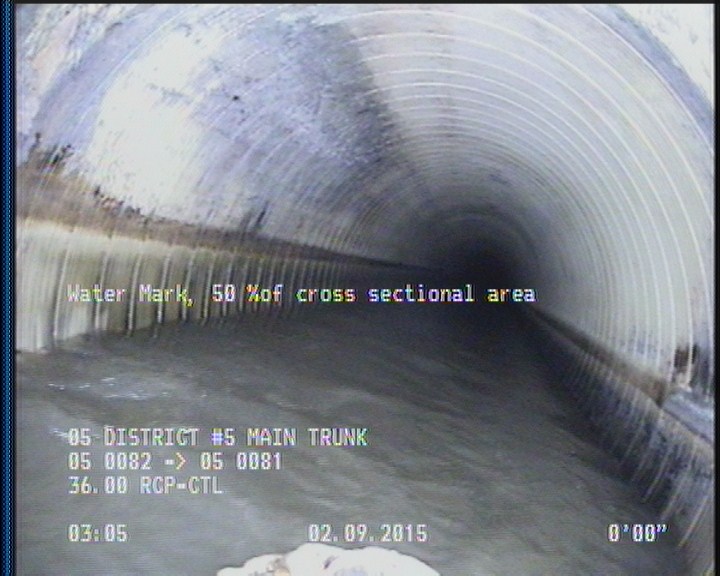

  • Water Mark, 50 %of cross sectional area

    0 ft. - Water Mark, 50 %of cross sectional area

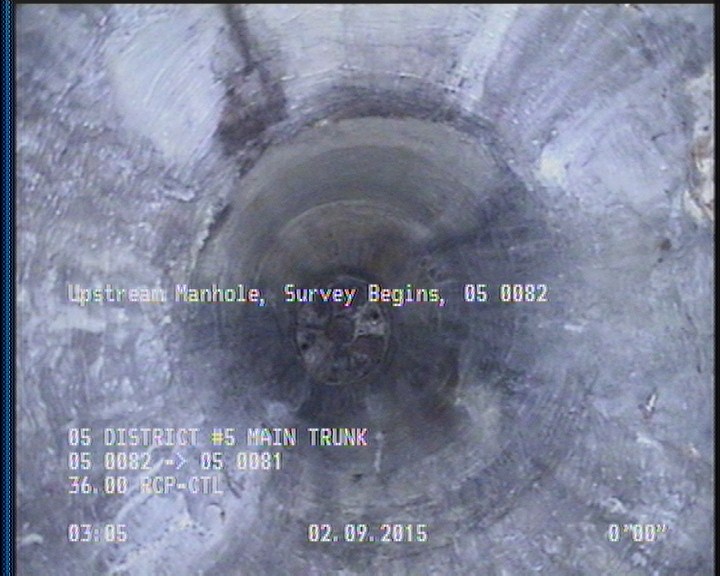

  • Upstream Manhole, Survey Begins - 05 0082

    0 ft. - Upstream Manhole, Survey Begins - 05 0082

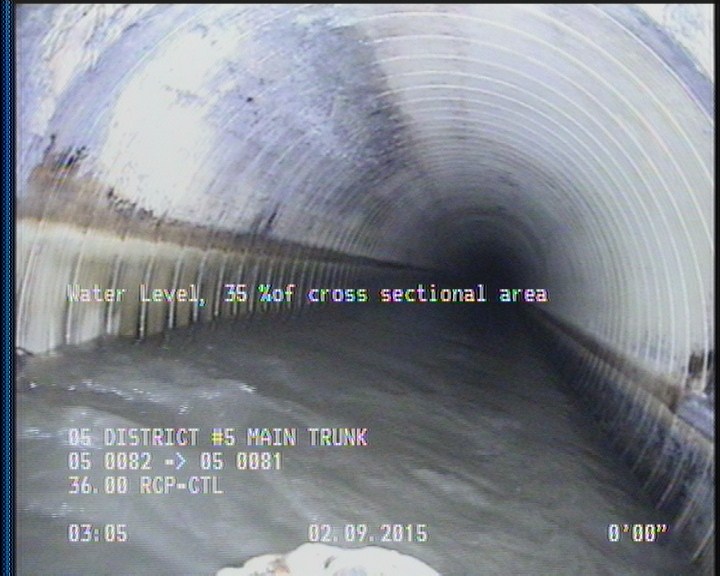

  • Water Level, 35 %of cross sectional area

    0 ft. - Water Level, 35 %of cross sectional area

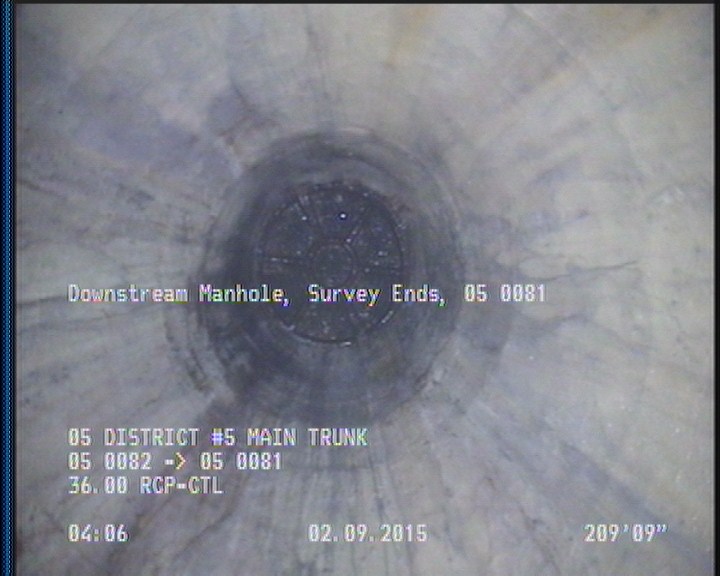

  • Downstream Manhole, Survey Ends - 05 0081

    209.8 ft. - Downstream Manhole, Survey Ends - 05 0081

All inspections of P05370Work order B140721

Observations (4)

DistanceCodeObservation
0MWM—
0AMH05 0082
0MWL—
209.8AMH05 0081

Properties (8)

additional_info
SC207414
custom_field_two
4
customer
LACSD
datetime
2015-02-09T03:02:08-08:00
documentation
PRO PIPE
is_lateral_inspection
false
lining
FR POLY LINE
year_laid
20000110
