Wastewater/Activity/PacpInspection/1.0Mar 21, 2016, 07:47 AM
18 0403_18 0402_20160322_010234.mp4
- Date
- 03/21/2016
- W/O
- 557858
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00699
- PipeID
- P14238
- Time
- 12:47 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3230
- Sewer Name
- 18 SANTA FE STREET RELIEF TRUNK
- City
- WHITTIER, CA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_557858_TV18044_2016MAR
- Sewer Type
- GRAVITY
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 18 0403
- Downstream MH
- 18 0402
- Dir. of Survey
- Downstream
- Length Surveyed
- 304.3 ft.
- Total Length
- 304.3 ft.
- Structural Index
- 2
- Structural Quick
- 3E2J
- Structural Rating
- 210
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 214
Observation photos (3)
7.2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
143.2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

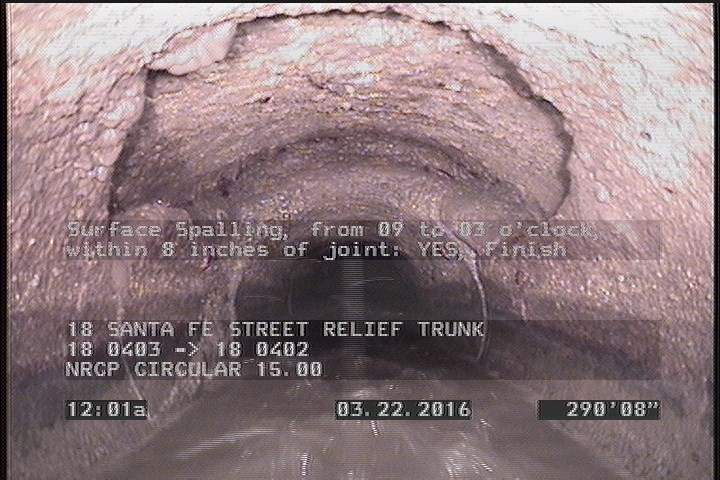

290.7 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 7.2 | SSS | — |
| 0 | MWM | — |
| 304.3 | AMH | 18 0402 |
| 302 | SAV | — |
| 143.2 | SAV | — |
| 290.7 | SSS | — |
| 0 | AMH | 18 0403 |
| 2 | MGO | MAGNEZIUM H.O. START |
Properties (6)
- additional_info
- SC305321
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-03-21T00:47:20-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
