Wastewater/Activity/PacpInspection/1.0Mar 14, 2016, 11:58 AM
05 0770_05 0769_14032016_045909.mp4
- Date
- 03/14/2016
- W/O
- 557677
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00553
- PipeID
- P05997
- Time
- 4:58 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3288
- Sewer Name
- 05 MANCHESTER-VERMONT DIVERSION EXTENSION TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_557677_TV05272_2016MAR
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 05 0769
- Downstream MH
- 05 0770
- Dir. of Survey
- Upstream
- Length Surveyed
- 389.5 ft.
- Total Length
- 389.5 ft.
- Structural Index
- 4
- Structural Quick
- 4N00
- Structural Rating
- 304
- O&M Index
- 2
- O&M Quick
- 2^00
- O&M Rating
- 308
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 612
Observation photos (3)

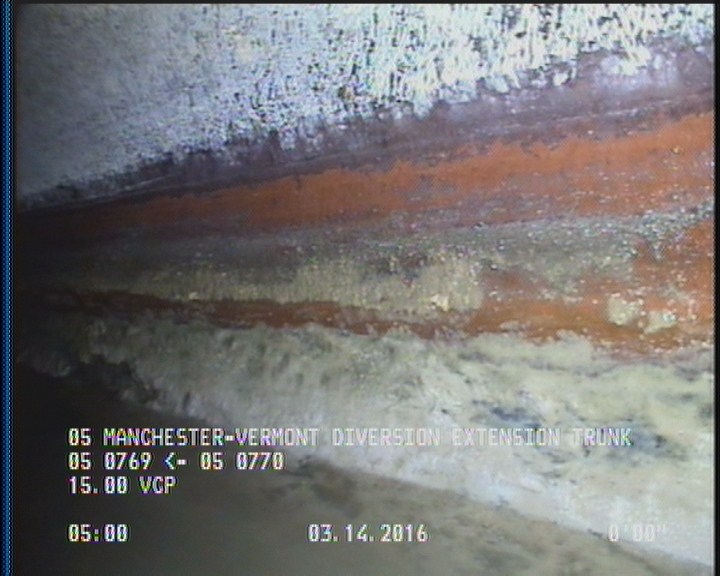

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

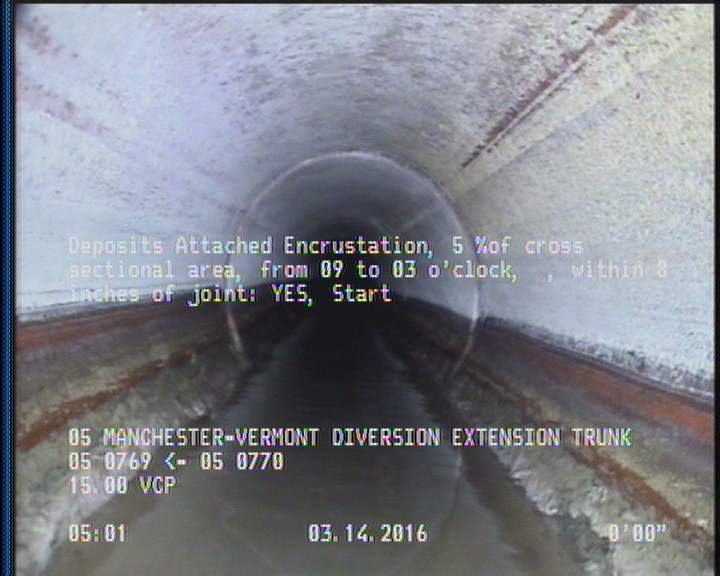

2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

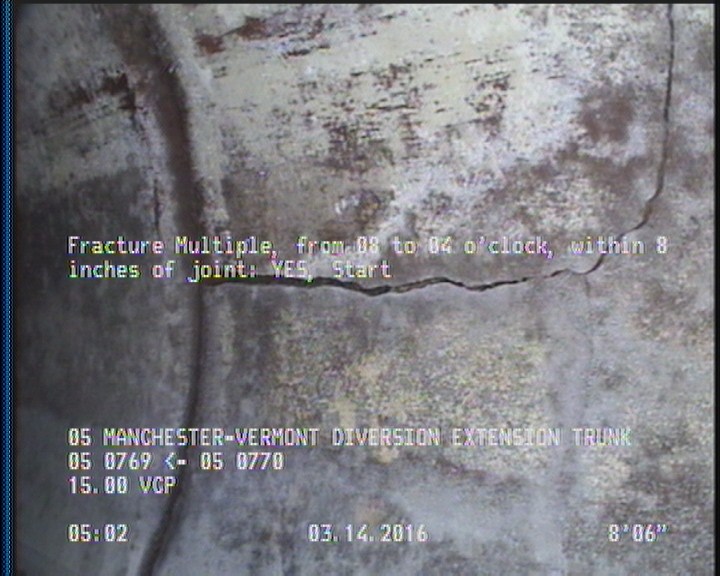

8.5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 387.3 | FM | — |
| 8.5 | FM | — |
| 389.5 | AMH | 05 0770 |
| 0 | AMH | 05 0769 |
| 2 | DAGS | — |
| 0 | MWM | — |
| 387.3 | DAE | — |
| 0 | MWL | — |
| 2 | DAE | — |
| 387.3 | DAGS | — |
Properties (6)
- additional_info
- SC305412
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-03-14T04:58:20-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
