Wastewater/Activity/PacpInspection/1.0Mar 14, 2016, 08:23 AM
05 0778_05 0777_14032016_012410.mp4
- Date
- 03/14/2016
- W/O
- 557677
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00553
- PipeID
- P06006
- Time
- 1:23 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3288
- Sewer Name
- 05 MANCHESTER-VERMONT DIVERSION EXTENSION TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_557677_TV05272_2016MAR
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 05 0778
- Downstream MH
- 05 0777
- Dir. of Survey
- Downstream
- Length Surveyed
- 394 ft.
- Total Length
- 394 ft.
- Structural Index
- 4
- Structural Quick
- 4N00
- Structural Rating
- 308
- O&M Index
- 2
- O&M Quick
- 412^
- O&M Rating
- 316
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 624
Observation photos (3)

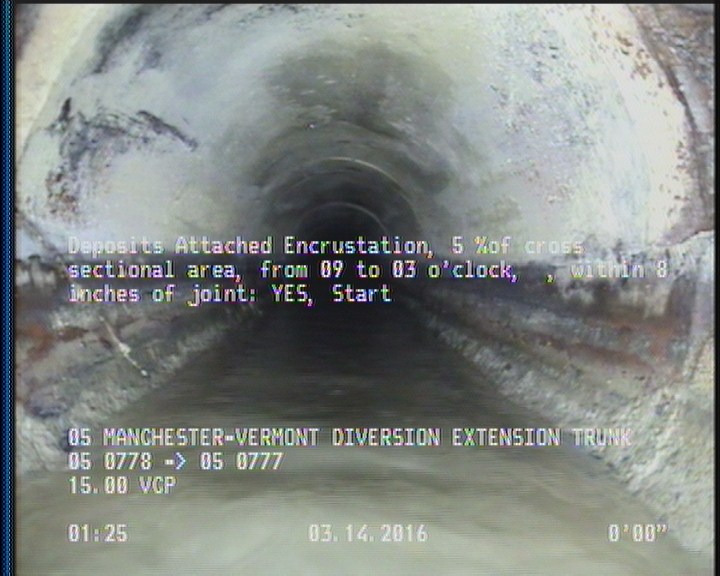

2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

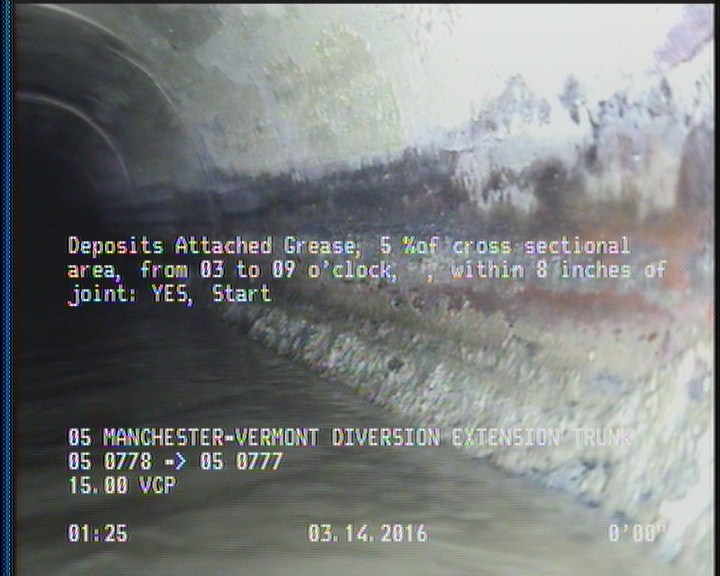

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

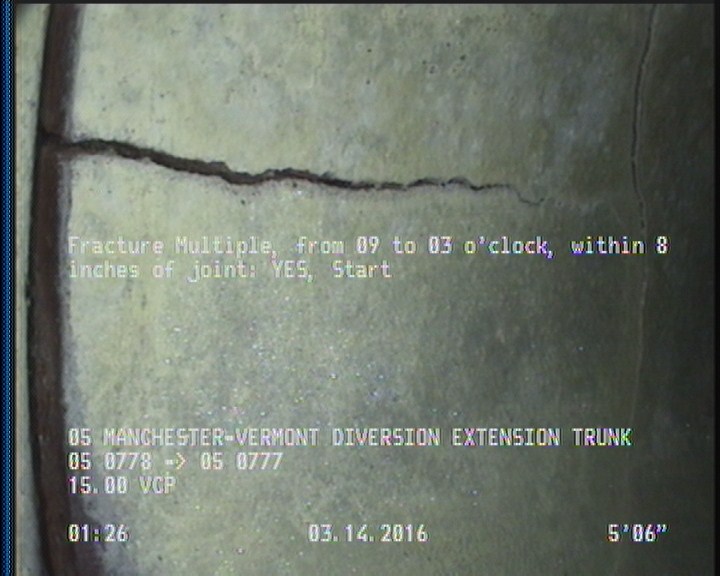

5.5 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 394 | AMH | 05 0777 |
| 391.8 | FM | — |
| 5.5 | FM | — |
| 391.8 | DAE | — |
| 2 | DAE | — |
| 0 | AMH | 05 0778 |
| 391.8 | DAGS | — |
| 2 | DAGS | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC305412
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-03-14T01:23:36-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
