Wastewater/Activity/PacpInspection/1.0Mar 15, 2016, 11:29 AM
08 0123_08 0122_15032016_042937.mp4
- Date
- 03/15/2016
- W/O
- 557595
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00015
- PipeID
- P00173
- Time
- 4:29 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3292
- Sewer Name
- 08 MAIN STREET RELIEF TRUNK
- City
- GARDENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_557595_TV08024_2016MAR
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 08 0123
- Downstream MH
- 08 0122
- Dir. of Survey
- Downstream
- Length Surveyed
- 607 ft.
- Total Length
- 607 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2Y00
- O&M Rating
- 260
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 260
Observation photos (3)

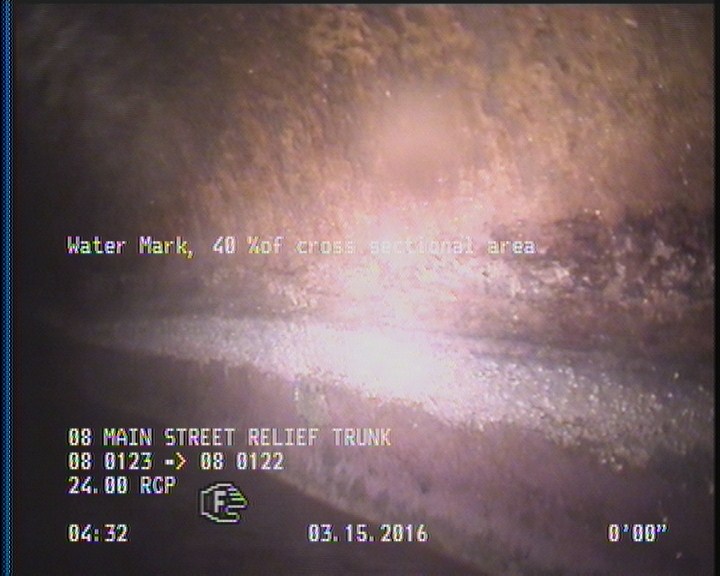

0 ft. - Water Mark, 40 %of cross sectional area

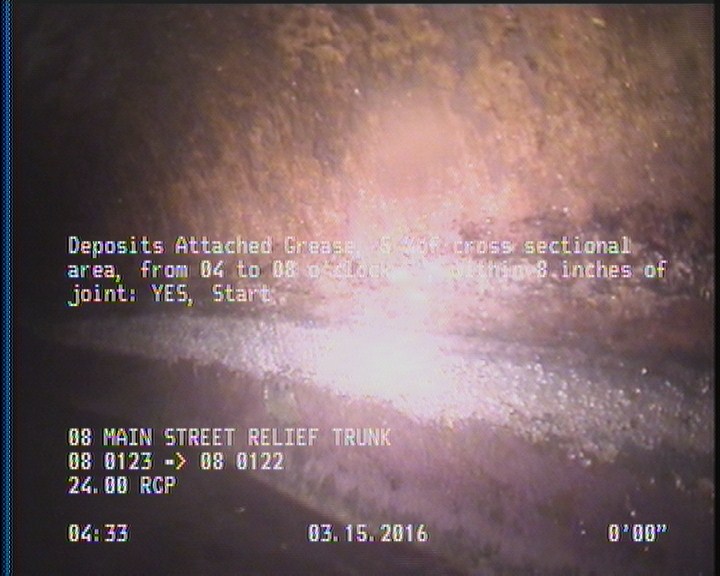

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

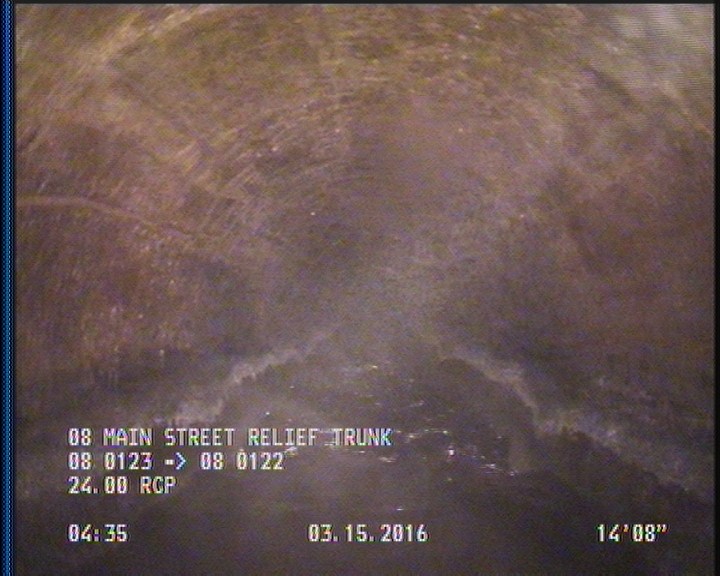

14.7 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 607 | DAGS | — |
| 607 | AMH | 08 0122 |
| 309.7 | TFC | — |
| 0 | AMH | 08 0123 |
| 0 | MWM | — |
| 14.7 | DSZ | — |
| 253.6 | TFC | — |
| 6.4 | DSZ | — |
| 188.8 | TFA | — |
| 553.1 | TFC | — |
| 431.1 | TFC | — |
| 131.8 | TFC | — |
| 366.4 | TFA | — |
| 0 | MWL | — |
| 10.1 | TFC | — |
| 55.7 | DSZ | — |
| 2 | DAGS | — |
| 487.8 | TFC | — |
Properties (6)
- additional_info
- SC305416
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-03-15T04:29:00-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
