Wastewater/Activity/PacpInspection/1.0Sep 15, 2017, 08:19 AM
32 0229_32 0163_14092017_020214.mp4
- Date
- 09/15/2017
- W/O
- 651750
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00891
- PipeID
- P19915
- Time
- 1:19 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4876
- Sewer Name
- 32 VALENCIA TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_651750_TV32044_AUG2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 32 0229
- Downstream MH
- 32 0163
- Dir. of Survey
- Downstream
- Length Surveyed
- 23.3 ft.
- Total Length
- 23.3 ft.
- Structural Index
- 3
- Structural Quick
- 5234
- Structural Rating
- 30
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 30
Observation photos (3)

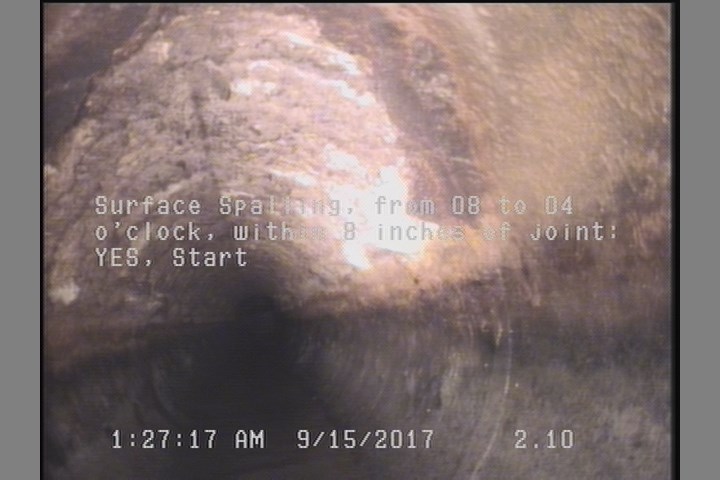

2.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

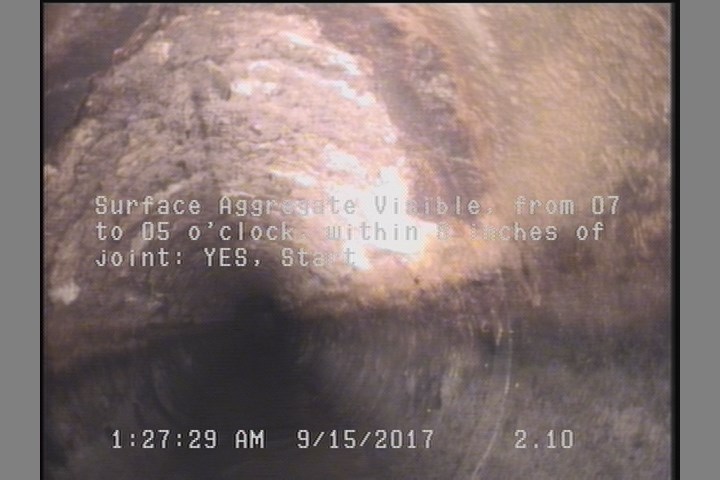

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

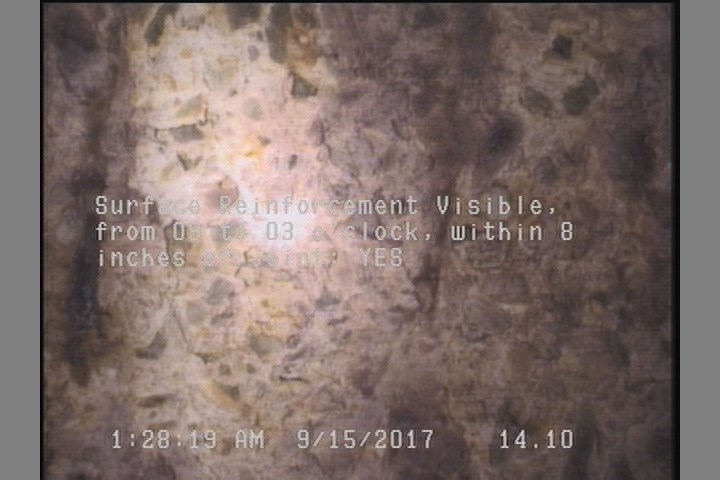

14.1 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 23.3 | AMH | 32 0163 |
| 23.3 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 23.3 | MGO | CONNECTION AT MH 6 O'CLOCK |
| 23.3 | SAP | — |
| 0 | MWM | — |
| 0 | AMH | 32 0229 |
| 2.1 | SSS | — |
| 23.3 | SRV | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MGO | CONNECTION AT MH 6 O'CLOCK |
| 14.1 | SRV | — |
| 23.3 | SSS | — |
| 0 | MWL | — |
| 2.1 | SAP | — |
Properties (7)
- additional_info
- SC345935
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-09-15T01:19:01-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 26793
