Wastewater/Activity/PacpInspection/1.0Sep 14, 2017, 06:04 AM
32 0168_32 0167_13092017_230542.mp4
- Date
- 09/13/2017
- W/O
- 651750
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00891
- PipeID
- P19919
- Time
- 11:04 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4874
- Sewer Name
- 32 VALENCIA TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_651750_TV32044_AUG2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 32 0168
- Downstream MH
- 32 0167
- Dir. of Survey
- Downstream
- Length Surveyed
- 329 ft.
- Total Length
- 329 ft.
- Structural Index
- 3
- Structural Quick
- 5B3L
- Structural Rating
- 405
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 405
Observation photos (3)

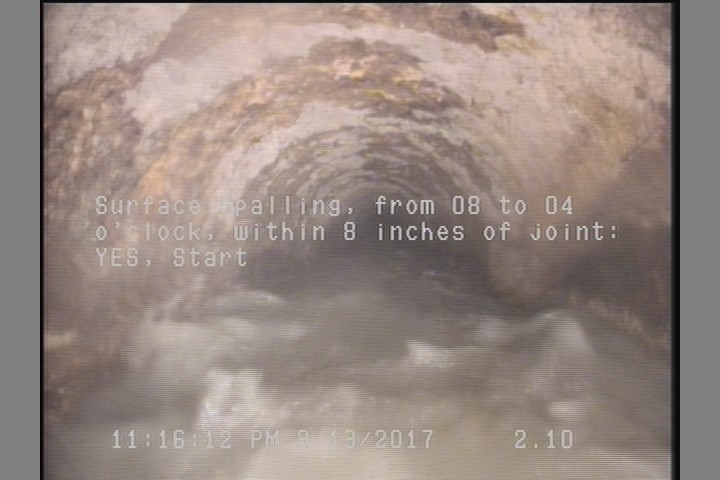

2.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

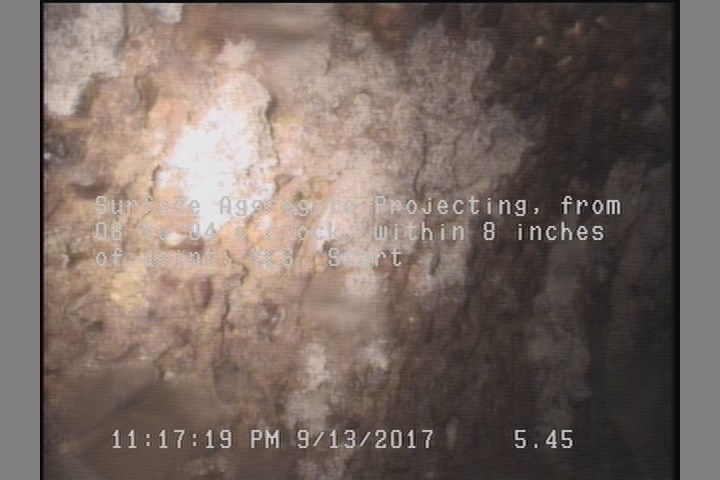

5.5 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

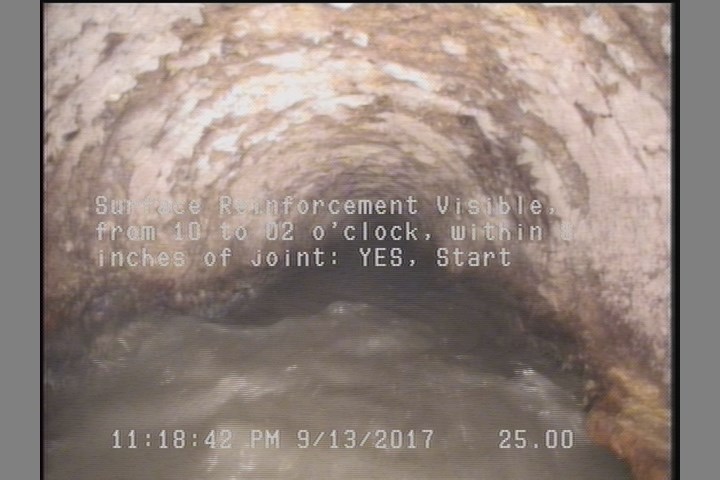

25 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 103 | SRV | — |
| 0 | MWL | — |
| 329 | SSS | — |
| 307.7 | TF | — |
| 329 | AMH | 32 0167 |
| 329 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 25 | SRV | — |
| 0 | MWM | — |
| 329 | SAP | — |
| 53.3 | TFA | — |
| 2.1 | SSS | — |
| 0 | AMH | 32 0168 |
| 5.5 | SAP | — |
Properties (7)
- additional_info
- SC345933
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-09-13T23:04:52-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 26793
