Wastewater/Activity/PacpInspection/1.0Sep 21, 2017, 09:43 AM
A 0400_16 0051 _21092017_024436.mpg
- Date
- 09/21/2017
- W/O
- 657807
- Weather
- Dry
- Operator/Surveyor
- CORTEZ ESTEBAN
- Sewer ID
- Z00639
- PipeID
- P13065
- Time
- 2:43 AM
- Certificate
- U-209-8148
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4932
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTS 1,2,&4
- City
- SAN GABRIEL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_657807_TV16113_SEP2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 16 in.
- Width
- 16 in.
- Upstream MH
- 16 0051
- Downstream MH
- A 0400
- Dir. of Survey
- Upstream
- Length Surveyed
- 317 ft.
- Total Length
- 317 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

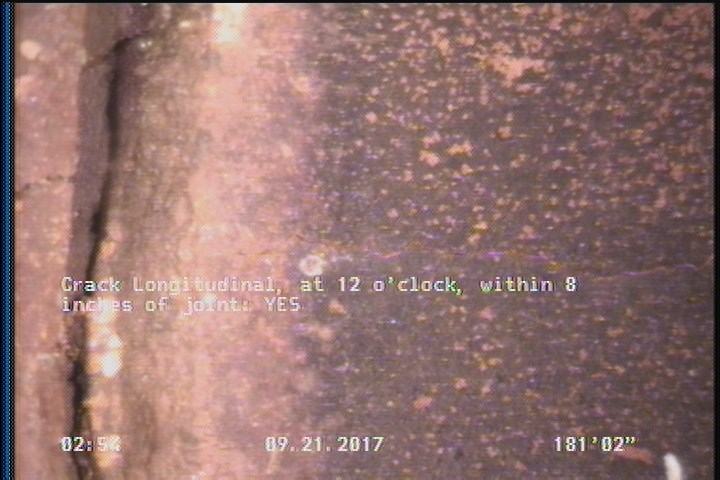

181.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

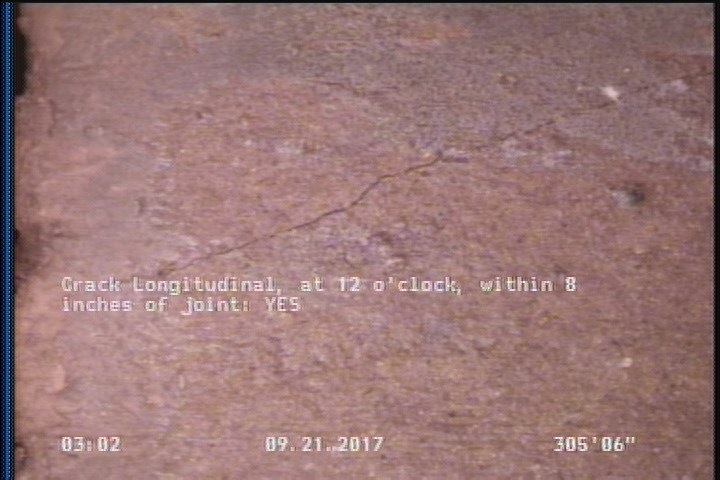

305.5 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 317 | AMH | A 0400 |
| 317 | MGO | Surface Spalling throughout the reach |
| 0 | MWM | — |
| 0 | AMH | 16 0051 |
| 0 | MGO | POSSIBLY ENDING AT MH 16 0052 SEE MAP |
| 0 | MWL | — |
| 181.2 | CL | — |
| 305.5 | CL | — |
Properties (6)
- additional_info
- SC345840
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-21T02:43:30-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
