Wastewater/Activity/PacpInspection/1.0Sep 21, 2017, 11:10 AM
16 0062_16 0061 _21092017_041039.mpg
- Date
- 09/21/2017
- W/O
- 657807
- Weather
- Dry
- Operator/Surveyor
- CORTEZ ESTEBAN
- Sewer ID
- Z00639
- PipeID
- P13076
- Time
- 4:10 AM
- Certificate
- U-209-8148
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4932
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTS 1,2,&4
- City
- SAN GABRIEL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_657807_TV16113_SEP2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 16 0061
- Downstream MH
- 16 0062
- Dir. of Survey
- Upstream
- Length Surveyed
- 382.7 ft.
- Total Length
- 382.7 ft.
- Structural Index
- 2
- Structural Quick
- 2300
- Structural Rating
- 6
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (4)

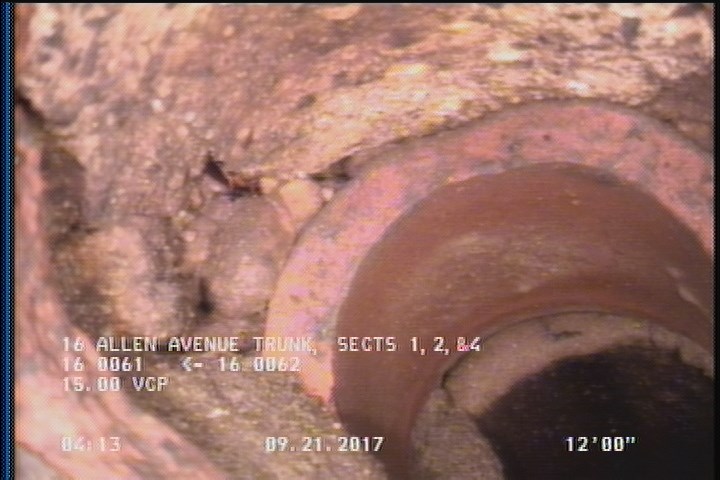

12 ft. - Tap Break-In Defective, at 11 o'clock, -, , within 8 inches of joint: YES, 4", 1"

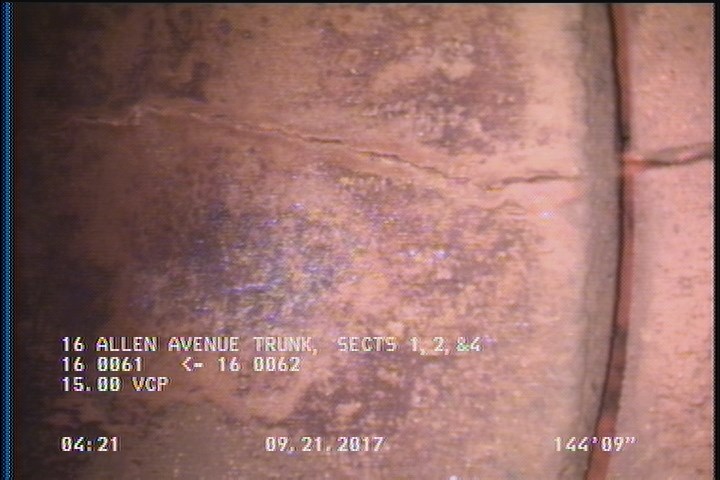

144.8 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

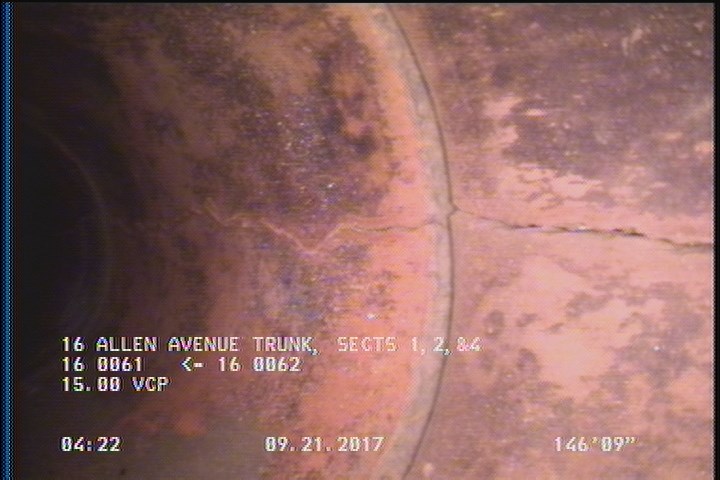

146.8 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

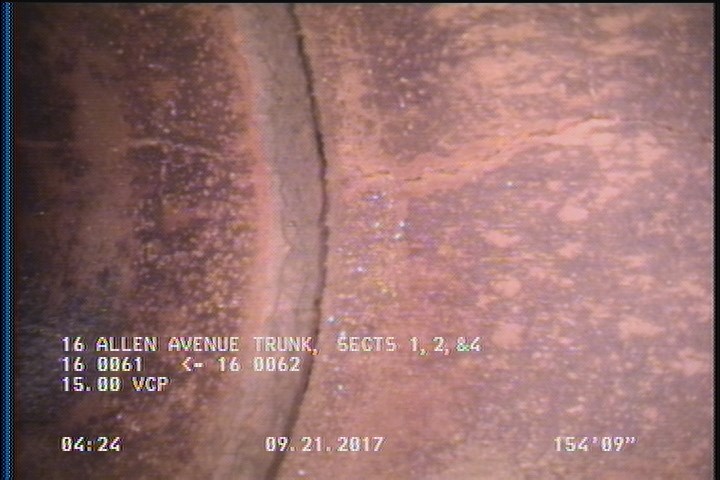

154.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 146.8 | CL | — |
| 0 | AMH | 16 0061 |
| 0 | MWL | — |
| 12 | TB | — |
| 86 | TB | — |
| 158.7 | CL | — |
| 144.8 | CL | — |
| 0 | MWM | — |
| 12 | TBD | — |
| 152.5 | CL | — |
| 382.7 | AMH | 16 0062 |
| 382 | MGO | Surface Spalling throughout the reach |
| 154.6 | CL | — |
Properties (6)
- additional_info
- SC345840
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-21T04:10:19-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
