Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 11, 2015, 08:40 AM

  • 16 0591_16 0590_20151211_010151.mp4

Date
12/11/2015
W/O
531059
Weather
Damp
Operator/Surveyor
R.VARGAS
Sewer ID
Z00664
PipeID
P13641
Time
12:40 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3007
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
10
Purpose
Routine Assessment
Project
WO_531059_TV16030_OCT2015
Sewer Type
GRAVITY
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
16 0591
Downstream MH
16 0590
Dir. of Survey
Downstream
Length Surveyed
636 ft.
Total Length
636 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2[12
O&M Rating
286
Overall Index
2
Overall Quick
—
Overall Rating
292
Pipe schematic from manhole 16 0591 to 16 0590
MH: 16 0591MH: 16 0590downstream0 ft. AMH - Upstream Manhole, Survey Begins - 16 05910 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK ACTIVE0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. VC - Vermin Cockroach2.6 ft. MGO - General Observation - MAGNEZIUM H.O. START2.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start91.9 ft. VC - Vermin Cockroach515.4 ft. LR - Alignment Right, 20 %, Start596.8 ft. LR - Alignment Right, 20 %, Finish632.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish632.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish632.3 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH636 ft. AMH - Downstream Manhole, Survey Ends - 16 0590

Observation photos (2)

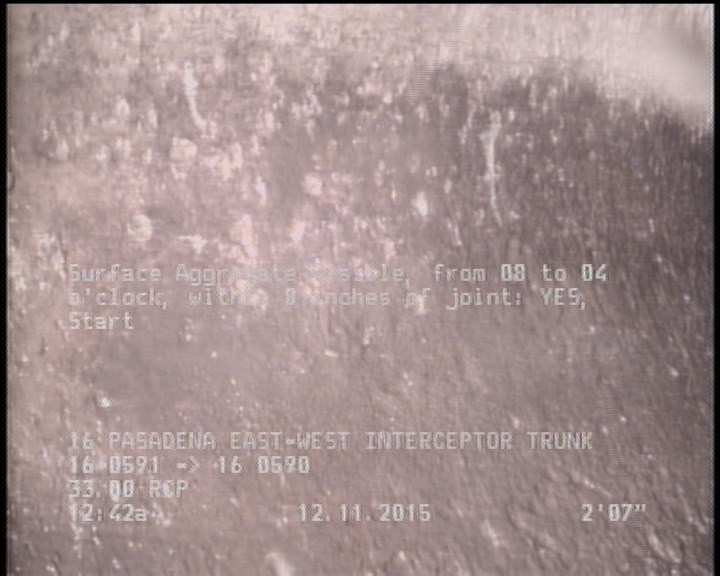

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

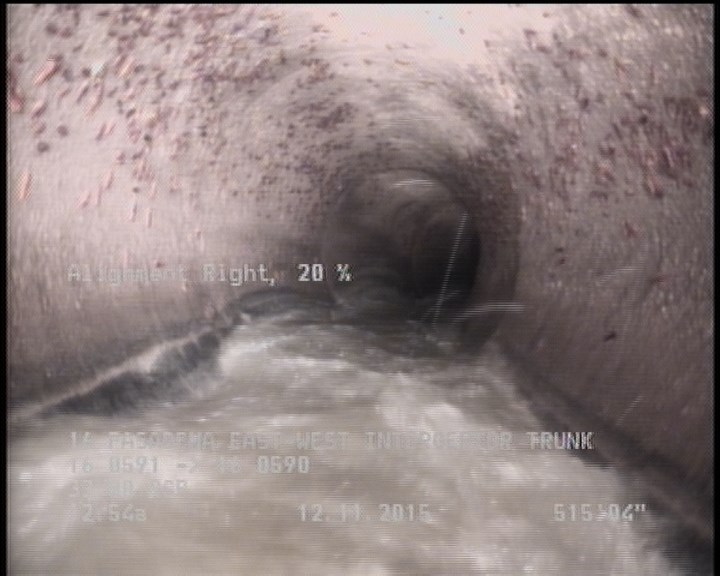

  • Alignment Right, 20 %, Start

    515.4 ft. - Alignment Right, 20 %, Start

All inspections of P13641Work order 531059

Observations (15)

DistanceCodeObservation
0AMH16 0591
2.6MGOMAGNEZIUM H.O. START
0MWM—
596.8LR—
632.3SAV—
632.3DAGS—
632.3MGOMAGNEZIUM H.O. FINISH
91.9VC—
2.6DAGS—
2.6SAV—
515.4LR—
0MGOLATERAL AT MH 9 OCLOCK ACTIVE
0MWL—
636AMH16 0590
0VC—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2015-12-11T00:40:02-08:00
documentation
PRO PIPE
is_lateral_inspection
false
