Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 11, 2015, 06:20 AM

  • 16 0595_16 0594_20151210_225131.mp4

Date
12/10/2015
W/O
531059
Weather
Light Rain
Operator/Surveyor
R.VARGAS
Sewer ID
Z00664
PipeID
P13645
Time
10:20 PM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3007
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
10
Purpose
Routine Assessment
Project
WO_531059_TV16030_OCT2015
Sewer Type
GRAVITY
Material
Reinforced Concrete Pipe
Shape
Circular
Height
39 in.
Upstream MH
16 0595
Downstream MH
16 0594
Dir. of Survey
Downstream
Length Surveyed
552.9 ft.
Total Length
552.9 ft.
Structural Index
3
Structural Quick
3U00
Structural Rating
324
O&M Index
2
O&M Quick
2U13
O&M Rating
219
Overall Index
2
Overall Quick
—
Overall Rating
543
Pipe schematic from manhole 16 0595 to 16 0594
MH: 16 0595MH: 16 0594downstream0 ft. VC - Vermin Cockroach0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 16 05952.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.1 ft. MGO - General Observation - MAGNEZIUM H.O. START2.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start214.6 ft. VC - Vermin Cockroach544.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish544.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish544.3 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH552.9 ft. AMH - Downstream Manhole, Survey Ends - 16 0594552.9 ft. VC - Vermin Cockroach552.9 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK ACTIVE

Observation photos (2)

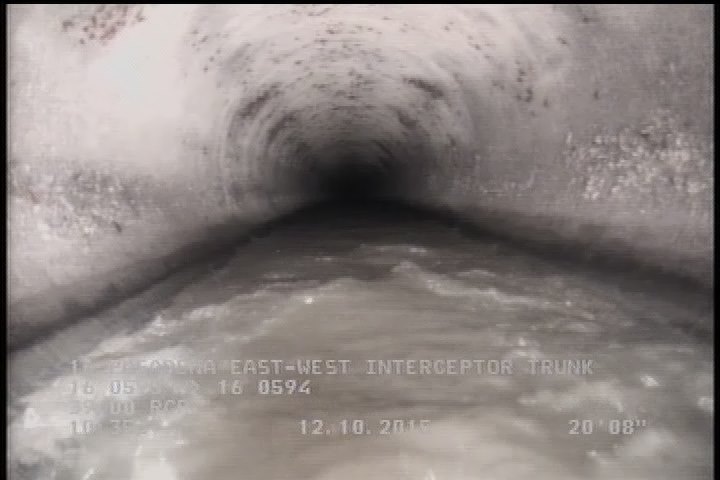

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

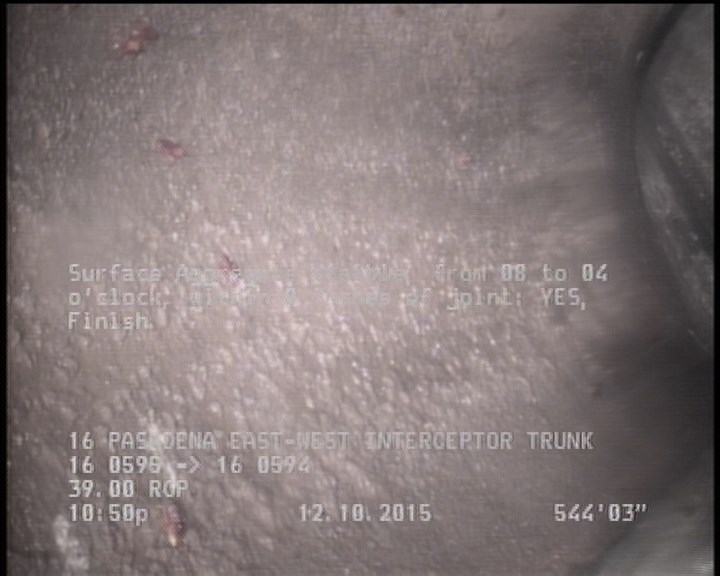

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

    544.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

All inspections of P13645Work order 531059

Observations (15)

DistanceCodeObservation
544.3DAGS—
552.9AMH16 0594
544.3SAV—
0VC—
552.9VC—
2.1DAGS—
0MWM—
0MWL—
2.1MGOMAGNEZIUM H.O. START
0MGOLATERAL AT MH 9 OCLOCK ACTIVE
552.9MGOLATERAL AT MH 9 OCLOCK ACTIVE
544.3MGOMAGNEZIUM H.O. FINISH
2.1SAV—
0AMH16 0595
214.6VC—

Properties (6)

additional_info
SC205699
custom_field_two
3
customer
LACSD
datetime
2015-12-10T22:20:52-08:00
documentation
PRO PIPE
is_lateral_inspection
false
