Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 9, 2016, 05:50 PM

  • 22 0668_22 0667_20160509_120650.mp4

Date
05/09/2016
W/O
568953
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00827
PipeID
P17017
Time
10:50 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3247
Sewer Name
22 SUNFLOWER TRUNK
City
SAN DIMAS
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
22
Purpose
Routine Assessment
Project
WO_568953_TV22063_MAY2016
Sewer Type
GRAVITY
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0668
Downstream MH
22 0667
Dir. of Survey
Downstream
Length Surveyed
363.2 ft.
Total Length
363.2 ft.
Structural Index
3
Structural Quick
3M00
Structural Rating
213
O&M Index
2
O&M Quick
2M11
O&M Rating
145
Overall Index
2
Overall Quick
—
Overall Rating
358
Pipe schematic from manhole 22 0668 to 22 0667
MH: 22 0668MH: 22 0667downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 06680 ft. VC - Vermin Cockroach, within 8 inches of joint: NO0 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK2 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start2.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.6 ft. MGO - General Observation - Magnesium hydroxide coating start70.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"75.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"160 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"165.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"219.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"225 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"299.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"304.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"359 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish361.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish361.1 ft. MGO - General Observation - Magnesium hydroxide coating finish363.2 ft. AMH - Downstream Manhole, Survey Ends - 22 0667

Observation photos (2)

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

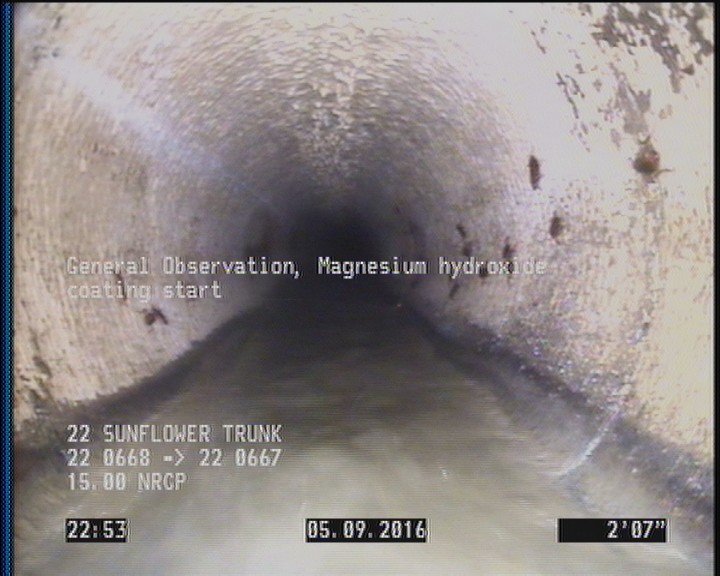

  • General Observation - Magnesium hydroxide coating start

    2.6 ft. - General Observation - Magnesium hydroxide coating start

All inspections of P17017Work order 568953

Observations (20)

DistanceCodeObservation
0MWM—
165.4TFC—
70.3TFC—
75.5TFA—
2.6DAGS—
2SAV—
160TFC—
361.1DAGS—
0MWL—
219.8TFC—
363.2AMH22 0667
0AMH22 0668
225TFC—
299.2TFC—
0VC—
0MGOCONNECTION AT THE MH 3 O'CLOCK
2.6MGOMagnesium hydroxide coating start
304.1TFA—
359SAV—
361.1MGOMagnesium hydroxide coating finish

Properties (6)

additional_info
SC305346
custom_field_two
3
customer
LACSD
datetime
2016-05-09T10:50:47-07:00
documentation
PRO PIPE
is_lateral_inspection
false
