Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 16, 2016, 02:10 PM

  • 22 0610_22 0609_20020101_014549.mp4

Date
05/16/2016
W/O
568953
Weather
Dry
Operator/Surveyor
J. VARGAS
Sewer ID
Z00827
PipeID
P16957
Time
7:10 AM
Certificate
U-209-8149
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3457
Sewer Name
22 SUNFLOWER TRUNK
City
COVINA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
27
Purpose
Routine Assessment
Project
WO_568953_TV22063_MAY2016
Sewer Type
GRAVITY
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0610
Downstream MH
22 0609
Dir. of Survey
Downstream
Length Surveyed
344.4 ft.
Total Length
344.4 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2211
O&M Rating
5
Overall Index
2
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 22 0610 to 22 0609
MH: 22 0610MH: 22 0609downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 06100 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH ACTIVE 9 OCLOCK0 ft. VC - Vermin Cockroach, within 8 inches of joint: NO2.1 ft. MGO - General Observation - MAG COATING2.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start2.1 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start40.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"68.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"92.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"100.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"136.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"150 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"152.9 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4"184.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"212.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"236.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"241.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"264.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"284.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"312.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"328 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"342 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish342 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish344.4 ft. AMH - Downstream Manhole, Survey Ends - 22 0609

Observation photos (3)

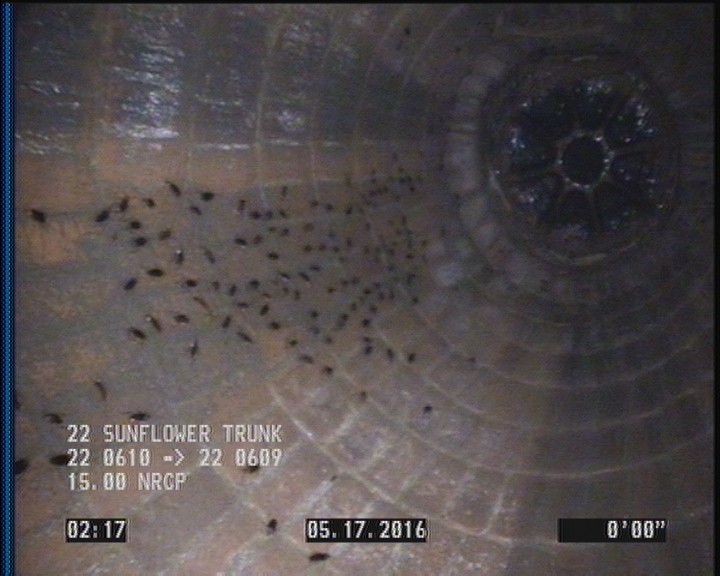

  • Vermin Cockroach, within 8 inches of joint: NO

    0 ft. - Vermin Cockroach, within 8 inches of joint: NO

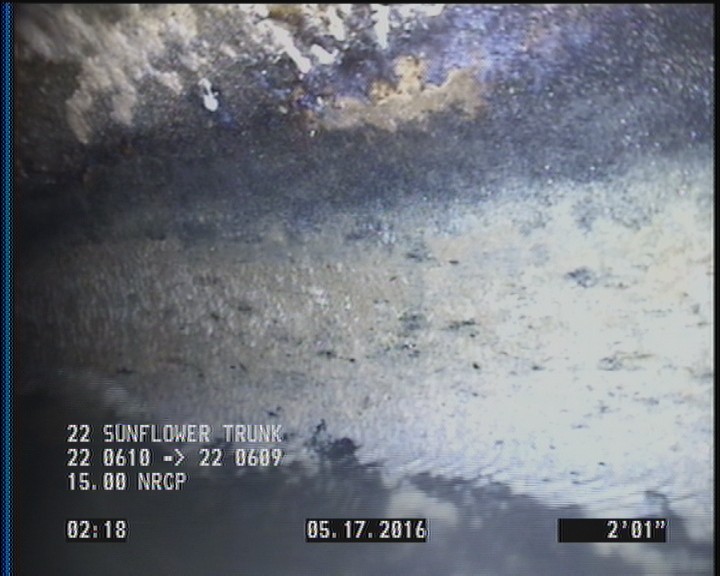

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

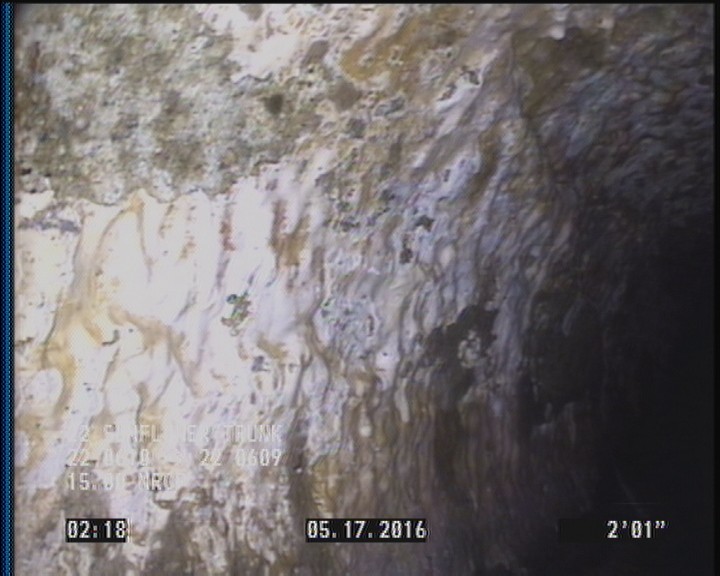

  • Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

All inspections of P16957Work order 568953

Observations (26)

DistanceCodeObservation
152.9TB—
2.1MGOMAG COATING
0AMH22 0610
40.9TFC—
0MWL—
0MWM—
184.6TFC—
100.6TFC—
344.4AMH22 0609
312.1TFA—
264.2TF—
68.5TFC—
92.7TFC—
284.2TF—
342SAV—
150TBA—
136.8TFC—
2.1DAGS—
2.1SAV—
342DAGS—
236.2TF—
241.4TF—
212.5TF—
0MGOCONNECTION AT MH ACTIVE 9 OCLOCK
328TFA—
0VC—

Properties (6)

additional_info
SC305479
custom_field_two
3
customer
LACSD
datetime
2016-05-16T07:10:27-07:00
documentation
PROPIPE
is_lateral_inspection
false
