Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 12, 2016, 04:57 PM

  • 22 0625_22 0624_20160512_111315.mp4

Date
05/12/2016
W/O
568953
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00827
PipeID
P16973
Time
9:57 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3250
Sewer Name
22 SUNFLOWER TRUNK
City
GLENDORA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
21
Purpose
Routine Assessment
Project
WO_568953_TV22063_MAY2016
Sewer Type
GRAVITY
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0625
Downstream MH
22 0624
Dir. of Survey
Downstream
Length Surveyed
221.6 ft.
Total Length
221.6 ft.
Structural Index
3
Structural Quick
3G00
Structural Rating
114
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
118
Pipe schematic from manhole 22 0625 to 22 0624
MH: 22 0625MH: 22 0624downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 06250 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. MGO - General Observation - Magnesium hydroxide coating 95%start7.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start21.2 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"27 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"29.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - WANDERING102 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"185.1 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"194.1 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: NO, 4"218.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish218.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish218.8 ft. MGO - General Observation - Magnesium hydroxide coating finish221.6 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK221.6 ft. AMH - Downstream Manhole, Survey Ends - 22 0624221.6 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK

Observation photos (7)

  • Upstream Manhole, Survey Begins - 22 0625

    0 ft. - Upstream Manhole, Survey Begins - 22 0625

  • General Observation - Magnesium hydroxide coating 95%start

    2 ft. - General Observation - Magnesium hydroxide coating 95%start

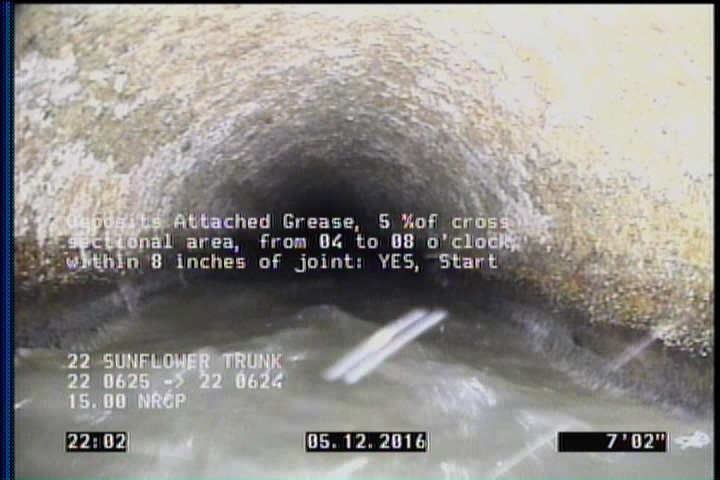

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    7.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"

    27 ft. - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - WANDERING

    29.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - WANDERING

  • Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"

    102 ft. - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

    218.8 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

All inspections of P16973Work order 568953

Observations (17)

DistanceCodeObservation
221.6MGOCONNECTION AT THE MH 9 O'CLOCK
7.2DAGS—
21.2TFC—
185.1TFC—
0AMH22 0625
2MGOMagnesium hydroxide coating 95%start
0MWL—
194.1TBA—
218.8DAGS—
221.6AMH22 0624
27TF—
102TFA—
218.8SAV—
29.2SAVWANDERING
221.6MGOCONNECTION AT THE MH 3 O'CLOCK
0MWM—
218.8MGOMagnesium hydroxide coating finish

Properties (6)

additional_info
SC305348
custom_field_two
3
customer
LACSD
datetime
2016-05-12T09:57:43-07:00
documentation
PRO PIPE
is_lateral_inspection
false
