Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 16, 2016, 02:10 PM

  • 22 0609_22 0608_20160517_041847.mp4

Date
05/16/2016
W/O
568953
Weather
Dry
Operator/Surveyor
J. VARGAS
Sewer ID
Z00827
PipeID
P16956
Time
7:10 AM
Certificate
U-209-8149
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3457
Sewer Name
22 SUNFLOWER TRUNK
City
COVINA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
27
Purpose
Routine Assessment
Project
WO_568953_TV22063_MAY2016
Sewer Type
GRAVITY
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0609
Downstream MH
22 0608
Dir. of Survey
Downstream
Length Surveyed
337.3 ft.
Total Length
337.3 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
201
O&M Index
2
O&M Quick
4131
O&M Rating
139
Overall Index
3
Overall Quick
—
Overall Rating
340
Pipe schematic from manhole 22 0609 to 22 0608
MH: 22 0609MH: 22 0608downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 06090 ft. MWL - Water Level, 20 %of cross sectional area2.2 ft. MGO - General Observation - MAG COATING2.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start14.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"50.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"86.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"97.7 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4"117.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4" - 85% ROOTS INSIDE181.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"201.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"217.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"256.9 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"281.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"334.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish334.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish337.3 ft. AMH - Downstream Manhole, Survey Ends - 22 0608

Observation photos (4)

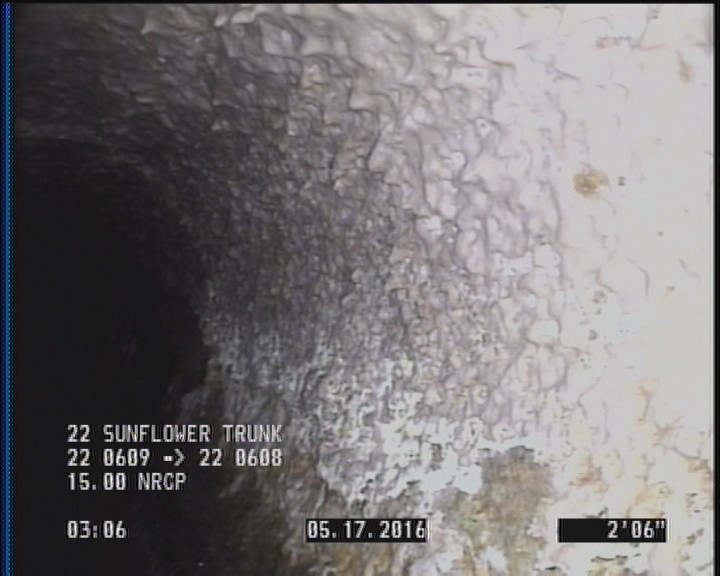

  • General Observation - MAG COATING

    2.2 ft. - General Observation - MAG COATING

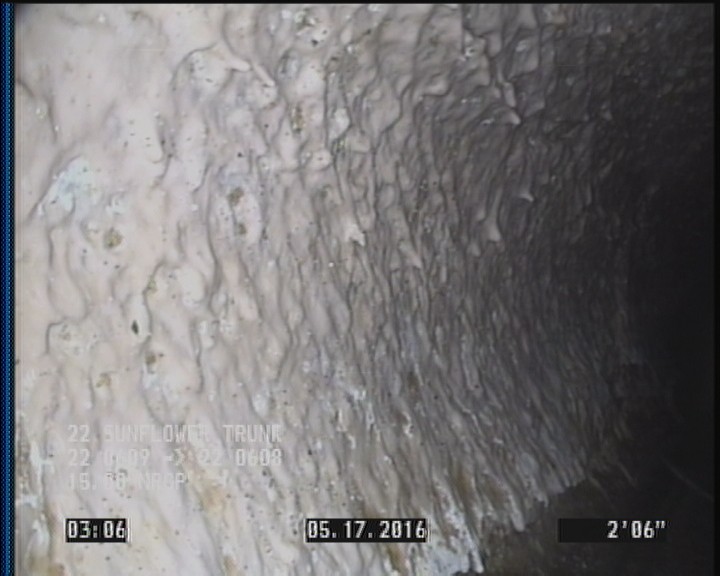

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

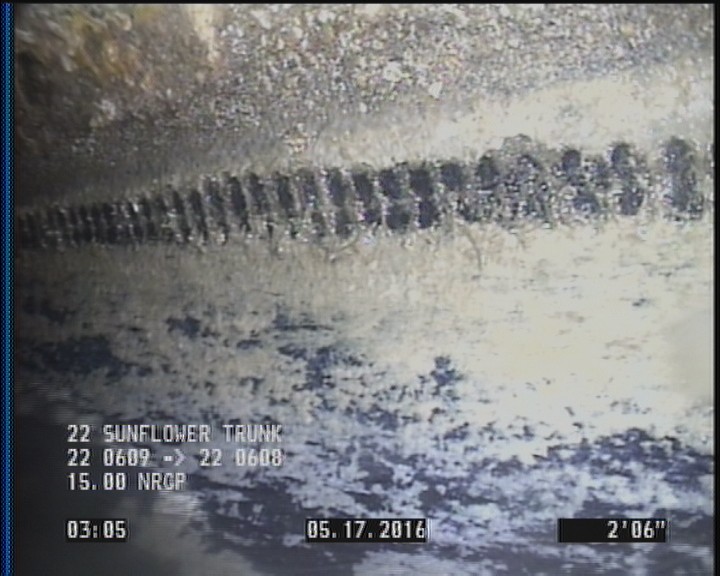

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

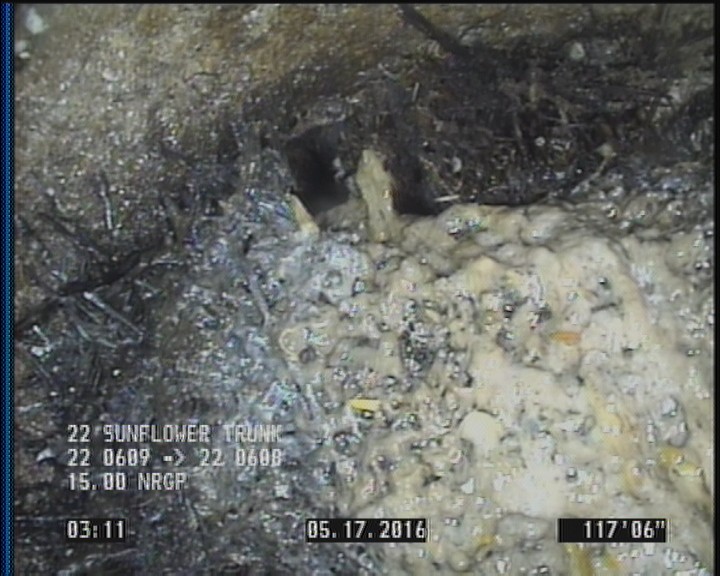

  • Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4" - 85% ROOTS INSIDE

    117.5 ft. - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4" - 85% ROOTS INSIDE

All inspections of P16956Work order 568953

Observations (19)

DistanceCodeObservation
2.2MGOMAG COATING
337.3AMH22 0608
181.9TF—
0MWM—
217.3TF—
2.2SAV—
256.9TFA—
14.3TFC—
0AMH22 0609
117.5TFA85% ROOTS INSIDE
0MWL—
201.5TF—
97.7TF—
334.9DAGS—
281.2TFA—
2.5DAGS—
334.9SAV—
50.2TF—
86.4TFA—

Properties (6)

additional_info
SC305479
custom_field_two
3
customer
LACSD
datetime
2016-05-16T07:10:27-07:00
documentation
PROPIPE
is_lateral_inspection
false
