Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 11, 2016, 07:21 AM

  • 22 0652_22 0651_20160511_013554.mp4

Date
05/11/2016
W/O
568953
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00827
PipeID
P17000
Time
12:21 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3248
Sewer Name
22 SUNFLOWER TRUNK
City
SAN DIMAS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
22
Purpose
Routine Assessment
Project
WO_568953_TV22063_MAY2016
Sewer Type
GRAVITY
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0652
Downstream MH
22 0651
Dir. of Survey
Downstream
Length Surveyed
333.1 ft.
Total Length
333.1 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
198
O&M Index
2
O&M Quick
2211
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
203
Pipe schematic from manhole 22 0652 to 22 0651
MH: 22 0652MH: 22 0651downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 06520 ft. MWM - Water Mark, 15 %of cross sectional area2 ft. MGO - General Observation - Magnesium hydroxide coating start2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start7.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start27.4 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"38.9 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"63.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"87.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"135.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"163.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"187.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"247.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"252.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"330 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish330.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish330.6 ft. MGO - General Observation - Magnesium hydroxide coating finish333.1 ft. AMH - Downstream Manhole, Survey Ends - 22 0651333.1 ft. VC - Vermin Cockroach333.1 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK

Observation photos (2)

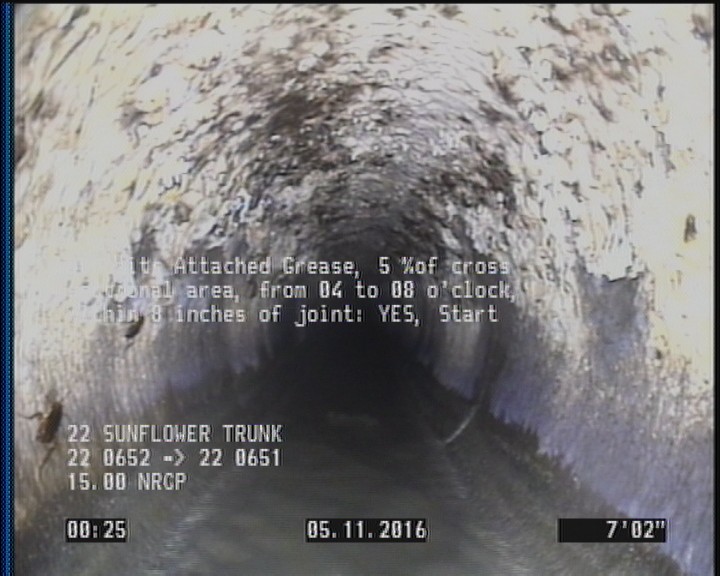

  • General Observation - Magnesium hydroxide coating start

    2 ft. - General Observation - Magnesium hydroxide coating start

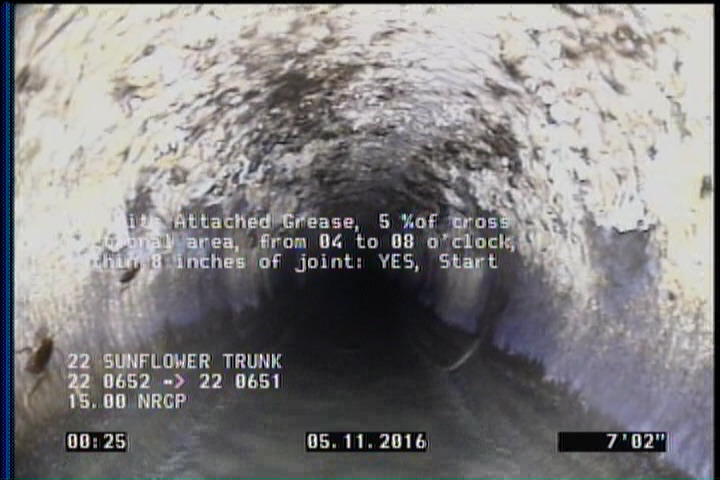

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    7.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P17000Work order 568953

Observations (21)

DistanceCodeObservation
330SAV—
87.3TF—
27.4TBA—
333.1AMH22 0651
333.1VC—
2MGOMagnesium hydroxide coating start
2SAV—
0MWL—
187.7TF—
0AMH22 0652
63.4TF—
333.1MGOCONNECTION AT THE MH 3 O'CLOCK
330.6DAGS—
7.1DAGS—
163.4TF—
330.6MGOMagnesium hydroxide coating finish
135.3TF—
247.9TF—
38.9TB—
0MWM—
252.1TFC—

Properties (6)

additional_info
SC305347
custom_field_two
3
customer
LACSD
datetime
2016-05-11T00:21:20-07:00
documentation
PRO PIPE
is_lateral_inspection
false
