Wastewater/Activity/PacpInspection/1.0May 12, 2016, 07:28 PM
22 0617_22 0616_20160512_135228.mp4
- Date
- 05/12/2016
- W/O
- 568953
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00827
- PipeID
- P16965
- Time
- 12:28 PM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3250
- Sewer Name
- 22 SUNFLOWER TRUNK
- City
- GLENDORA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_568953_TV22063_MAY2016
- Sewer Type
- GRAVITY
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 22 0617
- Downstream MH
- 22 0616
- Dir. of Survey
- Downstream
- Length Surveyed
- 436.9 ft.
- Total Length
- 436.9 ft.
- Structural Index
- 3
- Structural Quick
- 3P00
- Structural Rating
- 258
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 262
Observation photos (4)

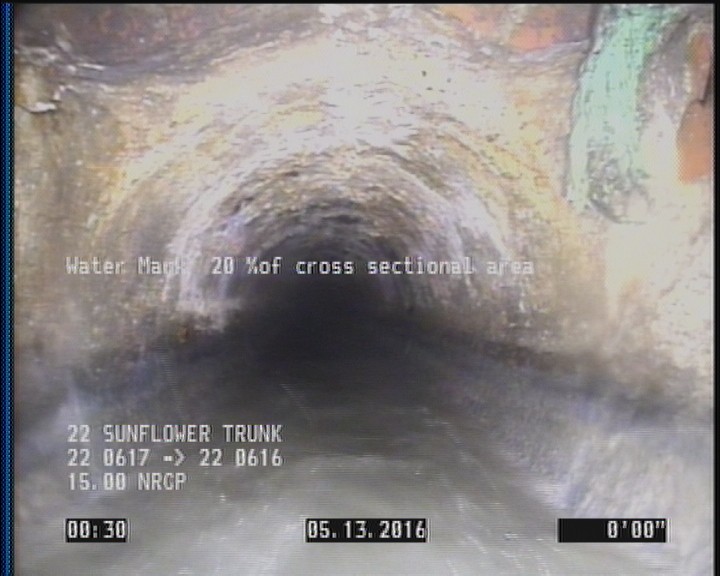

0 ft. - Water Mark, 20 %of cross sectional area

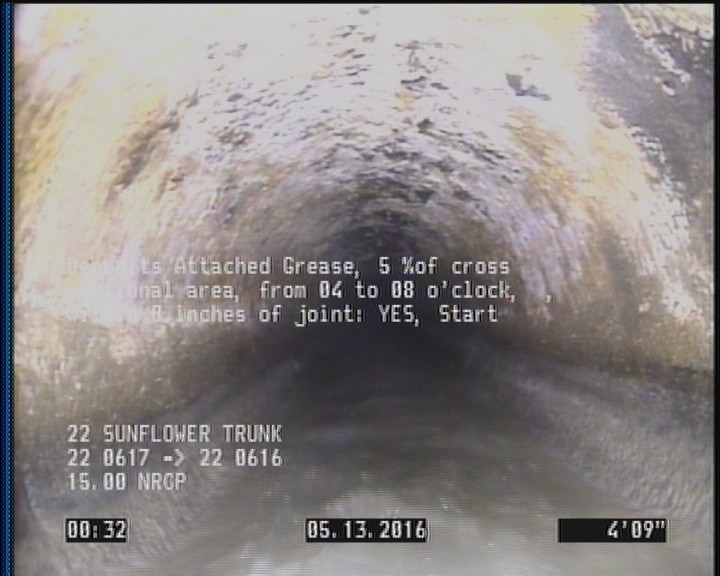

4.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

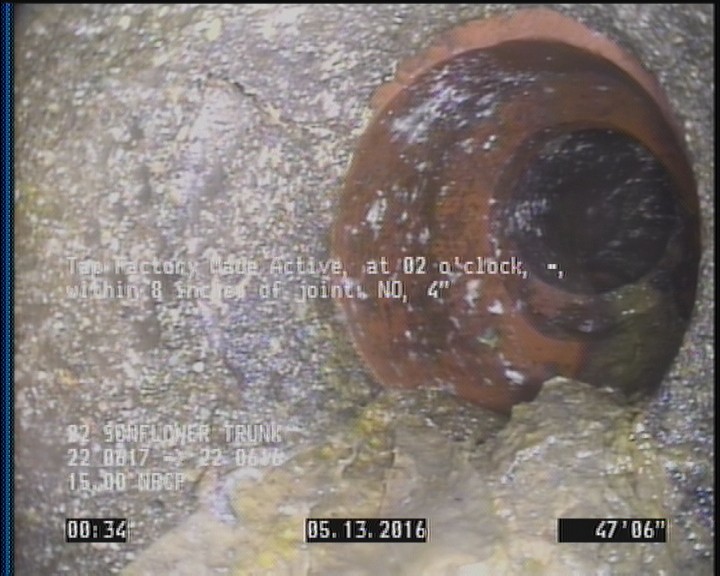

47.5 ft. - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"

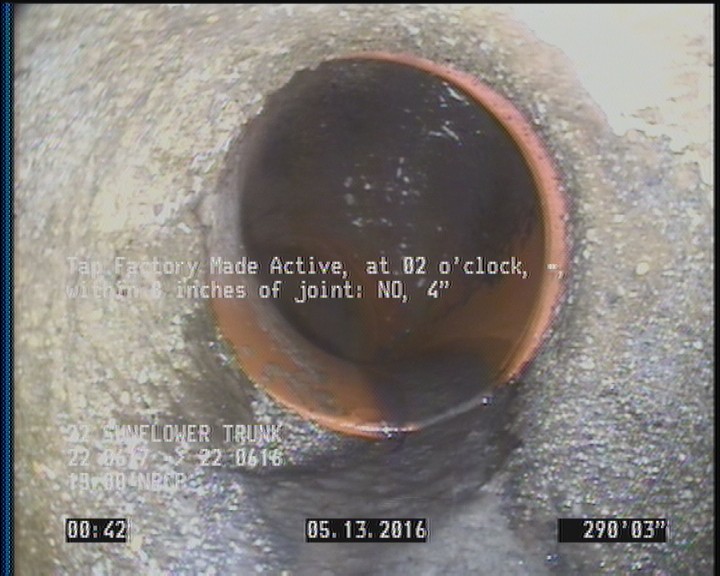

290.2 ft. - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"
Observations (24)
| Distance | Code | Observation |
|---|---|---|
| 122.5 | TFA | — |
| 0 | AMH | 22 0617 |
| 337.9 | TFC | — |
| 0 | MWL | — |
| 19.3 | TFA | — |
| 47.5 | TFA | — |
| 0 | MWM | — |
| 230.4 | TFA | — |
| 163.1 | TFA | — |
| 294.2 | TFA | — |
| 385.9 | TFA | — |
| 433.2 | DAGS | — |
| 235.3 | TFC | — |
| 4.8 | DAGS | — |
| 2 | MGO | Magnesium hydroxide coating 55% start |
| 71.6 | TFA | — |
| 2 | SAV | — |
| 390.7 | TFC | — |
| 436.1 | MGO | CONNECTION AT THE MH 9 O'CLOCK |
| 342.9 | TFC | — |
| 290.2 | TFA | — |
| 433 | SAV | — |
| 146.8 | TFA | — |
| 436.9 | AMH | 22 0616 |
Properties (6)
- additional_info
- SC305349
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-05-12T12:28:29-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
