Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 13, 2016, 10:24 AM

  • 22 0641_22 0640_20160513_044432.mp4

Date
05/13/2016
W/O
568953
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00827
PipeID
P16989
Time
3:24 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3250
Sewer Name
22 SUNFLOWER TRUNK
City
GLENDORA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
22
Purpose
Routine Assessment
Project
WO_568953_TV22063_MAY2016
Sewer Type
GRAVITY
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0640
Downstream MH
22 0641
Dir. of Survey
Upstream
Length Surveyed
332.3 ft.
Total Length
332.3 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
195
O&M Index
2
O&M Quick
2L00
O&M Rating
130
Overall Index
3
Overall Quick
—
Overall Rating
325
Pipe schematic from manhole 22 0640 to 22 0641
MH: 22 0640MH: 22 0641upstream0 ft. AMH - Upstream Manhole, Survey Ends - 22 06410.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish0.6 ft. MGO - General Observation - CONNECTION AT THE MH O'CLOCK0.6 ft. MGO - General Observation - Magnesium hydroxide coating finish80.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"108.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"132.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"156.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"180.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"209.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"230.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"257.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"278.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"308.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"323 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"325.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start325.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start330.3 ft. MGO - General Observation - Magnesium hydroxide coating 25% start332.3 ft. MWL - Water Level, 5 %of cross sectional area332.3 ft. AMH - Downstream Manhole, Survey Begins - 22 0640332.3 ft. MWM - Water Mark, 30 %of cross sectional area

Observation photos (6)

  • Downstream Manhole, Survey Begins - 22 0640

    0 ft. - Downstream Manhole, Survey Begins - 22 0640

  • General Observation - Magnesium hydroxide coating 25% start

    2 ft. - General Observation - Magnesium hydroxide coating 25% start

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    7.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

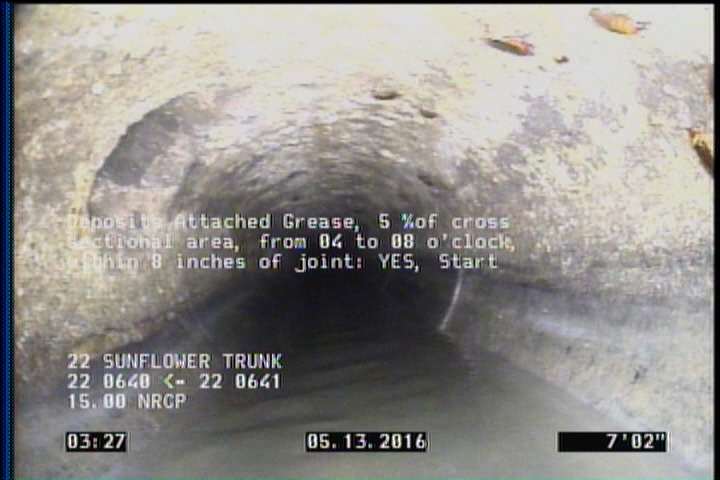

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    7.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"

    122.8 ft. - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"

  • General Observation - Magnesium hydroxide coating finish

    331.7 ft. - General Observation - Magnesium hydroxide coating finish

All inspections of P16989Work order 568953

Observations (22)

DistanceCodeObservation
200.1TFA—
23.7TFC—
7.1SAV—
151.4TFC—
0MWL—
331.7SAV—
332.3AMH22 0641
0AMH22 0640
251.9TFA—
331.7DAGS—
9.3TFC—
331.7MGOCONNECTION AT THE MH O'CLOCK
0MWM—
122.8TFA—
2MGOMagnesium hydroxide coating 25% start
102.1TFA—
74.5TFA—
54.2TFA—
331.7MGOMagnesium hydroxide coating finish
7.1DAGS—
175.5TFC—
223.9TFA—

Properties (6)

additional_info
SC305349
custom_field_two
3
customer
LACSD
datetime
2016-05-13T03:24:42-07:00
documentation
PRO PIPE
is_lateral_inspection
false
