Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 12, 2016, 06:49 PM

  • 22 0619_22 0618_20160512_130242.mp4

Date
05/12/2016
W/O
568953
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00827
PipeID
P16967
Time
11:49 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3250
Sewer Name
22 SUNFLOWER TRUNK
City
GLENDORA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
21
Purpose
Routine Assessment
Project
WO_568953_TV22063_MAY2016
Sewer Type
SIPHON
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0619
Downstream MH
22 0618
Dir. of Survey
Downstream
Length Surveyed
231.6 ft.
Total Length
231.6 ft.
Structural Index
3
Structural Quick
3H00
Structural Rating
132
O&M Index
2
O&M Quick
2H00
O&M Rating
88
Overall Index
3
Overall Quick
—
Overall Rating
220
Pipe schematic from manhole 22 0619 to 22 0618
MH: 22 0619MH: 22 0618downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 06190 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. MGO - General Observation - Magnesium hydroxide coating 75% start7.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start7.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start12.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"16.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"108.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"121.1 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"133 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"157.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"205.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"229.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish229.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish231.6 ft. AMH - Downstream Manhole, Survey Ends - 22 0618231.6 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK

Observation photos (4)

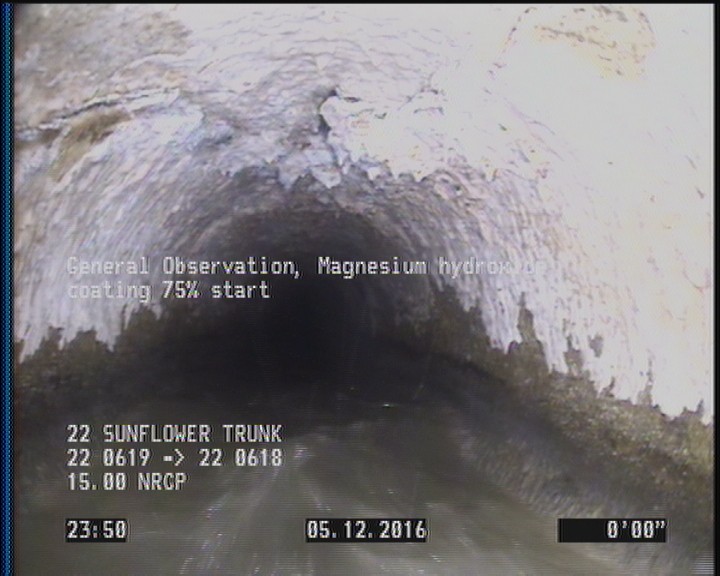

  • General Observation - Magnesium hydroxide coating 75% start

    2 ft. - General Observation - Magnesium hydroxide coating 75% start

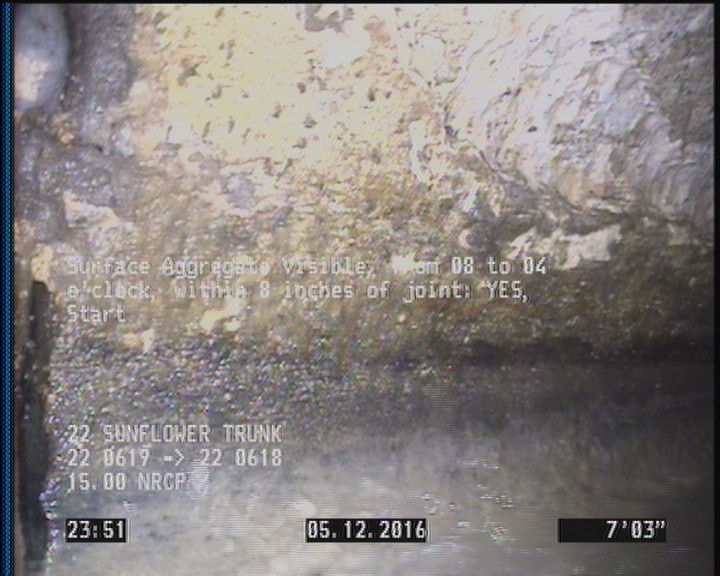

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    7.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

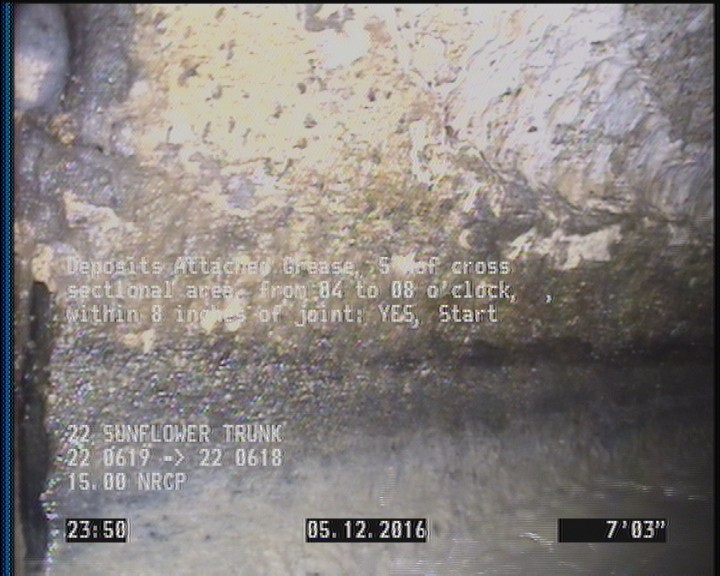

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    7.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

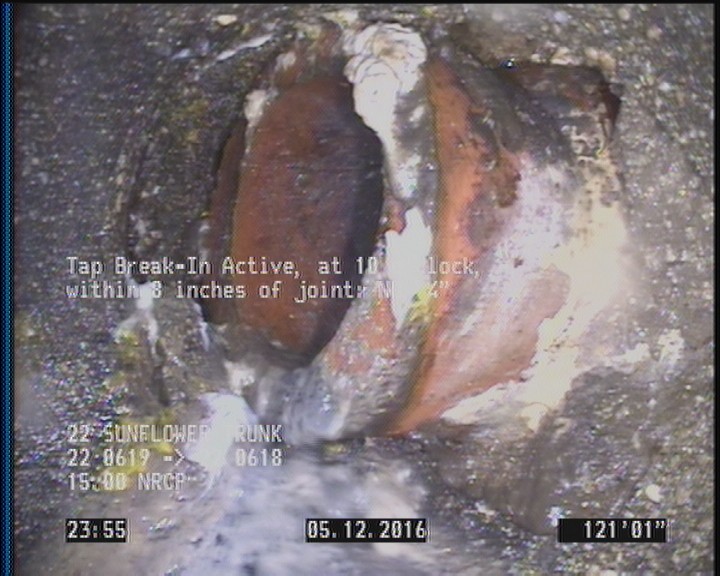

  • Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"

    121.1 ft. - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"

All inspections of P16967Work order 568953

Observations (17)

DistanceCodeObservation
12.2TFA—
231.6AMH22 0618
229.1DAGS—
0MWL—
121.1TBA—
7.3SAV—
0AMH22 0619
157.3TFC—
0MWM—
7.3DAGS—
2MGOMagnesium hydroxide coating 75% start
133TFC—
231.6MGOCONNECTION AT THE MH 9 O'CLOCK
229.1SAV—
108.8TFC—
205.3TFC—
16.5TFC—

Properties (6)

additional_info
SC305349
custom_field_two
3
customer
LACSD
datetime
2016-05-12T11:49:00-07:00
documentation
PRO PIPE
is_lateral_inspection
false
