Wastewater/Activity/PacpInspection/1.0May 12, 2016, 09:25 PM
22 0626_22 0625_20160512_153829.mp4
- Date
- 05/12/2016
- W/O
- 568953
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00827
- PipeID
- P16974
- Time
- 2:25 PM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3250
- Sewer Name
- 22 SUNFLOWER TRUNK
- City
- GLENDORA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_568953_TV22063_MAY2016
- Sewer Type
- GRAVITY
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 22 0625
- Downstream MH
- 22 0626
- Dir. of Survey
- Upstream
- Length Surveyed
- 315.2 ft.
- Total Length
- 315.2 ft.
- Structural Index
- 3
- Structural Quick
- 3J00
- Structural Rating
- 159
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 124
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 283
Observation photos (4)

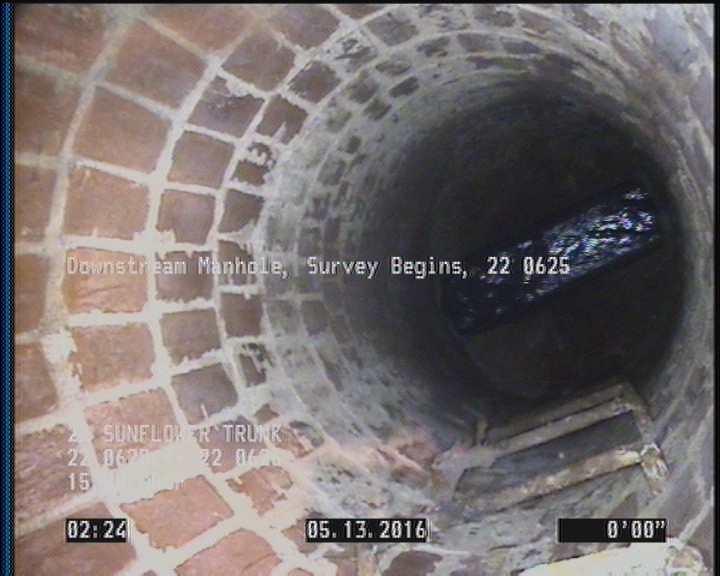

0 ft. - Downstream Manhole, Survey Begins - 22 0625
0 ft. - Water Mark, 25 %of cross sectional area
7.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
45 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 314.7 | DAGS | — |
| 2 | MGO | Magnesium hydroxide coating 95% start |
| 0 | AMH | 22 0625 |
| 246.5 | TFA | — |
| 106.1 | TFA | — |
| 44.7 | TFA | — |
| 0 | MWL | — |
| 308.7 | SAV | — |
| 0 | MWM | — |
| 45 | SAV | — |
| 315.2 | AMH | 22 0626 |
| 7.1 | DAGS | — |
Properties (6)
- additional_info
- SC305349
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-05-12T14:25:34-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
