Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 6, 2016, 08:11 AM

  • H 0552_H 0551_06052016_011201.mp4

Date
05/06/2016
W/O
568719
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00185
PipeID
P10976
Time
1:11 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3342
Sewer Name
H JOINT OUTFALL H - UNIT 8B
City
BALDWIN PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
24
Purpose
Routine Assessment
Project
WO_568719_TV15169_MAY2016
Sewer Type
GRAVITY
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
H 0552
Downstream MH
H 0551
Dir. of Survey
Downstream
Length Surveyed
477.8 ft.
Total Length
477.8 ft.
Structural Index
3
Structural Quick
3R2R
Structural Rating
475
O&M Index
2
O&M Quick
412R
O&M Rating
194
Overall Index
2
Overall Quick
—
Overall Rating
669
Pipe schematic from manhole H 0552 to H 0551
MH: H 0552MH: H 0551downstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK.0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 05520 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start30.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"224 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"231.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"360.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"468.5 ft. TBA - Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"476.3 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish476.3 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish476.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish477.8 ft. AMH - Downstream Manhole, Survey Ends - H 0551477.8 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (5)

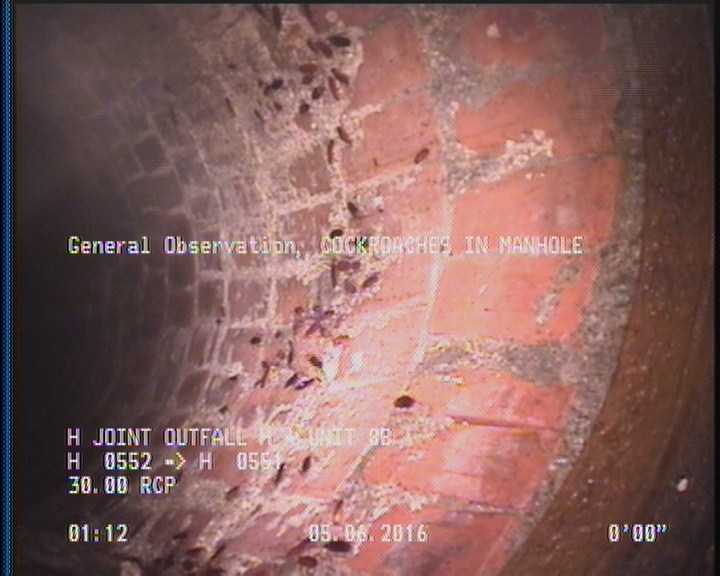

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

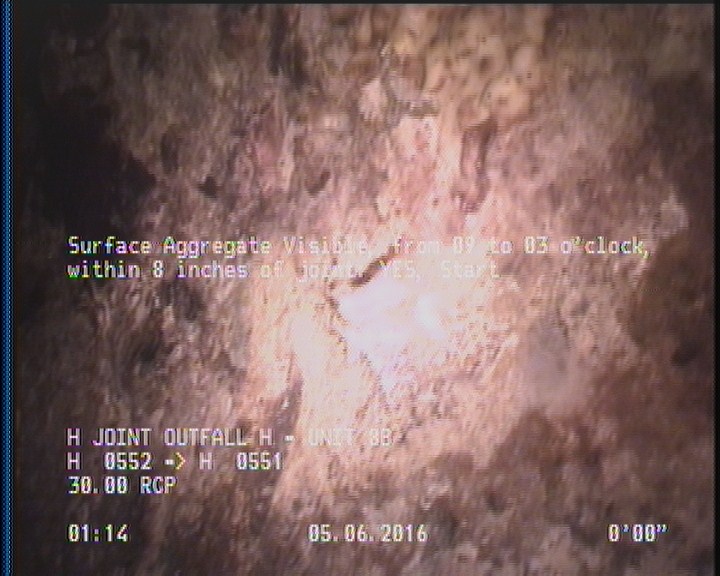

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

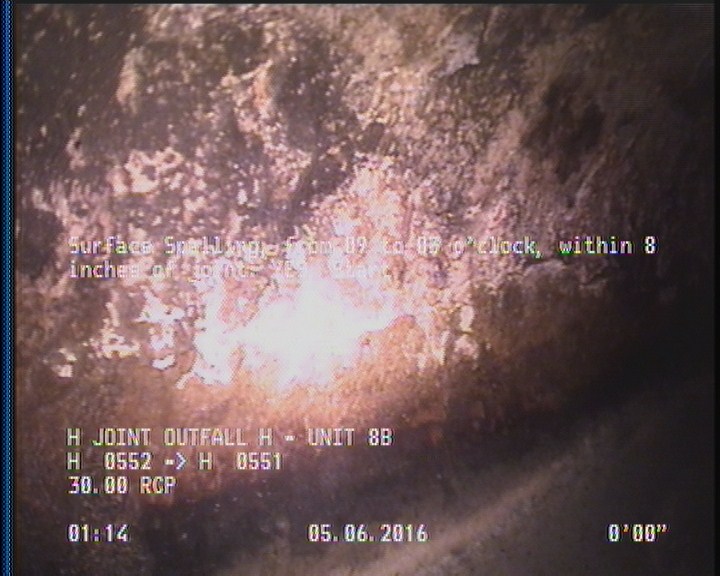

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

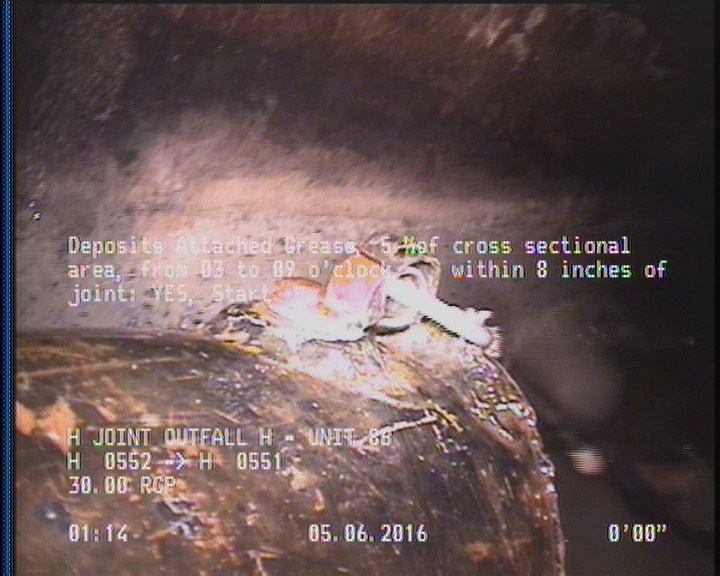

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

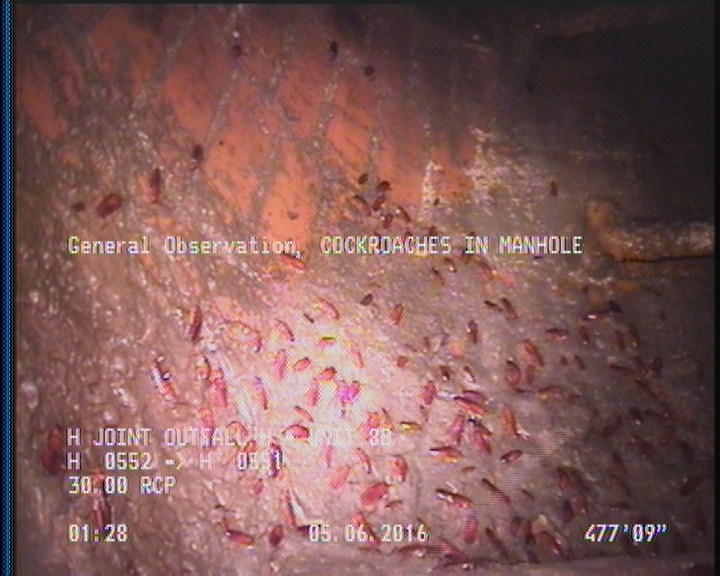

  • General Observation - COCKROACHES IN MANHOLE

    477.8 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P10976Work order 568719

Observations (18)

DistanceCodeObservation
468.5TBA—
360.6TFA—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK.
0MWL—
0AMHH 0552
477.8AMHH 0551
476.3SSS—
0MGOCOCKROACHES IN MANHOLE
476.3SAV—
2SAV—
0MWM—
476.3DAGS—
477.8MGOCOCKROACHES IN MANHOLE
30.4TFA—
2SSS—
2DAGS—
231.9TFC—
224TFC—

Properties (6)

additional_info
SC305619
custom_field_two
3
customer
LACSD
datetime
2016-05-06T01:11:46-07:00
documentation
PRO PIPE
is_lateral_inspection
false
