Wastewater/Activity/PacpInspection/1.0Sep 28, 2017, 07:41 AM
08 0621_08 0620_28092017_005337.mp4
- Date
- 09/28/2017
- W/O
- 657842
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00008
- PipeID
- P00660
- Time
- 12:41 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4890
- Sewer Name
- 08 GRACE STREET RELIEF TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_657842_TV08018_SEP2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 08 0621
- Downstream MH
- 08 0620
- Dir. of Survey
- Downstream
- Length Surveyed
- 392.3 ft.
- Total Length
- 392.3 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

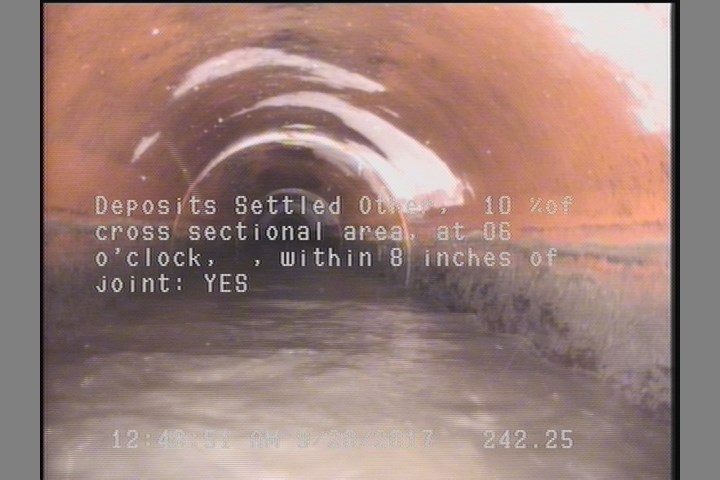

242.3 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES

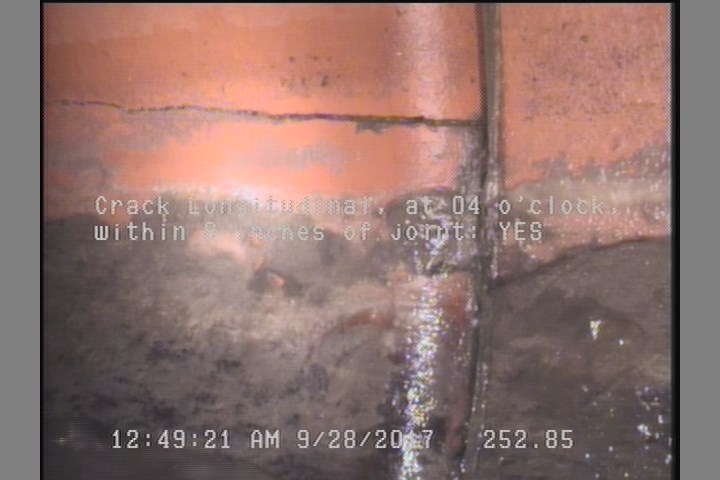

252.9 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 392.3 | AMH | 08 0620 |
| 242.3 | DSZ | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 08 0621 |
| 252.9 | CL | — |
| 391 | MGO | SPALLING THROUGHOUT THE REACH |
Properties (7)
- additional_info
- SC345950
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-28T00:41:17-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 30636
