Wastewater/Activity/PacpInspection/1.0Sep 25, 2017, 08:34 AM
H 0107_01 0715_25092017_014736.mpg
- Date
- 09/25/2017
- W/O
- 657840
- Weather
- Dry
- Operator/Surveyor
- CORTEZ ESTEBAN
- Sewer ID
- Z00199
- PipeID
- P02173
- Time
- 1:34 AM
- Certificate
- U-209-848
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4938
- Sewer Name
- 01 CALIFORNIA AVENUE EXTENSION TRUNK
- City
- HUNTINGTON PARK
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_657840_TV01117_SEP2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- H 0107
- Downstream MH
- 01 0715
- Dir. of Survey
- Downstream
- Length Surveyed
- 11.9 ft.
- Total Length
- 11.9 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 4
- O&M Quick
- 5232
- O&M Rating
- 16
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 22
Observation photos (3)

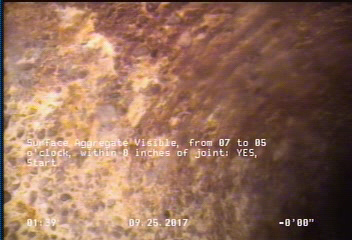

0 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start
0 ft. - Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS

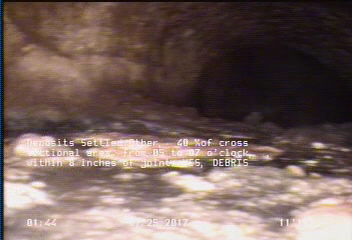

11.9 ft. - Deposits Settled Other, 40 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - DEBRIS
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | SAV | — |
| 0 | AMH | H 0107 |
| 11 | MGO | PEELING/FLAKING/SPALLING THROUGHOUT THE REACH |
| 11.8 | SAV | — |
| 11.9 | AMH | 01 0715 |
| 11.8 | DSZ | DEBRIS |
| 0 | MWL | — |
| 0 | DSZ | DEBRIS |
| 11.9 | DSZ | DEBRIS |
| 11.9 | DSZ | DEBRIS |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC345846
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-25T01:34:06-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
