Wastewater/Activity/PacpInspection/1.0Sep 19, 2017, 05:50 AM
14 0603_14 0209 _09182017_225341.mp4
- Date
- 09/18/2017
- W/O
- 657830
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00584
- PipeID
- P18249
- Time
- 10:50 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4728
- Sewer Name
- 14 WEST SIDE TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_657830_TV14033_SEP2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 14 0603
- Downstream MH
- 14 0209
- Dir. of Survey
- Downstream
- Length Surveyed
- 149.1 ft.
- Total Length
- 149.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 4124
- O&M Rating
- 12
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (1)

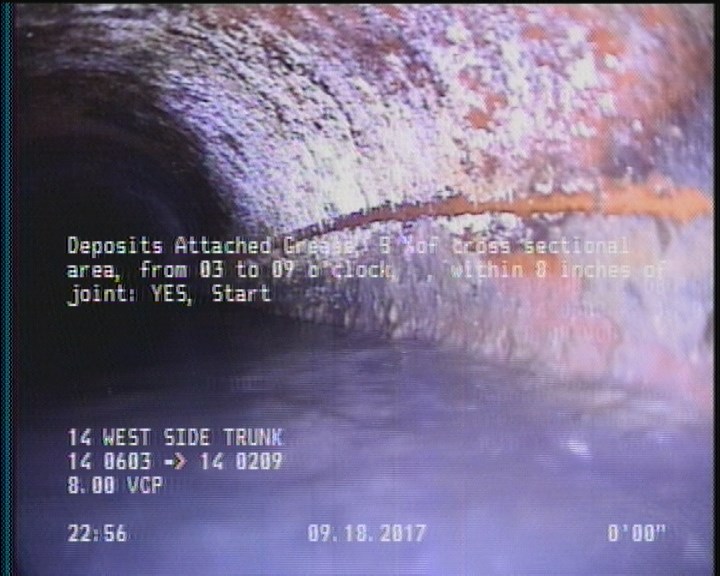

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 147.5 | DAGS | — |
| 149.1 | MGO | ACTIVE CONNECTION AT MH 12 O'CLOCK |
| 0 | AMH | 14 0603 |
| 42.4 | TFC | — |
| 2 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 147.5 | DSZ | — |
| 148 | MGO | SPALLING THROUGHOUT THE REACH |
| 0 | MWM | — |
| 149.1 | AMH | 14 0209 |
| 76.3 | DSZ | DEBRIS |
| 115.9 | TFC | — |
Properties (6)
- additional_info
- SC345741
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-18T22:50:34-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
