Wastewater/Activity/PacpInspection/1.0May 19, 2017, 08:07 AM
18 0742_18 0741 _20170519_011553.mp4
- Date
- 05/19/2017
- W/O
- 635639
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00706
- PipeID
- P14595
- Time
- 1:07 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4500
- Sewer Name
- 18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
- City
- WHITTIER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- WO_635639_TV18103_MAY2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- 18 0742
- Downstream MH
- 18 0741
- Dir. of Survey
- Downstream
- Length Surveyed
- 213.2 ft.
- Total Length
- 213.2 ft.
- Structural Index
- 2
- Structural Quick
- 513C
- Structural Rating
- 143
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 143
Observation photos (3)

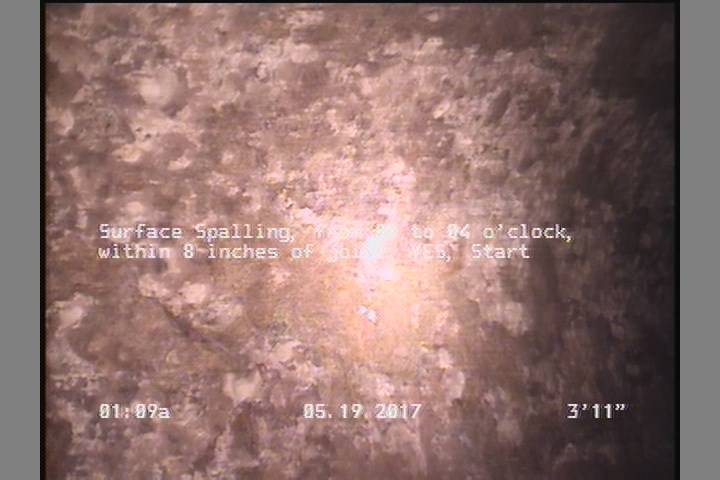

4 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

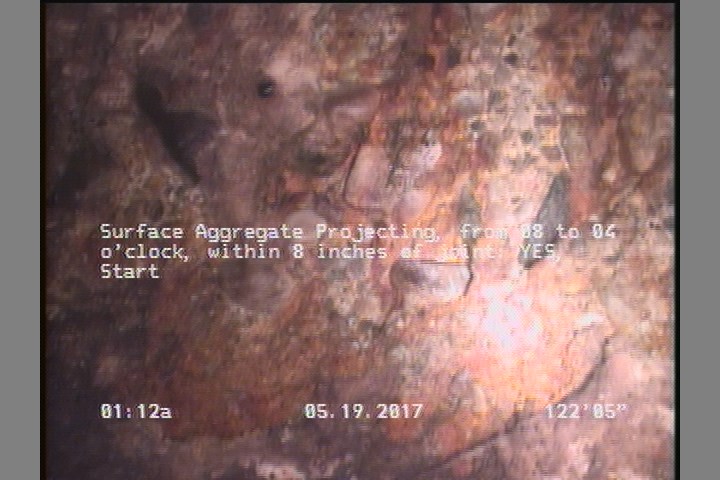

122.4 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

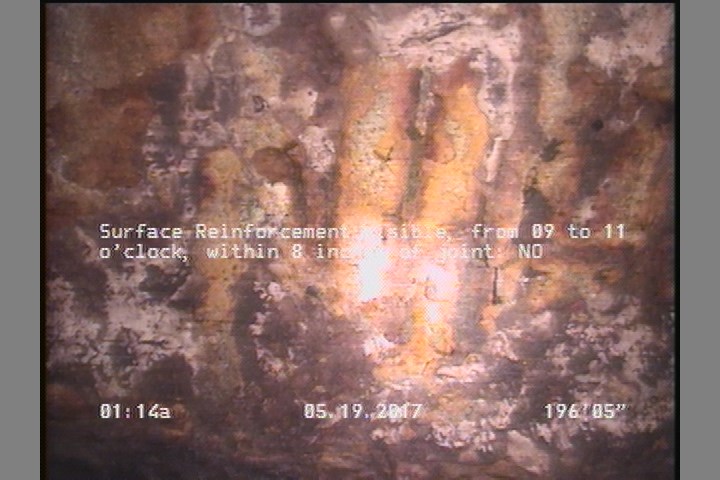

196.4 ft. - Surface Reinforcement Visible, from 09 to 11 o'clock, within 8 inches of joint: NO
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 212.7 | SAP | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
| 0 | AMH | 18 0742 |
| 4 | SSS | — |
| 196.4 | SRV | — |
| 122.4 | SAP | — |
| 213.2 | AMH | 18 0741 |
| 0 | MWL | — |
| 213.2 | SSS | — |
Properties (6)
- additional_info
- SC345310
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-05-19T01:07:23-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
