Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 19, 2017, 08:01 AM

  • 18 0743_18 0742 _20170519_010701.mp4

Date
05/19/2017
W/O
635639
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00706
PipeID
P14596
Time
1:01 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4500
Sewer Name
18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
City
WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
26
Purpose
Routine Assessment
Project
WO_635639_TV18103_MAY2017
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
18 0743
Downstream MH
18 0742
Dir. of Survey
Downstream
Length Surveyed
94.8 ft.
Total Length
94.8 ft.
Structural Index
4
Structural Quick
573B
Structural Rating
86
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
86
Pipe schematic from manhole 18 0743 to 18 0742
MH: 18 0743MH: 18 0742downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 07432.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start31 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start64.9 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish87.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish94.8 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK94.8 ft. AMH - Downstream Manhole, Survey Ends - 18 0742

Observation photos (2)

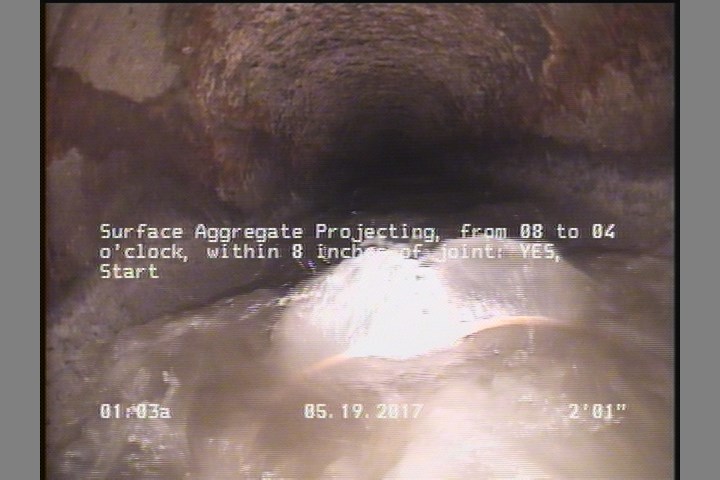

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

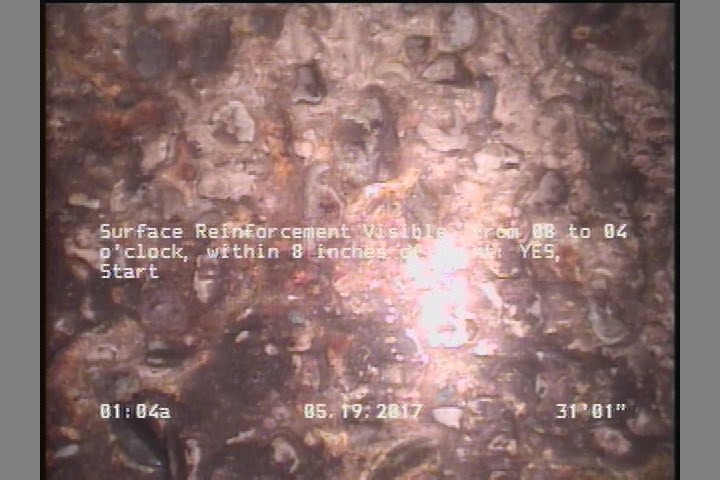

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    31 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P14596Work order 635639

Observations (9)

DistanceCodeObservation
0MWM—
31SRV—
0MWL—
94.8MGOCONNECTION AT MH 3 O'CLOCK
2.1SAP—
87.2SAP—
64.9SRV—
0AMH18 0743
94.8AMH18 0742

Properties (6)

additional_info
SC345310
custom_field_two
2
customer
LACSD
datetime
2017-05-19T01:01:04-07:00
documentation
PROPIPE
is_lateral_inspection
false
