Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 19, 2017, 06:38 AM

  • 18 0750_18 0749 _20170518_235747.mp4

Date
05/18/2017
W/O
635639
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00706
PipeID
P14603
Time
11:38 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4500
Sewer Name
18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
City
WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
26
Purpose
Routine Assessment
Project
WO_635639_TV18103_MAY2017
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
18 0750
Downstream MH
18 0749
Dir. of Survey
Downstream
Length Surveyed
422.8 ft.
Total Length
422.8 ft.
Structural Index
4
Structural Quick
5P3X
Structural Rating
784
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
784
Pipe schematic from manhole 18 0750 to 18 0749
MH: 18 0750MH: 18 0749downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 07500 ft. MWL - Water Level, 25 %of cross sectional area0.6 ft. MGO - General Observation - CONNECTION AT MH 6 O'CLOCK4.7 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start4.7 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start48.6 ft. SRP - Surface Reinforcement Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start250.2 ft. SRP - Surface Reinforcement Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish421.1 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish421.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish421.6 ft. MGO - General Observation - CONNECTION AT MH 7 O'CLOCK421.9 ft. MGO - General Observation - CONNECTION AT MH 12 O'CLOCK422.8 ft. AMH - Downstream Manhole, Survey Ends - 18 0749

Observation photos (3)

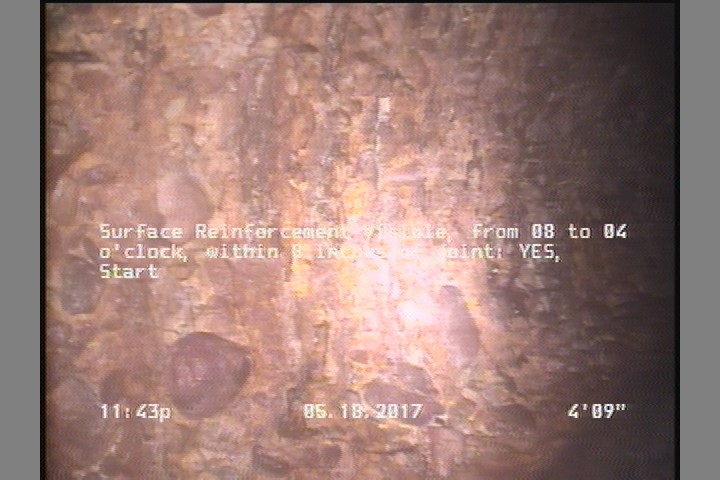

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.7 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

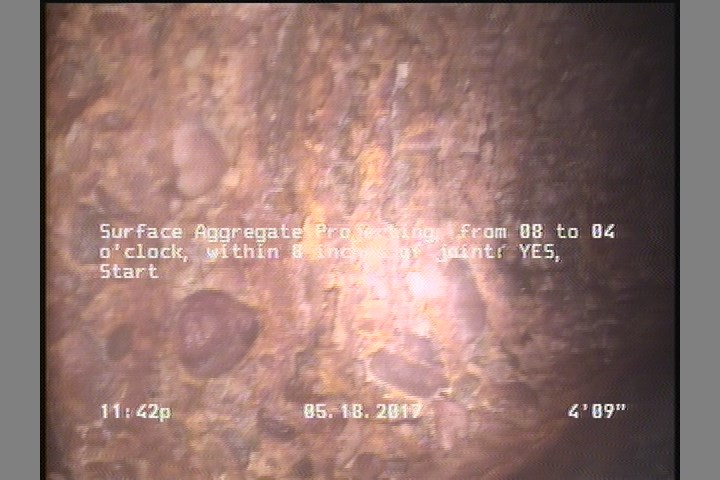

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.7 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

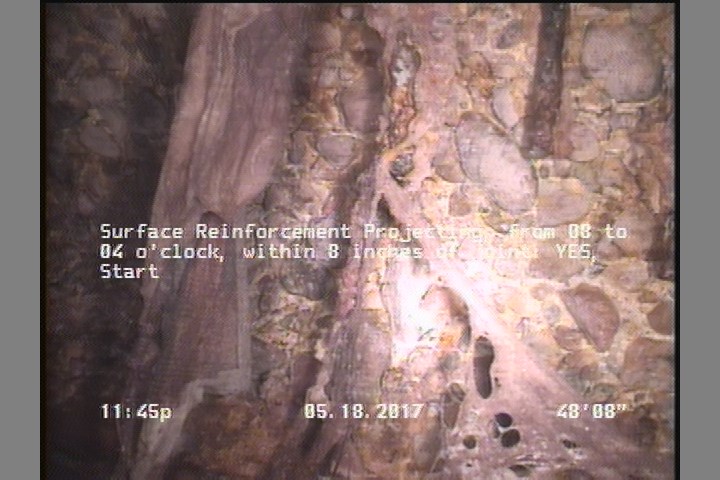

  • Surface Reinforcement Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    48.6 ft. - Surface Reinforcement Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P14603Work order 635639

Observations (13)

DistanceCodeObservation
421.9MGOCONNECTION AT MH 12 O'CLOCK
421.3SAP—
4.7SRV—
422.8AMH18 0749
0MWM—
4.7SAP—
421.6MGOCONNECTION AT MH 7 O'CLOCK
0AMH18 0750
421.1SRV—
0.6MGOCONNECTION AT MH 6 O'CLOCK
250.2SRP—
0MWL—
48.6SRP—

Properties (6)

additional_info
SC345310
custom_field_two
2
customer
LACSD
datetime
2017-05-18T23:38:17-07:00
documentation
PROPIPE
is_lateral_inspection
false
