Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 26, 2017, 07:07 AM

  • 08 0323_08 0322_26092017_000802.mpg

Date
09/26/2017
W/O
657837
Weather
Dry
Operator/Surveyor
CORTEZ ESTEBAN
Sewer ID
Z00013
PipeID
P00371
Time
12:07 AM
Certificate
U-209-8148
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4940
Sewer Name
08 KEYSTONE TRUNK
City
CARSON
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
13
Purpose
Routine Assessment
Project
WO_657837_TV08155_SEP2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
08 0323
Downstream MH
08 0322
Dir. of Survey
Downstream
Length Surveyed
247.8 ft.
Total Length
247.8 ft.
Structural Index
2
Structural Quick
2300
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 08 0323 to 08 0322
MH: 08 0323MH: 08 0322downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 08 03230 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH8.3 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES9.1 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 4"12.1 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start12.1 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start49.7 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 4"100.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 4"154.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 4"202.3 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 4"239.1 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Finish239.1 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Finish247.8 ft. AMH - Downstream Manhole, Survey Ends - 08 0322247.8 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH247.8 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH

Observation photos (3)

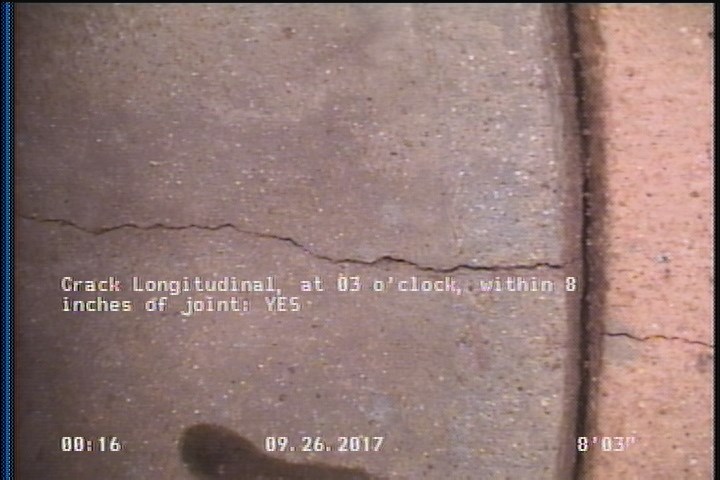

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    8.3 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

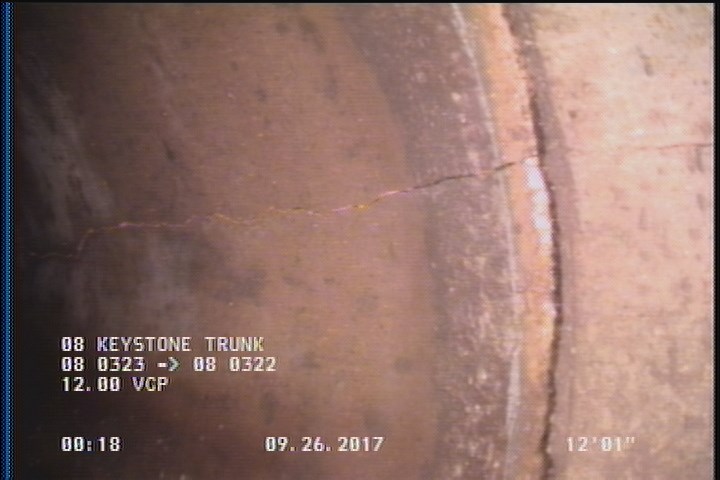

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start

    12.1 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start

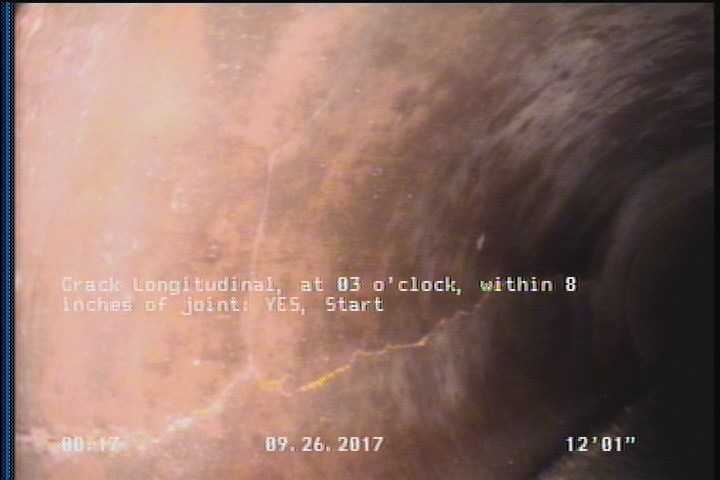

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start

    12.1 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start

All inspections of P00371Work order 657837

Observations (17)

DistanceCodeObservation
9.1TFC—
247.8AMH08 0322
239.1CL—
0MWL—
154.8TF—
0AMH08 0323
247.8MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
12.1CL—
49.7TFC—
100.9TF—
0MWM—
0MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
239.1CL—
12.1CL—
202.3TFC—
8.3CL—
247.8MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH

Properties (6)

additional_info
SC345849
custom_field_two
2
customer
LACSD
datetime
2017-09-26T00:07:32-07:00
documentation
PRO-PIPE
is_lateral_inspection
false
