Wastewater/Activity/PacpInspection/1.0Sep 23, 2016, 07:32 AM
02 0589_02 0588 _09232016_003244.mp4
- Date
- 09/23/2016
- W/O
- 592159
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00258
- PipeID
- P03133
- Time
- 12:32 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3716
- Sewer Name
- 02 EAST COMPTON BOULEVARD EXTENSION TRUNK
- City
- BELLFLOWER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_592159_TV02289_SEP2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 0588
- Downstream MH
- 02 0589
- Dir. of Survey
- Upstream
- Length Surveyed
- 280.9 ft.
- Total Length
- 280.9 ft.
- Structural Index
- 4
- Structural Quick
- 4800
- Structural Rating
- 32
- O&M Index
- 2
- O&M Quick
- 2J00
- O&M Rating
- 110
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 142
Observation photos (1)

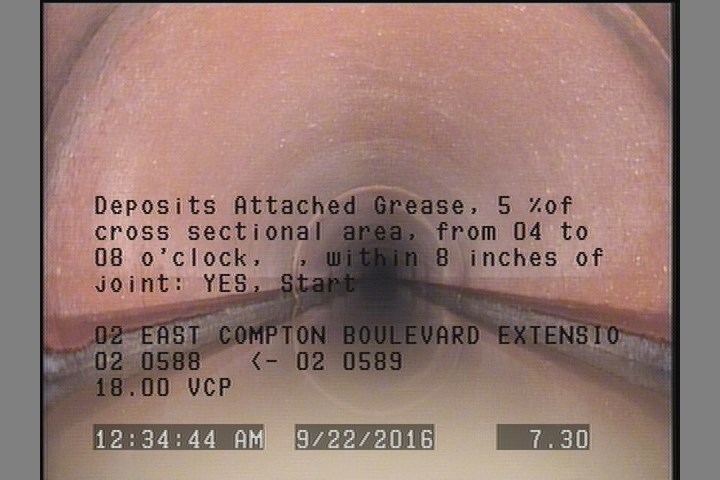

7.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 40.2 | TF | — |
| 150.6 | TFA | — |
| 280.9 | AMH | 02 0589 |
| 7.3 | DAGS | — |
| 0 | AMH | 02 0588 |
| 174.7 | TB | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 280 | MWLS | — |
| 238 | MWLS | — |
| 280.8 | DAGS | — |
Properties (6)
- additional_info
- SC303702
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-23T00:32:00-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
