Wastewater/Activity/PacpInspection/1.0Sep 23, 2016, 08:18 AM
02 0584_02 0583 _09232016_011828.mp4
- Date
- 09/23/2016
- W/O
- 592159
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00258
- PipeID
- P03128
- Time
- 1:18 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3716
- Sewer Name
- 02 EAST COMPTON BOULEVARD EXTENSION TRUNK
- City
- BELLFLOWER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_592159_TV02289_SEP2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 0584
- Downstream MH
- 02 0583
- Dir. of Survey
- Downstream
- Length Surveyed
- 326.9 ft.
- Total Length
- 326.9 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 130
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 133
Observation photos (2)

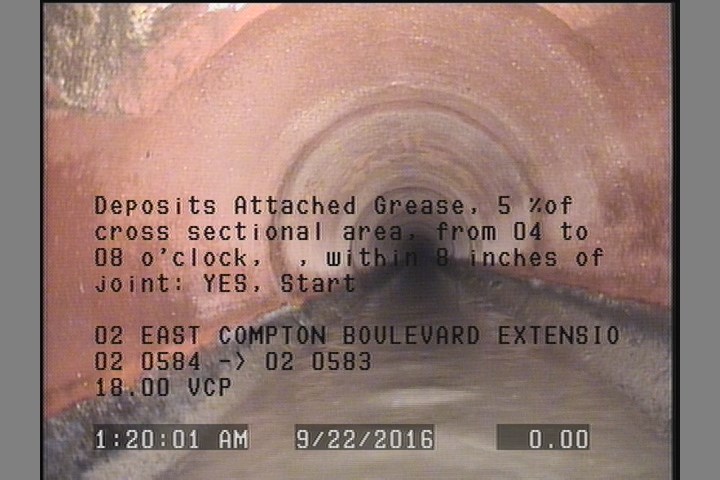

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

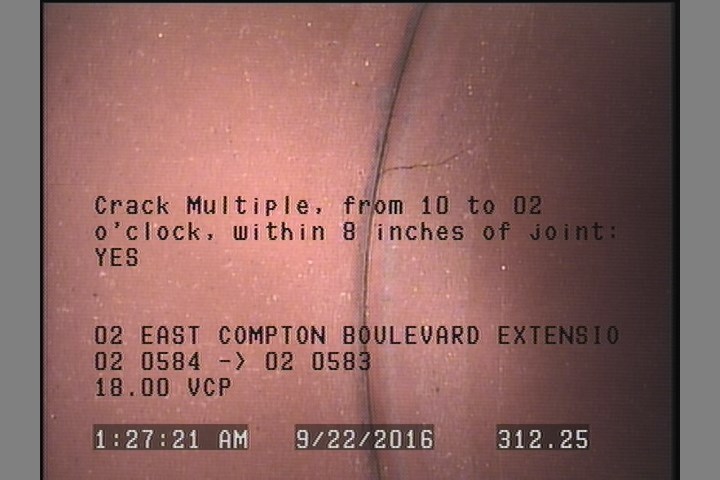

312.2 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 02 0584 |
| 326.9 | AMH | 02 0583 |
| 2 | DAGS | — |
| 0 | MWM | — |
| 324.6 | DAGS | — |
| 161.2 | TFA | — |
| 312.2 | CM | — |
| 0 | MWL | — |
| 264.9 | TFA | — |
| 34.9 | TF | — |
| 104 | TFA | — |
Properties (6)
- additional_info
- SC303702
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-23T01:18:41-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
