Wastewater/Activity/PacpInspection/1.0Sep 23, 2016, 09:35 AM
02 0594_02 0593 _09232016_023502.mp4
- Date
- 09/23/2016
- W/O
- 592159
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00258
- PipeID
- P03138
- Time
- 2:35 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3716
- Sewer Name
- 02 EAST COMPTON BOULEVARD EXTENSION TRUNK
- City
- BELLFLOWER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_592159_TV02289_SEP2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0594
- Downstream MH
- 02 0593
- Dir. of Survey
- Downstream
- Length Surveyed
- 353.1 ft.
- Total Length
- 353.1 ft.
- Structural Index
- 2
- Structural Quick
- 2211
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 140
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 145
Observation photos (4)

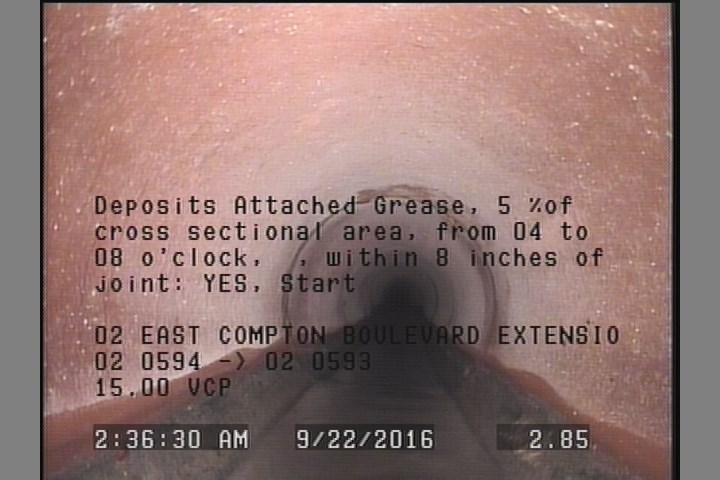

2.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

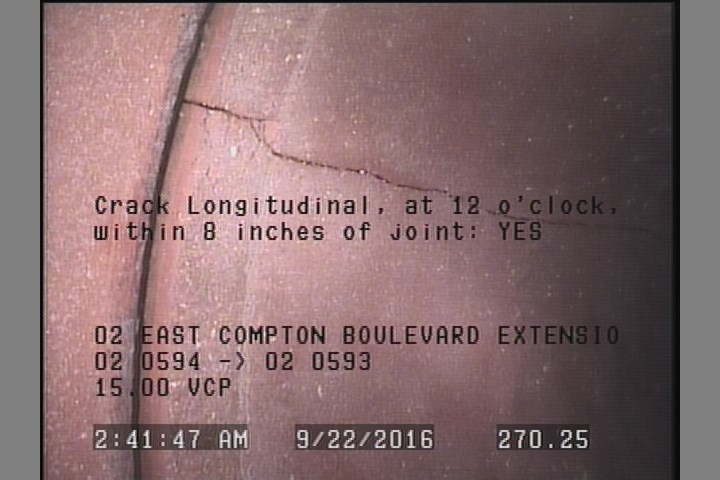

270.3 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

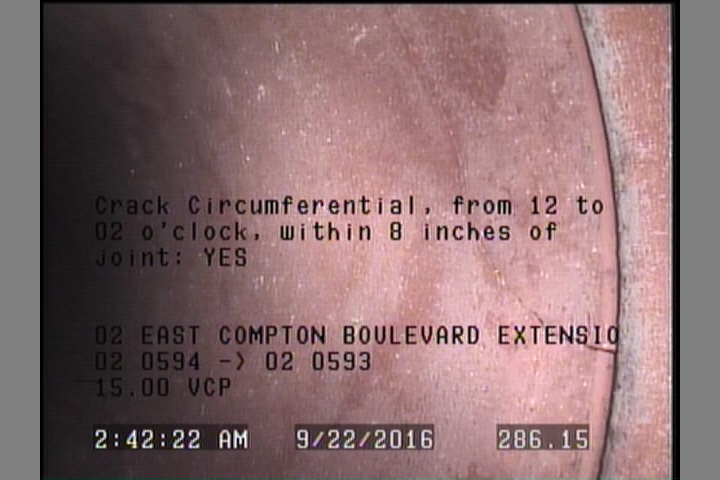

286.2 ft. - Crack Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES

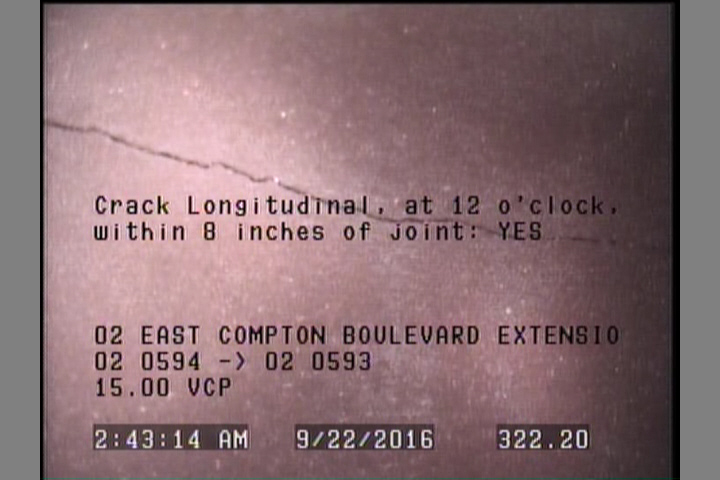

322.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 77.3 | TFA | — |
| 351.2 | DAGS | — |
| 353.1 | AMH | 02 0593 |
| 347.4 | TFA | — |
| 2.9 | DAGS | — |
| 286.2 | CC | — |
| 0 | MWL | — |
| 212.8 | TFA | — |
| 0 | MWM | — |
| 322.2 | CL | — |
| 0 | AMH | 02 0594 |
| 270.3 | CL | — |
Properties (6)
- additional_info
- SC303702
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-23T02:35:00-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
