Wastewater/Activity/PacpInspection/1.0Sep 23, 2016, 07:04 AM
02 0587_02 0586 _09232016_000348.mp4
- Date
- 09/23/2016
- W/O
- 592159
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00258
- PipeID
- P03131
- Time
- 12:04 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3716
- Sewer Name
- 02 EAST COMPTON BOULEVARD EXTENSION TRUNK
- City
- BELLFLOWER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_592159_TV02289_SEP2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 0587
- Downstream MH
- 02 0586
- Dir. of Survey
- Downstream
- Length Surveyed
- 348.3 ft.
- Total Length
- 348.3 ft.
- Structural Index
- 1
- Structural Quick
- 1300
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 138
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 141
Observation photos (4)

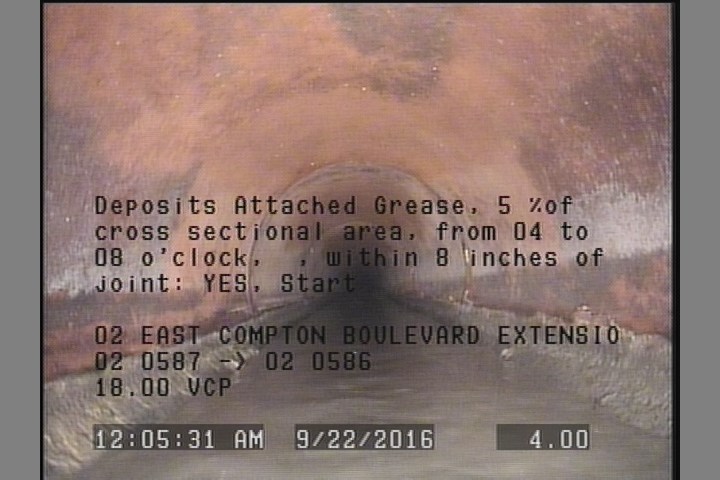

4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

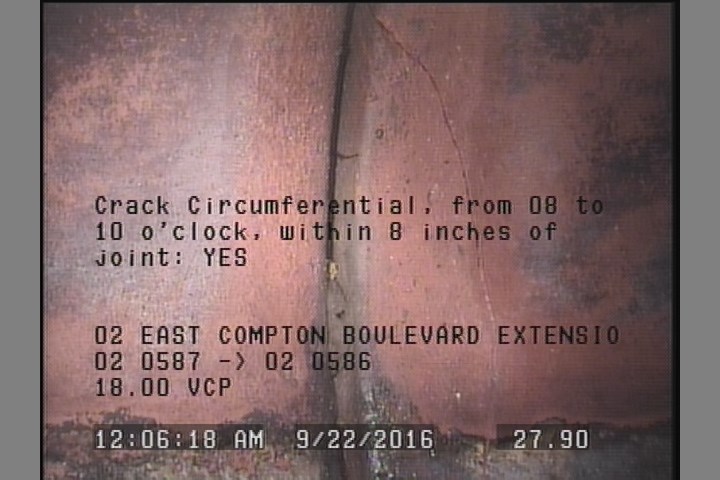

27.9 ft. - Crack Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES

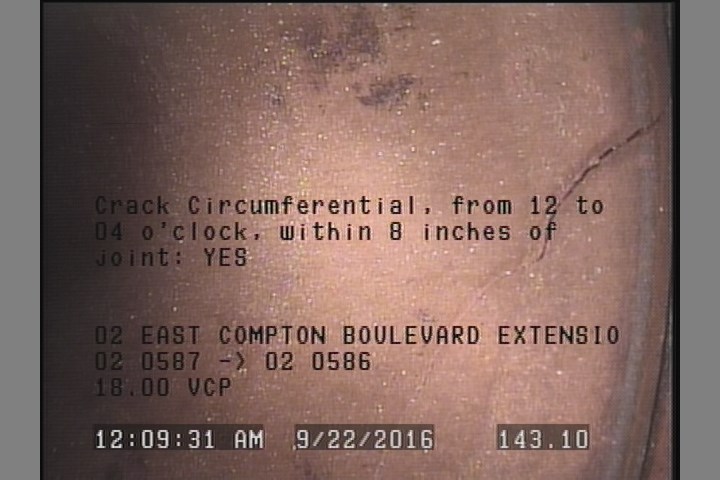

143.1 ft. - Crack Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES

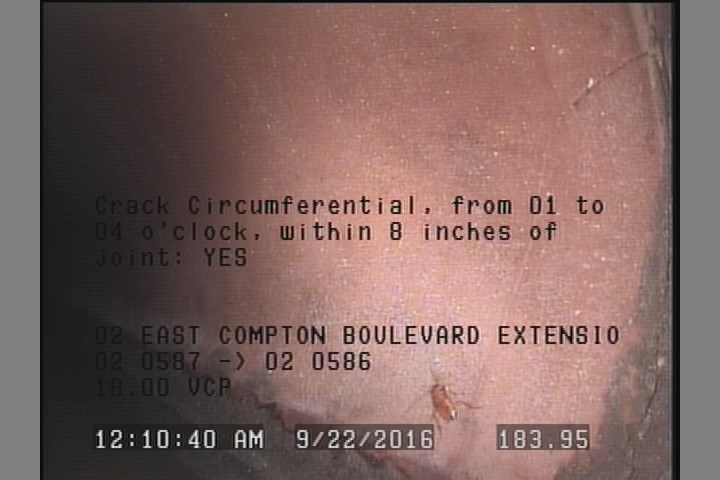

184 ft. - Crack Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | CONNECTION AT MH 3 ACTIVE |
| 48.2 | TF | — |
| 27.9 | CC | — |
| 0 | AMH | 02 0587 |
| 184 | CC | — |
| 0 | MWM | — |
| 206 | TFA | — |
| 348.3 | MGO | CONNECTION AT MH 9 ACTIVE |
| 142.6 | TFA | — |
| 346.8 | DAGS | — |
| 4 | DAGS | — |
| 0 | MWL | — |
| 143.1 | CC | — |
| 348.3 | AMH | 02 0586 |
Properties (6)
- additional_info
- SC303702
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-23T00:04:00-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
