Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 21, 2016, 09:11 AM

  • 02 1938_02 1937 _20161021_012047.mp4

Date
10/21/2016
W/O
592156
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00241
PipeID
P04280
Time
2:11 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3746
Sewer Name
02 CITY TERRACE TRUNK
City
LOS ANGELES, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
08
Purpose
Routine Assessment
Project
WO_592156_TV02040_SEP2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 1938
Downstream MH
02 1937
Dir. of Survey
Downstream
Length Surveyed
187 ft.
Total Length
187 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2F1D
O&M Rating
95
Overall Index
2
Overall Quick
—
Overall Rating
95
Pipe schematic from manhole 02 1938 to 02 1937
MH: 02 1938MH: 02 1937downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 19380 ft. VC - Vermin Cockroach0 ft. MWL - Water Level, 10 %of cross sectional area5.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start58 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"68.8 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"80 ft. LR - Alignment Right, 10 %, Start183.1 ft. LR - Alignment Right, 10 %, Finish185.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish187 ft. AMH - Downstream Manhole, Survey Ends - 02 1937187 ft. VC - Vermin Cockroach

Observation photos (3)

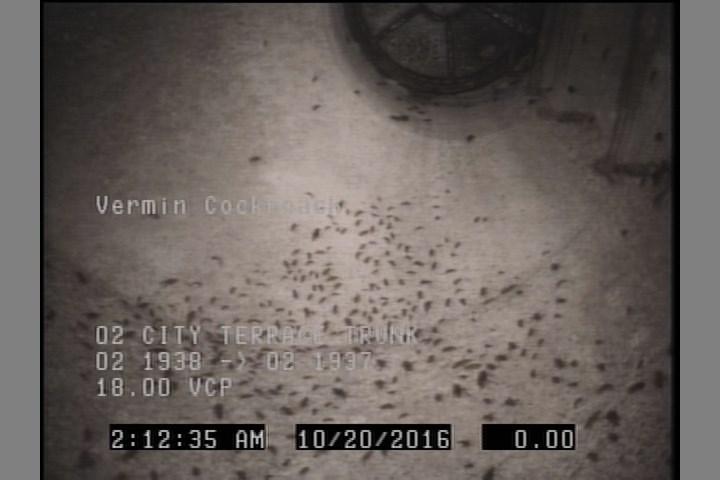

  • Vermin Cockroach

    0 ft. - Vermin Cockroach

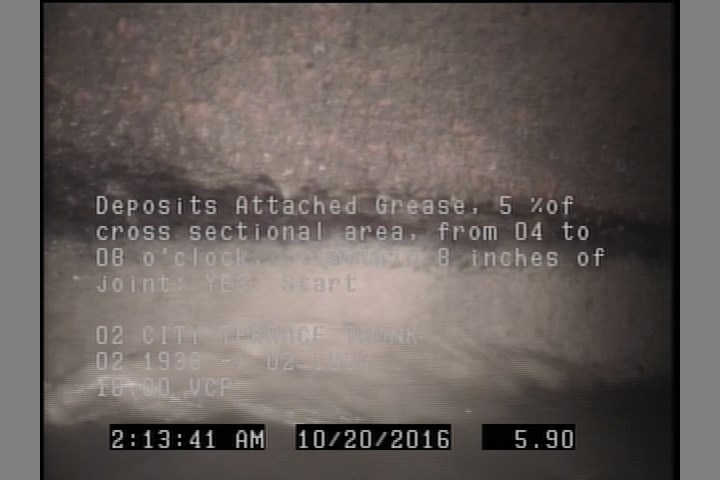

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    5.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

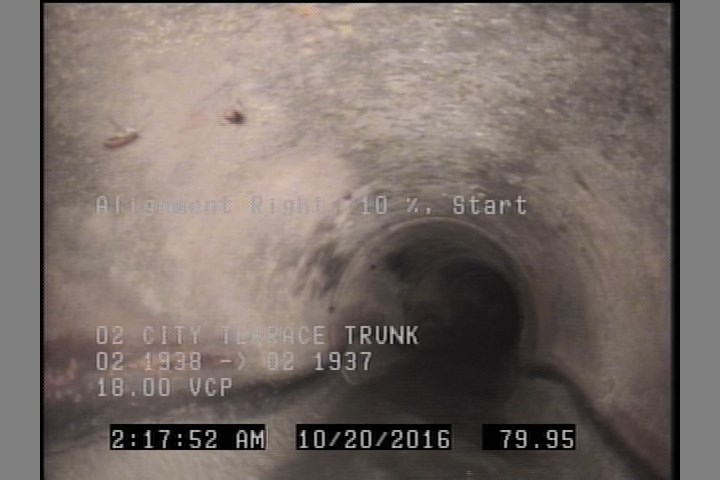

  • Alignment Right, 10 %, Start

    80 ft. - Alignment Right, 10 %, Start

All inspections of P04280Work order 592156

Observations (12)

DistanceCodeObservation
187AMH02 1937
58TFA—
0MWM—
183.1LR—
185.4DAGS—
0AMH02 1938
187VC—
5.9DAGS—
80LR—
0VC—
0MWL—
68.8TFA—

Properties (6)

additional_info
SC303735
custom_field_two
4
customer
LACSD
datetime
2016-10-21T02:11:05-07:00
documentation
PRO-PIPE
is_lateral_inspection
false
