Wastewater/Activity/PacpInspection/1.0Oct 26, 2016, 09:17 AM
02 1936_02 1329_20161026_012216.mp4
- Date
- 10/26/2016
- W/O
- 592156
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00241
- PipeID
- P04278
- Time
- 2:17 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3748
- Sewer Name
- 02 CITY TERRACE TRUNK
- City
- LOS ANGELES, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_592156_TV02040_SEP2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1329
- Downstream MH
- 02 1936
- Dir. of Survey
- Upstream
- Length Surveyed
- 7.1 ft.
- Total Length
- 7.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

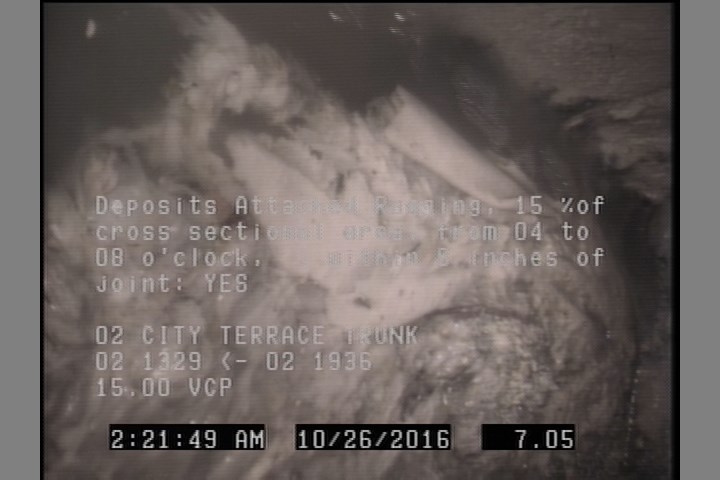

7.1 ft. - Deposits Attached Ragging, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

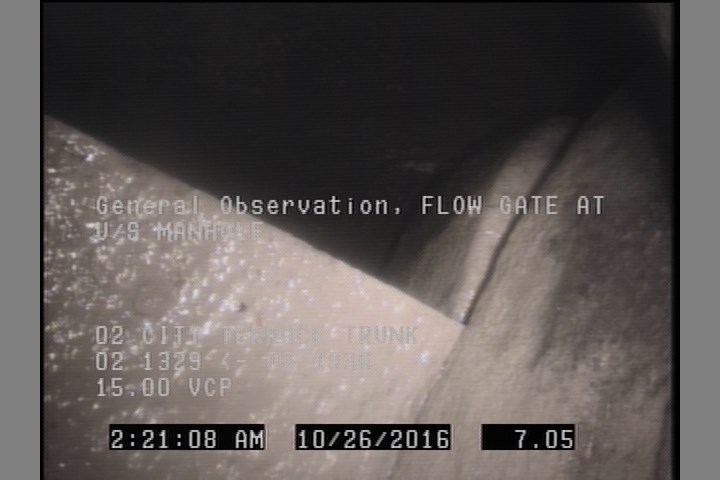

7.1 ft. - General Observation - FLOW GATE AT U/S MANHOLE
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 7.1 | DAR | — |
| 7.1 | AMH | 02 1936 |
| 7.1 | MGO | FLOW GATE AT U/S MANHOLE |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | 02 1329 |
Properties (6)
- additional_info
- SC303739
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-26T02:17:48-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
