Wastewater/Activity/PacpInspection/1.0Oct 21, 2016, 11:15 AM
02 2055_02 2054_20161021_032341.mp4
- Date
- 10/21/2016
- W/O
- 592156
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00241
- PipeID
- P04302
- Time
- 4:15 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3746
- Sewer Name
- 02 CITY TERRACE TRUNK
- City
- LOS ANGELES, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_592156_TV02040_SEP2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 2054
- Downstream MH
- 02 2055
- Dir. of Survey
- Upstream
- Length Surveyed
- 244.4 ft.
- Total Length
- 244.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 312I
- O&M Rating
- 101
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 101
Observation photos (2)

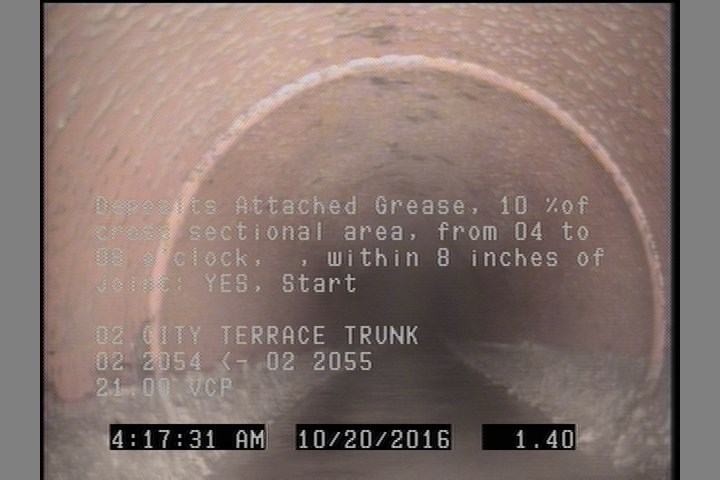

1.4 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

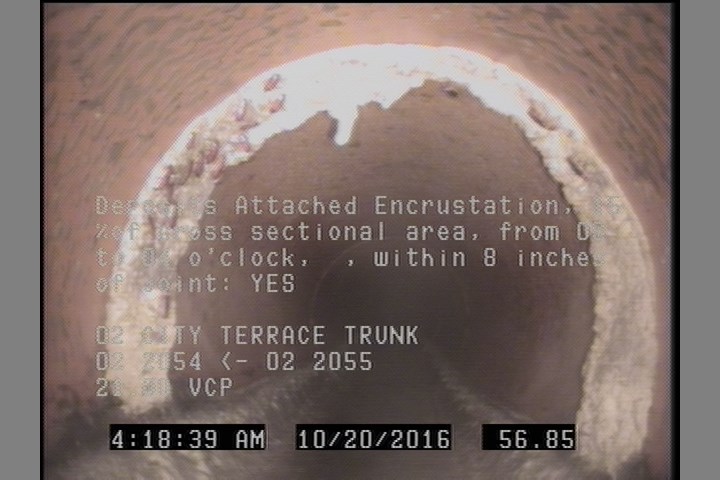

56.9 ft. - Deposits Attached Encrustation, 15 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 02 2054 |
| 243.3 | TBA | — |
| 0 | MWL | — |
| 244.4 | AMH | 02 2055 |
| 0 | MWM | — |
| 1.4 | DAGS | — |
| 244.4 | DAGS | — |
| 244.4 | TFA | — |
| 56.9 | DAE | — |
Properties (7)
- additional_info
- SC303735
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-21T04:15:29-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
- year_laid
- 27724
